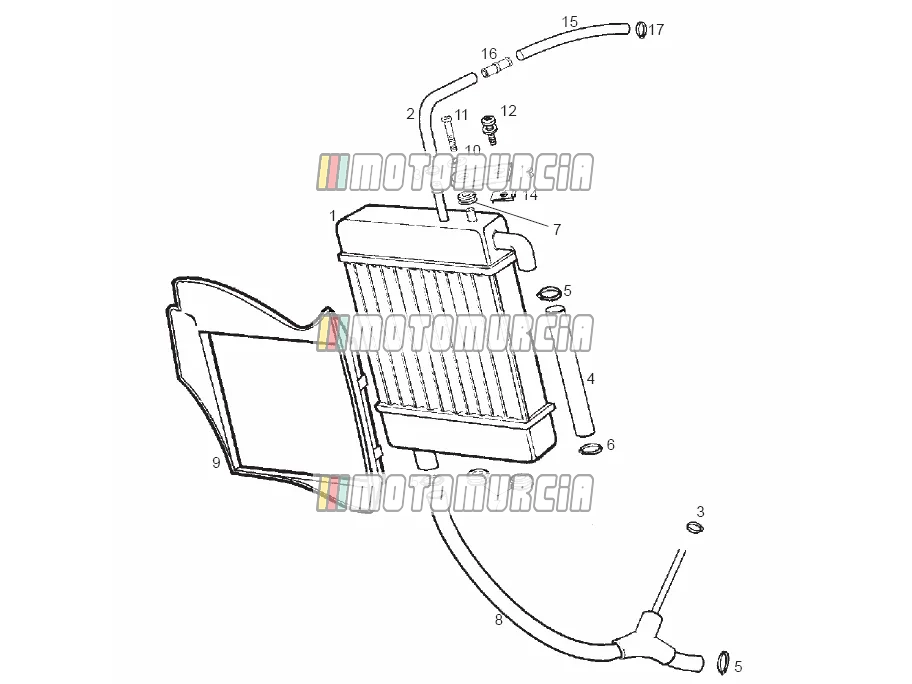

Exploded view — Cooling System

Products

1 Radiator - water cooler 00G03801011 No longer available

• 00G03801011 Radiator - water cooler
  No longer available

2 RADIATOR DRAIN TUBE-CONNECTOR 00G03801521 No longer available

• 00G03801521 RADIATOR DRAIN TUBE-CONNECTOR
  No longer available

3 Clamp Available 00G03801701

•

  Clamp Piaggio Group · 00G03801701 Available

  € 2,35

  Add to cart

4 TUBO BOCA ENTR.AGUA RADIAD.GP1 00G03802601 No longer available

• 00G03802601 TUBO BOCA ENTR.AGUA RADIAD.GP1
  No longer available

5 Clamp Backorder 00G03801091

•

  Clamping Spring Piaggio Group · 00G03801091 Backorder

  € 3,82

  Add to cart

6 Clamp Backorder 00H03801751

•

  Hose clamp Piaggio Group · 00H03801751 Backorder

  € 8,22

  Add to cart

7 Damper Available 00008915020

•

  Vibrations Damper Piaggio Group · 00008915020 Available

  € 2,49

  Add to cart

8 SCTO.TUBO CONEX.ENT.AG.CAR.GP1 00G03802951 No longer available

• 00G03802951 SCTO.TUBO CONEX.ENT.AG.CAR.GP1
  No longer available

9 RADIATOR GRID 00G03801891 No longer available

• 00G03801891 RADIATOR GRID
  No longer available

10 HOUSING EXHAUST PIPE SUPPORT 00D01500551 No longer available

• 00D01500551 HOUSING EXHAUST PIPE SUPPORT
  No longer available

11 Screw Available 319446

•

  Screw M6x10 Piaggio Group · 319446 Available

  € 2,77

  Add to cart

12 Screw Available 00D05910081

•

  Screw M6x16 Piaggio Group · 00D05910081 Available

  € 1,48

  Add to cart

13 UPPR RADIATOR SUPPORT LUG PRED 00G02200691 No longer available

• 00G02200691 UPPR RADIATOR SUPPORT LUG PRED
  No longer available

14 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

15 TUBO DRENAJE DPSTO-RACORD PRED 00G03800581 No longer available

• 00G03800581 TUBO DRENAJE DPSTO-RACORD PRED
  No longer available

16 COOLING PIPES UNION JOINT 00G03800731 No longer available

• 00G03800731 COOLING PIPES UNION JOINT
  No longer available

17 Clamp Available 00H03700131

•

  Clamping Spring Piaggio Group · 00H03700131 Available

  € 1,44

  Add to cart
