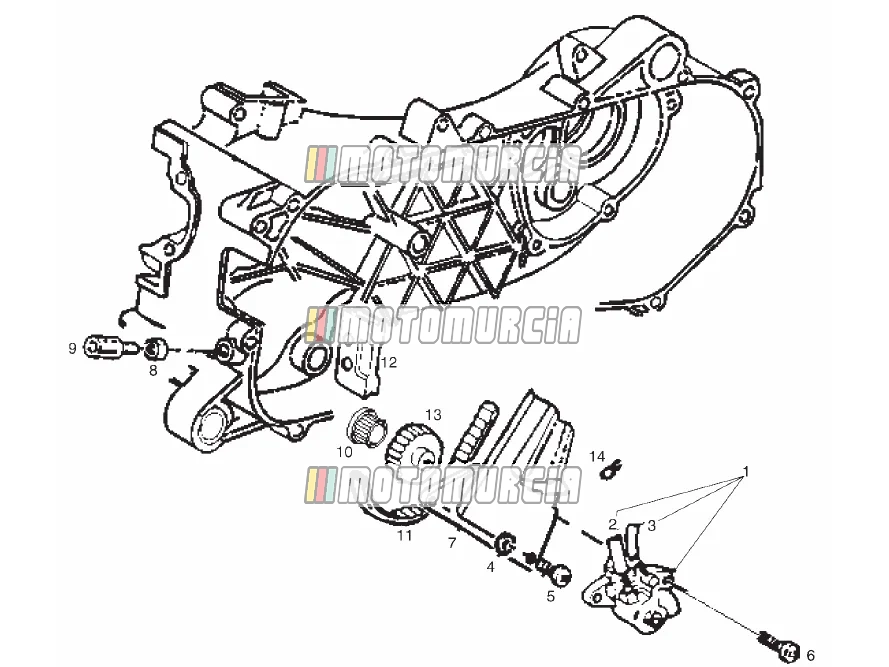

Exploded view — Oil Pump

Products

1 Oil pump Available 82605R

•

  Oil pump Piaggio Group · 82605R Available

  € 152,61

  Add to cart

2 Oil pipe Available CM101509

•

  Oil Pipe Piaggio Group · CM101509 Available

  € 27,65

  Add to cart

3 Oil outlet pipe Available CM101605

•

  Oil Hose Piaggio Group · CM101605 Available

  € 12,37

  Add to cart

4 Washer (spring) Available 006975

•

  Shim Piaggio Group · 006975 Available

  € 1,25

  Add to cart

5 Screw Available 015585

•

  Thread Screw M5x12 Piaggio Group · 015585 Available

  € 1,39

  Add to cart

6 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 Available

  € 0,99

  Add to cart

7 Plate Available 286163

•

  Plate Piaggio Group · 286163 Available

  € 6,03

  Add to cart

8 Nut Available 020106

•

  Standard nut M6 Piaggio Group · 020106 Available

  € 1,84

  Add to cart

9 Bolt - cable adjuster Available 146197

•

  Adjustment Screw Piaggio Group · 146197 Available

  € 1,88

  Add to cart

10 Toothed pulley Available 286158

•

  Gear Wheel Piaggio Group · 286158 Available

  € 13,75

  Add to cart

11 Toothed belt Available 286162

•

  Oil pump belt Piaggio Group · 286162 Available

  € 16,31

  Add to cart

12 Fairlead Available 287021

•

  Cable Guide Piaggio Group · 287021 Available

  € 3,79

  Add to cart

13 Oil pump gear, cpl. Available 289262

•

  Oil Pump Gear Piaggio Group · 289262 Available

  € 13,33

  Add to cart

14 Clamp Available 486149

•

  Hose clamp Piaggio Group · 486149 Available

  € 0,99

  Add to cart
