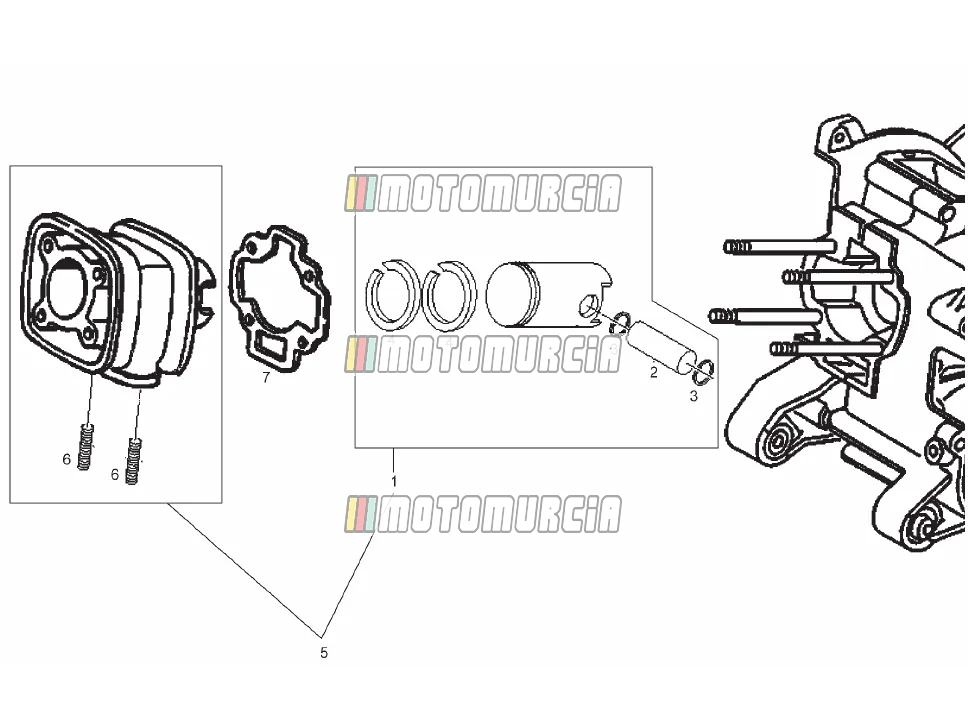

Exploded view — Piston

‹ Back to model

Derbi GP1 50 OPEN 2008

Derbi GP1 50 OPEN 2008

Piston

Products

1 Piston assy 4cat.(P) Available 4878020004

Piston Cat. P Piaggio Group · 4878020004 Available

€ 70,45
Piston Cat. M Piaggio Group · 4878020001 Available

€ 70,45
Piston Cat. O Piaggio Group · 4878020003 Available

€ 70,45
825182 Piston assy 1M
No longer available
Piston Cat. N Piaggio Group · 4878020002 Available

€ 70,45
825185 Piston kit (40,00 mm, 50ccm)
No longer available

2 Piston pin Available 239404

Piston Pin Ø 12,00 mm Piaggio Group · 239404 Available

€ 5,38

3 Snap ring - piston pin Available 239455

Piston Clip Piaggio Group · 239455 Available

€ 0,99

4 Gasket ring 40mm (D=40,00 mm, 50 ccm) Available 825416

Piston Ring Ø 40,00 mm, thickness: 1,40 mm Piaggio Group · 825416 Available

€ 6,72
Piston Ring 1. oversize Ø 40,20 mm Piaggio Group · 827853 Available

€ 18,74
Piston Ring 2. oversize Ø 40,40 mm Piaggio Group · 827854 Available

€ 34,19

5 Cylinder kit Available 833598

Cylinder Piaggio Group · 833598 Available

€ 244,01

6 Stud bolt (M6) Available 239397

Stud Screw M6x33 Piaggio Group · 239397 Available

€ 0,99

7 Gasket - cylinder base (0,75 mm) Available 829633

Cylinder Base Gasket thickness: 0,80 mm Piaggio Group · 829633 Available

€ 13,71
Cylinder Base Gasket thickness: 0,50 mm Piaggio Group · 827303 Available

€ 12,75
Cylinder Base Gasket thickness: 0,40 mm Piaggio Group · 827301 Available

€ 12,37
