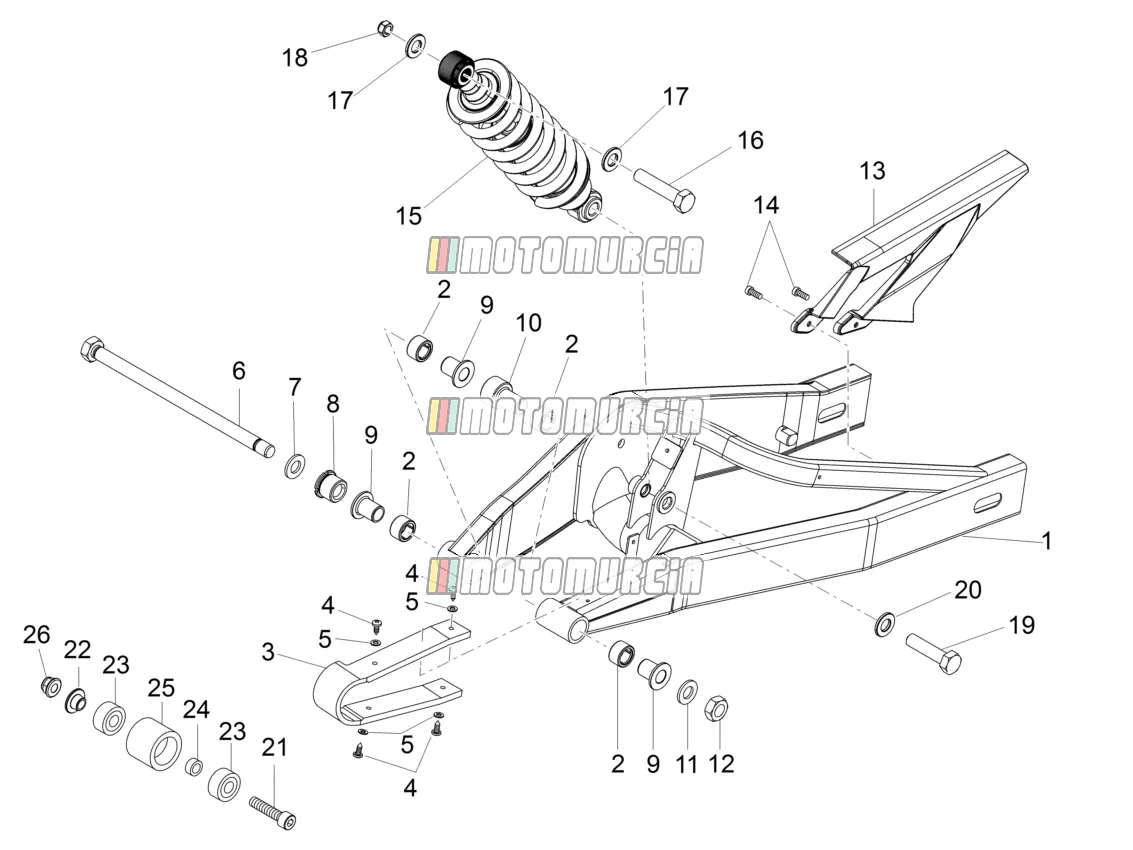

Exploded view — Swing Arm - Shock Absorber
‹ Back to model
Derbi GPR 50 2T 2013
Products
1 Swing arm, black
-
89947400WN6 Swing arm, blackNo longer available
2 Needle bearing Available
-
Needle bearing HK 18/14-RS, 18x24x14 mm Piaggio Group · 600161 Available · Shipped in 3–5 working days€ 7,41
3 Guard chain sliding shoe Available
-
Chain Guide Piaggio Group · 00H01804331 Available · Shipped in 3–5 working days€ 15,42
4 Screw Backorder
-
Oval Head Screw Piaggio Group · AP8150246 Backorder · Shipped in 2–4 weeks€ 4,95
5 Washer Available
-
- Colour: Limited Edition green 2013
- Old version
- Rear disc brake
- Year of manufacture: 2012
- Year of manufacture: 2013
Shim Piaggio Group · AP8150177 Available · Shipped in 3–5 working days€ 0,99
6 Pin Available
-
Bolts Piaggio Group · 00H00305411 Available · Shipped in 3–5 working days€ 20,04
7 Washer Available
-
- Year of manufacture: 2011
Shim Piaggio Group · 00032015000 Available · Shipped in 3–5 working days€ 2,77
8 Nut Available
-
Standard nut Piaggio Group · 865615 Available · Shipped in 3–5 working days€ 19,98
9 LH spacer Available
-
Sleeve Piaggio Group · 866756 Available · Shipped in 3–5 working days€ 30,38
10 Rear sw.arm piv.bush Available
-
Sleeve Piaggio Group · 866062 Available · Shipped in 3–5 working days€ 29,21
12 Nut Available
-
- SX version
- Year of manufacture: 2012
- Year of manufacture: 2013
Standard nut right hand thread Piaggio Group · 00H00300672 Available · Shipped in 3–5 working days€ 1,26
13 Guard chain sliding shoe
-
00H01509181 Guard chain sliding shoeNo longer available
14 Screw Available
-
Screw Piaggio Group · 00016041301 Available · Shipped in 3–5 working days€ 1,48
15 Rear shock absorber Available
-
Shocks rear Piaggio Group · 8656670001 Available · Shipped in 3–5 working days€ 245,93
16 Screw Available
-
Screw M12 Piaggio Group · 00H00303892 Available · Shipped in 3–5 working days€ 8,91
18 Nut Available
-
Standard nut M12x175 Piaggio Group · 00023112000 Available · Shipped in 3–5 working days€ 1,48
19 Screw 12M175X50 Available
-
Screw M12 Piaggio Group · 00H00302892 Available · Shipped in 3–5 working days€ 8,57
20 Clearance bush Available
-
Shim Piaggio Group · 00001213190 Available · Shipped in 3–5 working days€ 5,83
21 10 - Screw Available
-
- Country: United States of America
Screw M8x45 Piaggio Group · AP8150164 Available · Shipped in 3–5 working days€ 2,18
22 Washer Available
-
Washer Piaggio Group · 847183 Available · Shipped in 3–5 working days€ 1,48
23 Bearing Available
-
Ball bearing NTN608, 8x22x7 mm Piaggio Group · AP9100175 Available · Shipped in 3–5 working days€ 12,80
24 Spacer Available
-
- Colour: Special Edition
Sleeve Piaggio Group · AP9100174 Available · Shipped in 3–5 working days€ 2,47
25 Black chain guide roller Available
-
Chain Guide Piaggio Group · AP9100173 Available · Shipped in 3–5 working days€ 13,89
26 Nut Available
-
- Colour: Tuscany Tibet 2003
Standard nut M8 Piaggio Group · AP8152300 Available · Shipped in 3–5 working days€ 2,35
