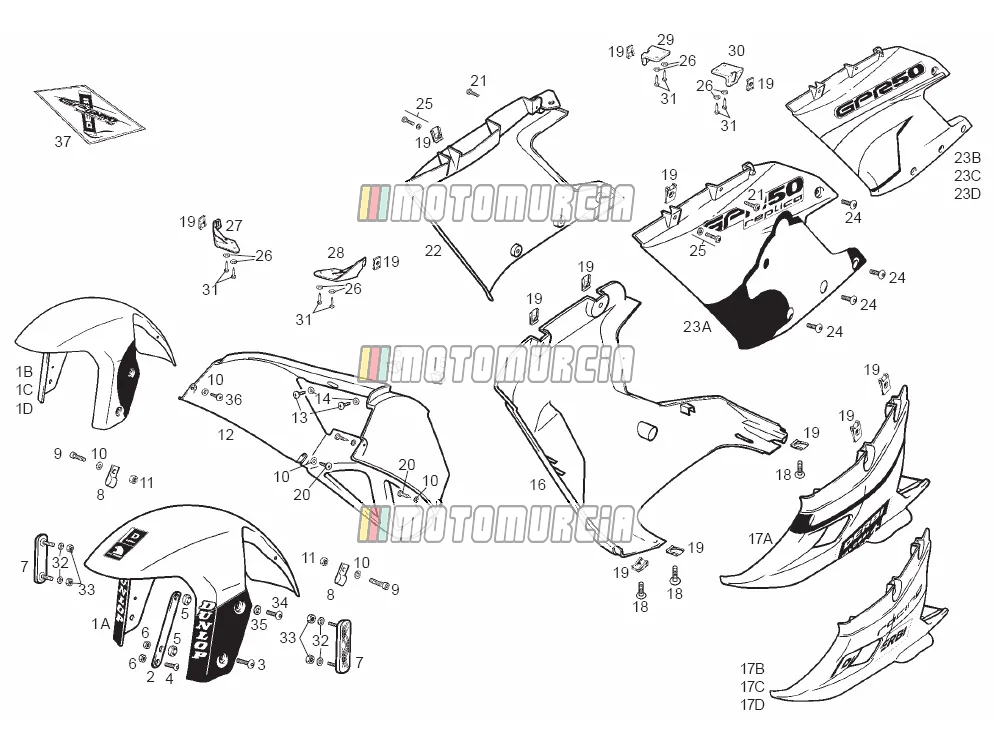

Exploded view — Frame

Products

1 Front mudguard 86295400WN25 No longer available

• 86295400WN25 Front mudguard
  No longer available
• 00H007134315 SCTO.GUARDB.DLNTRO.GPR 80 CUP
  No longer available
•

  Mudguard front, white Piaggio Group · 00H007144315 Backorder

  € 242,00

  Add to cart
• 00H007144325 SCTO.GUARDB.DLN.PIST.GPR R 50
  No longer available

2 Front mudguard support Available 867258

•

  Bracket for mudguard, front Piaggio Group · 867258 Available

  € 14,65

  Add to cart

3 Screw Available 00H01503701

•

  Screw Piaggio Group · 00H01503701 Available

  € 5,83

  Add to cart

4 Screw Available 00008062000

•

  Screw Piaggio Group · 00008062000 Available

  € 2,54

  Add to cart

5 Bush Available 00H00700321

•

  Sleeve Piaggio Group · 00H00700321 Available

  € 5,15

  Add to cart

6 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

7 Reflector, amber Available AP8124719

•

  Reflector yellow Piaggio Group · AP8124719 Available

  € 17,01

  Add to cart

8 Fairlead Available 864454

•

  Clamp Piaggio Group · 864454 Available

  € 2,63

  Add to cart

9 Screw Available 00008051200

•

  Screw Piaggio Group · 00008051200 Available

  € 1,60

  Add to cart

10 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

11 Nut Available 00000023050

•

  Standard nut Piaggio Group · 00000023050 Available

  € 2,69

  Add to cart

12 FRONT MUDGUARD COVER Available 00H01800161

•

  Radiator Cowling Piaggio Group · 00H01800161 Available

  € 12,10

  Add to cart

13 Screw Available 00011051401

•

  Thread Screw 5x14 mm Piaggio Group · 00011051401 Available

  € 1,48

  Add to cart

15 Cover Backorder 00H01800171

•

  Screw Plug Piaggio Group · 00H01800171 Backorder

  € 4,42

  Add to cart

16 R.H. DW. BODY SIDE 86295100WN05 No longer available

• 86295100WN05 R.H. DW. BODY SIDE
  No longer available
• 00H01524231 SCTO.CARN.INF.LT.DR.GPR 50 R
  No longer available
• 00H015252315 OMB GPR50 BLACK RIGHT LOWER FAIRING
  No longer available
• 00H015252325 SCTO.CAR.INF.DR.PIST.GPR R 50
  No longer available

17 SCTO.CAR.INF.IZ.PIST.GPR R 50 00H049236425 No longer available

• 00H049236425 SCTO.CAR.INF.IZ.PIST.GPR R 50
  No longer available
• 86295200WN05 L.H. DW.BODY SIDE
  No longer available
• 00H04922641 SCTO.CARN.INF.LT.IZ.GPR 50 R
  No longer available
• 00H049236415 SCTO.CAR.INF.IZ.BL.AJ.GPR R 50
  No longer available

18 Screw (6x14) Available 00H06300861

•

  Screw M6x14 Piaggio Group · 00H06300861 Available

  € 1,44

  Add to cart

19 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

20 Screw Available 00011031401

•

  Screw 3,6x14 mm Piaggio Group · 00011031401 Available

  € 1,48

  Add to cart

21 Screw 3,6x25 Available 00011032501

•

  Screw 3,6x25 mm Piaggio Group · 00011032501 Available

  € 2,69

  Add to cart

22 R-SCTO.TAPA LAT.SUP.DR.GRP05 R 00H02266371C No longer available

• 00H02266371C R-SCTO.TAPA LAT.SUP.DR.GRP05 R
  No longer available
• 86294900WN25 R.H. BODY SIDE
  No longer available
• 00H022693715 SCTO.LAT.SUP.DR.BL.AJ.GPR R 50
  No longer available
• 00H022693725 SCTO.LAT.SUP.DR.PIST.GPR R 50
  No longer available

23 R-SCTO.TAPA LAT.SUP.IZ.GPR05 R 00H02203381C5 No longer available

• 00H02203381C5 R-SCTO.TAPA LAT.SUP.IZ.GPR05 R
  No longer available
• 00H022043825 SCTO.LAT.SUP.IZ.PIST.GPR R 50
  No longer available
• 00H022043815 SCTO.LAT.SUP.IZ.BL.AJ.GPR R 50
  No longer available
• 86295000WN25 L.H. BODY SIDE
  No longer available

25 Screw Backorder 00G06800021

•

  Screw M6 Piaggio Group · 00G06800021 Backorder

  € 5,60

  Add to cart

26 Washer Available 00031105000

•

  Washer Piaggio Group · 00031105000 Available

  € 1,72

  Add to cart

27 FRONTRH COVER SUP. Backorder 00H04613841

•

  Lid, right Piaggio Group · 00H04613841 Backorder

  € 8,97

  Add to cart

28 FRONT LH COVER SUP. Backorder 00H01504261

•

  Lid, left Piaggio Group · 00H01504261 Backorder

  € 8,97

  Add to cart

29 REAR RH COVER SUP. Backorder 00H02200461

•

  Bracket right Piaggio Group · 00H02200461 Backorder

  € 12,86

  Add to cart

30 REAR LH COVER SUP. Backorder 00H05902521

•

  Bracket left Piaggio Group · 00H05902521 Backorder

  € 12,86

  Add to cart

31 Self-tap screw 4,8x16 Available 00000011416

•

  Thread Screw 4,8x16 mm Piaggio Group · 00000011416 Available

  € 1,48

  Add to cart

32 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

33 Nut Backorder 00000023040

•

  Standard nut Piaggio Group · 00000023040 Backorder

  € 2,77

  Add to cart

34 Screw Available 00H01501701

•

  Screw Piaggio Group · 00H01501701 Available

  € 5,83

  Add to cart

35 Washer 00A02100591 No longer available

• 00A02100591 Washer
  No longer available

36 Self-tap screw 4,2x13 Backorder 00011241300

•

  Thread Screw Piaggio Group · 00011241300 Backorder

  € 2,49

  Add to cart

37 NAMEPLATE Backorder 86187700WN2

•

  Decal kit Piaggio Group · 86187700WN2 Backorder

  € 166,54

  Add to cart
•

  Decal kit Piaggio Group · 86187700WB1 Backorder

  € 166,54

  Add to cart
• 86187700WV0 KIT DECALS GPR 50 R 06
  No longer available
• 00H05173651 R-JUEGO CALCAS GPR 50CC REPL05
  No longer available
