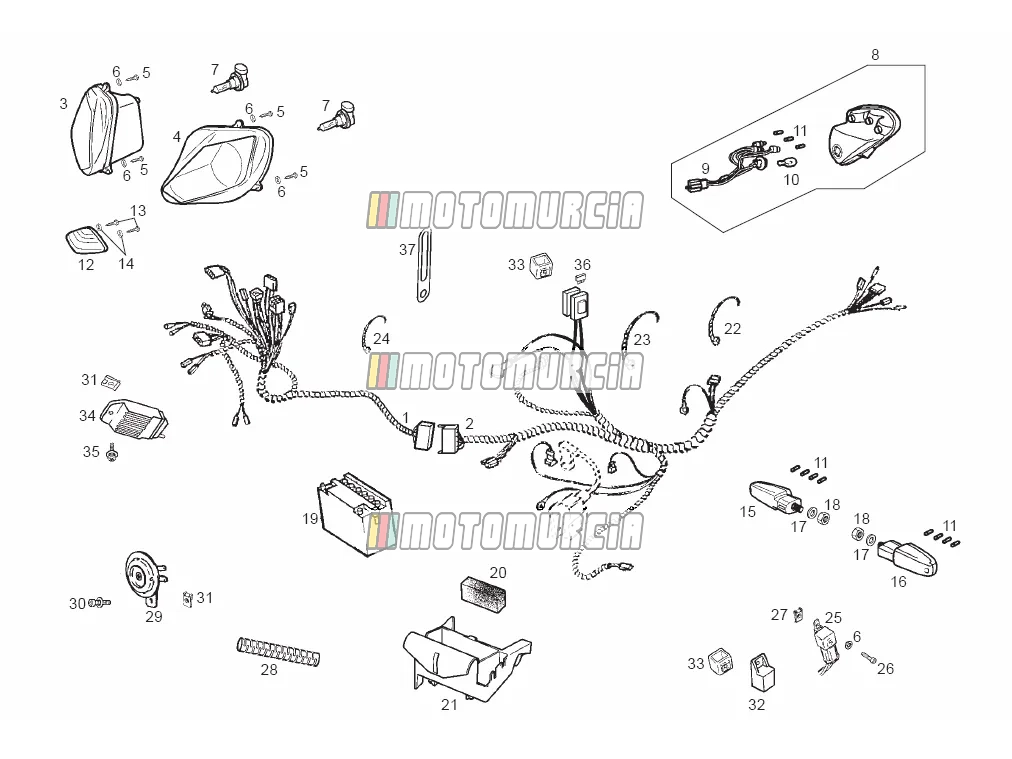

Exploded view — Electrical System

Products

1 ELECTRICAL INSTALATIONS ASSY. 00H02304121 No longer available

• 00H02304121 ELECTRICAL INSTALATIONS ASSY.
  No longer available

2 Main wiring harness 86118R No longer available

• 86118R Main wiring harness
  No longer available
• 00H05704051 INSTAL.ELECT.TRAS.GPR 50CC ´06
  No longer available

3 RH light unit Backorder 00G01026011

•

  Head Lights Piaggio Group · 00G01026011 Backorder

  € 126,12

  Add to cart

4 RH light unit 00G01027011 No longer available

• 00G01027011 RH light unit
  No longer available

5 Screw Available 00011031801

•

  Thread Screw 3,6x18 mm Piaggio Group · 00011031801 Available

  € 1,44

  Add to cart

6 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

7 Lamp H8 (H8 12V 35W) Available 00H01004131

•

  Bulbs Halogen, H8, 12 V, 35 W Piaggio Group · 00H01004131 · Quantity needed: 2 Available

  € 23,74

  Add to cart

8 Taillight assy. 00H01011321 No longer available

• 00H01011321 Taillight assy.
  No longer available

9 Taillight wiring harn. Backorder 00H01003951

•

  Wiring Harness Piaggio Group · 00H01003951 Backorder

  € 43,73

  Add to cart

10 Lamp W16W 12V 16W Available AP8127490

•

  Bulbs Bulb, 12 V, 16 W Piaggio Group · AP8127490 Available

  € 5,78

  Add to cart

11 Bulb (12V 2,31W) 00H01001371 No longer available

• 00H01001371 Bulb (12V 2,31W) Quantity needed: 3
  No longer available

12 GLASS 00H05701471 No longer available

• 00H05701471 GLASS
  No longer available

13 Screw Available 00011031401

•

  Screw 3,6x14 mm Piaggio Group · 00011031401 Available

  € 1,48

  Add to cart

14 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

15 Turn indicator Right Backorder 00H01700531

•

  Indicator front left / rear right Piaggio Group · 00H01700531 Backorder

  € 34,34

  Add to cart

16 Turn indicator Left Available 00H01700541

•

  Indicator front right / rear left Piaggio Group · 00H01700541 Available

  € 30,01

  Add to cart

17 Washer Available 00034001002

•

  Shim Piaggio Group · 00034001002 Available

  € 1,54

  Add to cart

18 Nut Available 00021010002

•

  Standard nut Piaggio Group · 00021010002 Available

  € 1,44

  Add to cart

19 Battery 32YTX5LBS No longer available

• 32YTX5LBS Battery
  No longer available

20 Vibration-damping rubber Backorder 00H01803471

•

  Vibrations Damper Piaggio Group · 00H01803471 Backorder

  € 4,23

  Add to cart

21 Battery holder Backorder 00H03302551

•

  Battery Box Piaggio Group · 00H03302551 Backorder

  € 18,45

  Add to cart

23 Hose clamp 290X4,8 Backorder 00F00900531

•

  Clamp 290x4,8 mm Piaggio Group · 00F00900531 Backorder

  € 5,60

  Add to cart

24 Hose clamp Available 00D00900531

•

  Clamp Piaggio Group · 00D00900531 Available

  € 1,65

  Add to cart

25 Relay 00H05700711 No longer available

• 00H05700711 Relay
  No longer available

26 Screw Available 00012051200

•

  Screw M5 Piaggio Group · 00012051200 Available

  € 1,72

  Add to cart

27 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

28 Guard 00H01000541 No longer available

• 00H01000541 Guard
  No longer available

29 Horn 00H01005311 No longer available

• 00H01005311 Horn
  No longer available

30 Screw Backorder 00G06800021

•

  Screw M6 Piaggio Group · 00G06800021 Backorder

  € 5,60

  Add to cart

31 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

32 Relay - starter Available 58115R

•

  Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

  € 24,91

  Add to cart

33 Relay rubber Backorder 942577

•

  Rubber Piaggio Group · 942577 Backorder

  € 13,94

  Add to cart

34 Voltage regulator Available 898891

•

  Regulator Piaggio Group · 898891 Available

  € 94,66

  Add to cart

35 Screw Available 00D05910081

•

  Screw M6x16 Piaggio Group · 00D05910081 Available

  € 1,48

  Add to cart

36 Fuse (7,5A) Backorder 00H01001911

•

  Fuse 7,5 A Piaggio Group · 00H01001911 Backorder

  € 15,67

  Add to cart

37 Plate 00G03702181 No longer available

• 00G03702181 Plate
  No longer available
