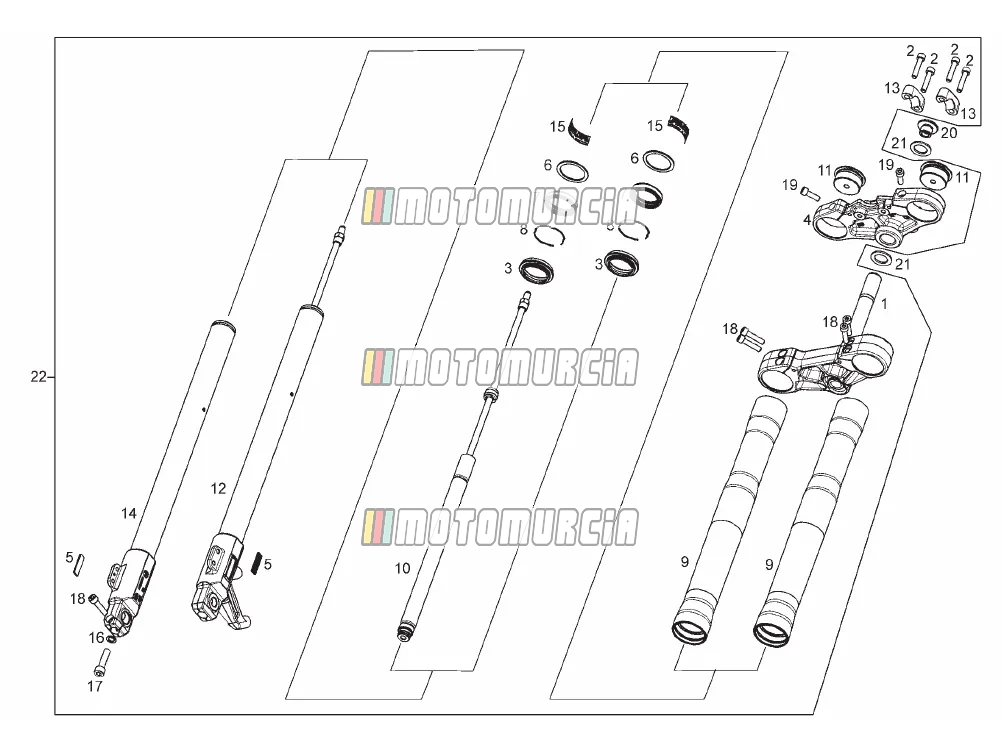

Exploded view — Front Fork

Products

1 INNER TUBES SUPPORT 865479 No longer available

• 865479 INNER TUBES SUPPORT
  No longer available

2 Screw Backorder 863143

•

  Allen screw M8x40 Piaggio Group · 863143 Backorder

  € 11,56

  Add to cart

3 Dust cover 865463 No longer available

• 865463 Dust cover
  No longer available

4 FORK UPPER SUPPORT 865480 No longer available

• 865480 FORK UPPER SUPPORT
  No longer available

5 Decal and plate set Paioli Backorder 865465

•

  Decal Piaggio Group · 865465 Backorder

  € 7,87

  Add to cart

6 Washer 865466 No longer available

• 865466 Washer
  No longer available

7 Fork oil seal Available 896516

•

  Shaft Seal Piaggio Group · 896516 Available

  € 48,51

  Add to cart

8 Snap ring Available 865468

•

  Snap-in Ring Piaggio Group · 865468 Available

  € 8,57

  Add to cart

9 LEFT STEM 865469 No longer available

• 865469 LEFT STEM
  No longer available

10 R-TUBO HIDRAULICO MULHACEN CAFÉ 865478 No longer available

• 865478 R-TUBO HIDRAULICO MULHACEN CAFÉ
  No longer available

11 Fork tube cap 865471 No longer available

• 865471 Fork tube cap
  No longer available

12 R-CTO TUBO PRINCIPAL C/PUNTERA IZQ CAFÉ 865477 No longer available

• 865477 R-CTO TUBO PRINCIPAL C/PUNTERA IZQ CAFÉ
  No longer available

13 Clamp Backorder 00H00203741

•

  Mount Piaggio Group · 00H00203741 Backorder

  € 43,58

  Add to cart

14 R-CTO HIDRAULICO C/PUNTERA DRD EVO 865474 No longer available

• 865474 R-CTO HIDRAULICO C/PUNTERA DRD EVO
  No longer available

15 Sleeve decal 865475 No longer available

• 865475 Sleeve decal
  No longer available

16 Washer 863159 No longer available

• 863159 Washer
  No longer available

17 Screw (spec) Available 865476

•

  Screw M10x40 Piaggio Group · 865476 Available

  € 11,37

  Add to cart

18 Screw Backorder 863149

•

  Allen screw M8x35 Piaggio Group · 863149 Backorder

  € 8,57

  Add to cart

19 R-TORNILLO M8X25 Available 864521

•

  Screw M8x25 Piaggio Group · 864521 Available

  € 6,33

  Add to cart

20 Nut Available 865482

•

  Standard nut Piaggio Group · 865482 Available

  € 53,13

  Add to cart

21 STEERING STUD WASHER 35X25X1 G 00H02001721 No longer available

• 00H02001721 STEERING STUD WASHER 35X25X1 G
  No longer available

22 CTO.HORQU.DIRECT.ALU.MUL125 CAFE 8648040001 No longer available

• 8648040001 CTO.HORQU.DIRECT.ALU.MUL125 CAFE
  No longer available
