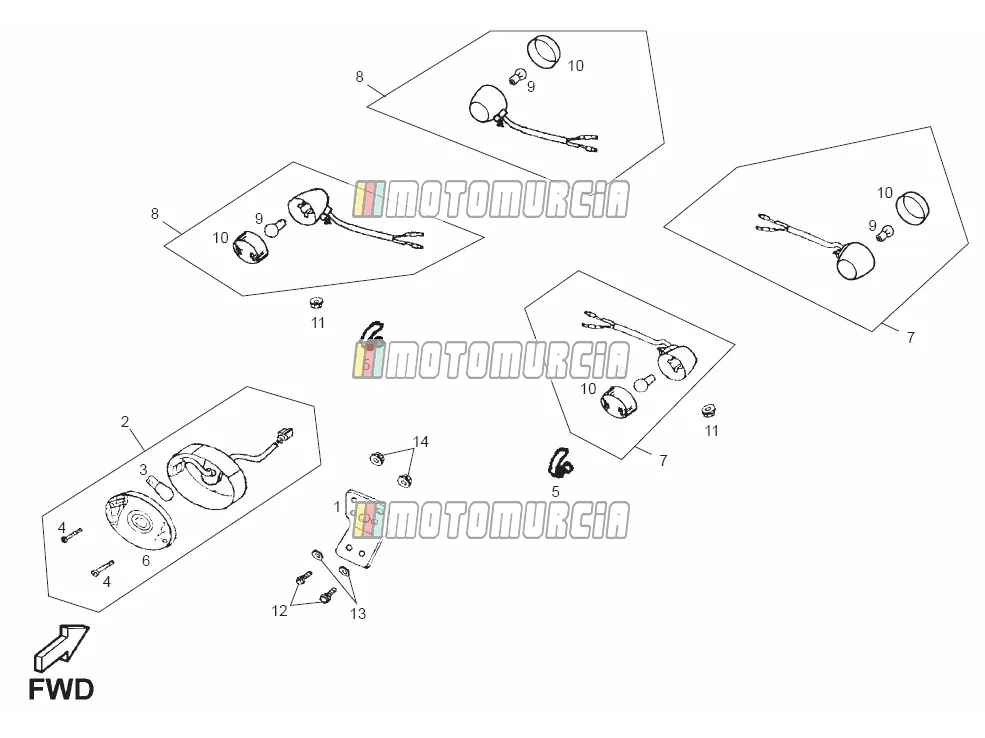

Exploded view — Flasher Unit

Products

1 TAIL LIGHT FIX BRACKET(REV.1) 00Q01000351 No longer available

• 00Q01000351 TAIL LIGHT FIX BRACKET(REV.1)
  No longer available

2 Taillight assy. 00Q01001011 No longer available

• 00Q01001011 Taillight assy.
  No longer available

3 BULB, TAILLIGHT/STOP 00E01020371 No longer available

• 00E01020371 BULB, TAILLIGHT/STOP
  No longer available

4 PAN PHILLIPS BOLT 00Q01000591 No longer available

• 00Q01000591 PAN PHILLIPS BOLT
  No longer available

5 CABLE CLAMP 00Q00900531 No longer available

• 00Q00900531 CABLE CLAMP
  No longer available

6 Taillight lens 00Q01000341 No longer available

• 00Q01000341 Taillight lens
  No longer available

7 R.SIGNAL ASS'Y (E-MARK) 00Q01700301 No longer available

• 00Q01700301 R.SIGNAL ASS'Y (E-MARK)
  No longer available

8 L.SIGNAL ASS'Y(E-MARK) 00Q01700391 No longer available

• 00Q01700391 L.SIGNAL ASS'Y(E-MARK)
  No longer available

9 Bulb (12V 10W BAU15S) Available 584332

•

  Bulbs Bulb, 12 V, 10 W, orange Piaggio Group · 584332 Available

  € 4,79

  Add to cart

10 SIGNAL COVER 00Q01700891 No longer available

• 00Q01700891 SIGNAL COVER
  No longer available

11 Nut Backorder 00026005000

•

  Standard nut Piaggio Group · 00026005000 Backorder

  € 1,48

  Add to cart

12 HEX. HEAD SCREW 6M100X12D933 00002061200 No longer available

• 00002061200 HEX. HEAD SCREW 6M100X12D933
  No longer available

13 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

14 HEX FLANGE NUT WITH SERRATION 00Q04200261 No longer available

• 00Q04200261 HEX FLANGE NUT WITH SERRATION
  No longer available
