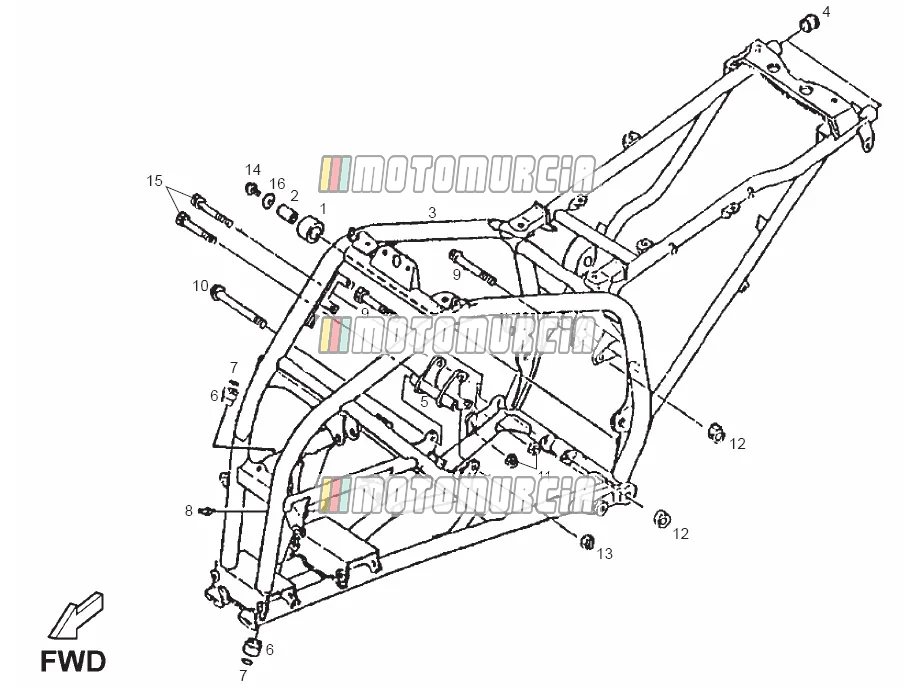

Exploded view — Frame

Products

1 TENSIONER 00Q25001140 No longer available

• 00Q25001140 TENSIONER
  No longer available

2 BUSH 00Q25001141 No longer available

• 00Q25001141 BUSH
  No longer available

3 FRAME COMP 00Q20001117 No longer available

• 00Q20001117 FRAME COMP
  No longer available

4 PLUG, SPECIAL SHAPE 00Q25001151 No longer available

• 00Q25001151 PLUG, SPECIAL SHAPE
  No longer available

5 ENGINE HANGER F 00Q20001118 No longer available

• 00Q20001118 ENGINE HANGER F
  No longer available

6 BUSH, SOLID 00Q25001224 No longer available

• 00Q25001224 BUSH, SOLID
  No longer available

7 O'RING 2.4*14.8 00Q25001356 No longer available

• 00Q25001356 O'RING 2.4*14.8
  No longer available

8 NIPPLE, GREASE M6*P1.0 00Q25001390 No longer available

• 00Q25001390 NIPPLE, GREASE M6*P1.0
  No longer available

9 Screw 00Q25001402 No longer available

• 00Q25001402 Screw
  No longer available

10 Screw 00Q20001162 No longer available

• 00Q20001162 Screw
  No longer available

11 Nut 00Q20001168 No longer available

• 00Q20001168 Nut
  No longer available

12 Nut 00Q25001448 No longer available

• 00Q25001448 Nut
  No longer available

13 Nut 00Q25001450 No longer available

• 00Q25001450 Nut
  No longer available

14 Screw 00Q25001505 No longer available

• 00Q25001505 Screw
  No longer available

15 Screw 00Q20001179 No longer available

• 00Q20001179 Screw
  No longer available

16 WASHER, PLATE 8.7*24*2.0 00Q25001534 No longer available

• 00Q25001534 WASHER, PLATE 8.7*24*2.0
  No longer available
