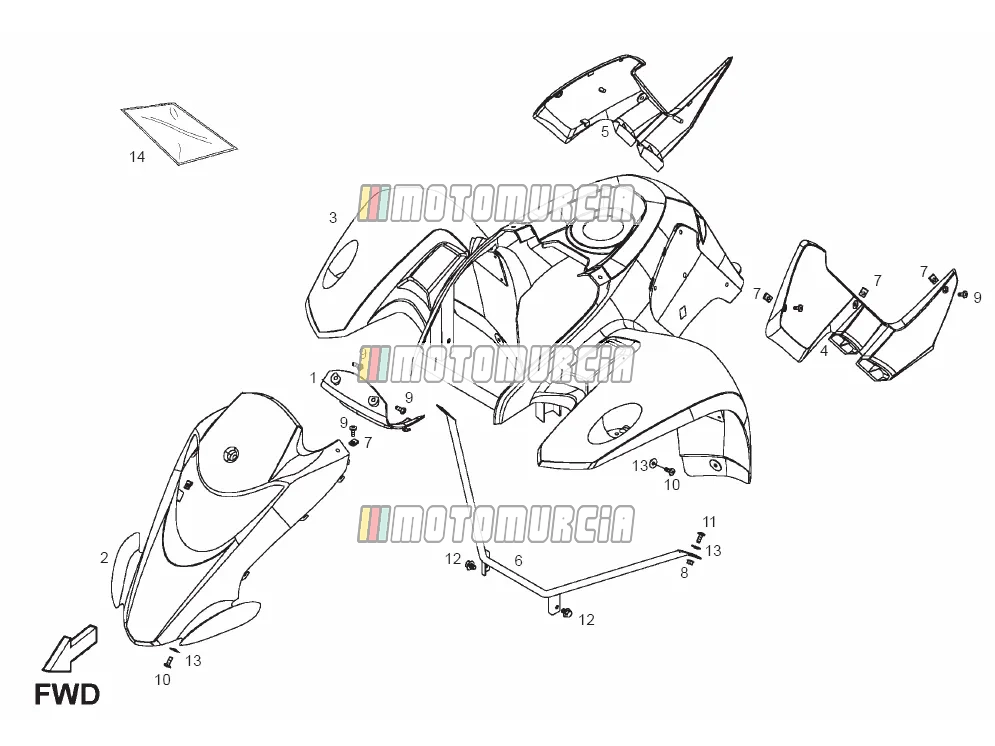

Exploded view — Frame

Products

1 PANEL, FRONT INSIDE COVER 00Q25001227 No longer available

• 00Q25001227 PANEL, FRONT INSIDE COVER
  No longer available

2 PANEL, FRONT 00Q25001228 No longer available

• 00Q25001228 PANEL, FRONT
  No longer available

3 COVER, FRONT 00Q25001229 No longer available

• 00Q25001229 COVER, FRONT
  No longer available

4 SIDE COVER L 00Q25001231 No longer available

• 00Q25001231 SIDE COVER L
  No longer available

5 SIDE COVER R 00Q25001232 No longer available

• 00Q25001232 SIDE COVER R
  No longer available

6 STAY, FENDER LOWER 00Q25001235 No longer available

• 00Q25001235 STAY, FENDER LOWER
  No longer available

7 Clip nuts 00Q25001435 No longer available

• 00Q25001435 Clip nuts
  No longer available

8 Nut 00Q25001455 No longer available

• 00Q25001455 Nut
  No longer available

9 SCREW, TAPPING 00Q25001464 No longer available

• 00Q25001464 SCREW, TAPPING
  No longer available

10 Screw 00Q25001484 No longer available

• 00Q25001484 Screw
  No longer available

11 Screw 00Q25001485 No longer available

• 00Q25001485 Screw
  No longer available

12 Screw 00Q25001496 No longer available

• 00Q25001496 Screw
  No longer available

13 WASHER, FLANGE 00Q25001562 No longer available

• 00Q25001562 WASHER, FLANGE
  No longer available

14 Sticker - Decal 00Q25001608 No longer available

• 00Q25001608 Sticker - Decal
  No longer available
