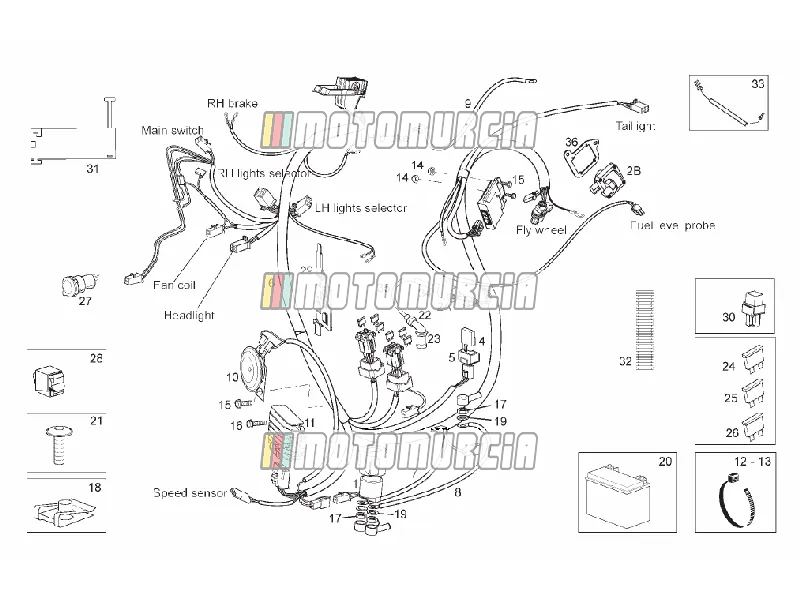

Exploded view — Electrical System I

‹ Back to model

Derbi Rambla 300 2010

Products

Position: 1 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

1 Relay - starter Available AP81129276

Starting Relay 12 V, 100 A Piaggio Group · AP81129276 Available · Shipped in 3–5 working days

€ 73,97

Alternatives from other brands

Starter Solenoid Switch 12V WAI · 67813 Backorder · Shipped in 2–5 weeks

€ 18,02

Start Relay Yamaha XV 535 Athena · S410485402008 Backorder · Shipped in 2–5 weeks

€ 36,30

2 Ignition coil Available 58120R

- 400 cc version
- 500 cc version
Ignition Coil Piaggio Group · 58120R Available · Shipped in 3–5 working days

€ 59,25

4 Relay - starter Available AP8224462

Starting Relay 12 V, 30 A Piaggio Group · AP8224462 Available · Shipped in 3–5 working days

€ 25,36

5 Rubber spacer * Available AP8220283

- "DITECH" engine with direct fuel injection
- Injection version (C361M)
- State police version
Bracket Piaggio Group · AP8220283 Available · Shipped in 3–5 working days

€ 3,03

6 Main wiring harness 896249 No longer available

896249 Main wiring harness
No longer available

7 Relay battery wiring AP8127558 No longer available

AP8127558 Relay battery wiring
No longer available

8 Relay-starter motor cable AP8127145 No longer available

AP8127145 Relay-starter motor cable
No longer available

9 Ground-battery lead AP8127556 No longer available

AP8127556 Ground-battery lead
No longer available

10 Horn Backorder AP8127337

Horn Piaggio Group · AP8127337 Backorder · Shipped in 2–4 weeks

€ 24,20

11 Voltage regulator Available 639110

Regulator Piaggio Group · 639110 Available · Shipped in 3–5 working days

€ 204,45

Alternatives from other brands

Voltage Regulator / Rectifier WAI · PMC1002 Available · Shipped in 4–7 working days

€ 97,65

Voltage Regulator PIAGGIO Tourmax · RGU701 Available · Shipped in 4–7 working days

€ 121,00

REGULATOR, 67 3916 GHMparts · ESR916 Available · Shipped in 4–7 working days

€ 146,35

12 Hose clamp 4.5X280 Available AP8120657

Clamp Piaggio Group · AP8120657 Available · Shipped in 3–5 working days

€ 2,18

13 Black hose 180x4,5 Available AP8120416

- Country: Canada
- Country: United States of America
Clamp black, 178x4 mm Piaggio Group · AP8120416 Available · Shipped in 3–5 working days

€ 1,43

14 Nut Available AP8152299

- Colour: Limited Edition green 2013
- Colour: Public Authorities China
- Colour: Tuscany Tibet 2003
Collar nut M6, self-locking Piaggio Group · AP8152299 Available · Shipped in 3–5 working days

€ 2,18

15 Screw Available 598839

- Colour: Off Black 2009 (s.t.890773)
- Colour: Off Black 2010 (s.t.895847)
- Country: China
- Country: Japan
- Country: United States of America
Flanged Screw M6x16 Piaggio Group · 598839 Available · Shipped in 3–5 working days

€ 1,48

16 Screw Available AP8152280

Flanged Screw M6x25 Piaggio Group · AP8152280 Available · Shipped in 3–5 working days

€ 2,77

17 Nut Available AP8150026

- ABS version
- Engine with carburettor
- Standard version
- Year of manufacture: 2002
- Year of manufacture: 2003
- Country: Japan
- Country: United States of America
Standard nut Piaggio Group · AP8150026 Available · Shipped in 3–5 working days

€ 1,25

18 Clip nuts (M6) Available 254485

- Year of manufacture: 2012
- Year of manufacture: 2013
Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

€ 2,04

19 Washer (spring) Available 658830

- Year of manufacture: 2012
- Year of manufacture: 2013
- Country: Canada
- Country: China
- Country: United States of America
Washer Piaggio Group · 658830 Available · Shipped in 3–5 working days

€ 2,00

20 Battery Available 583158

- ABS version
- Country: China
- Country: South Korea
- Country: Taiwan
Batterie YTX12-BS, 12 V, 10 A, Maintenance-Free / MF, 150x87x130 mm Piaggio Group · 583158 Available · Shipped in 3–5 working days

€ 144,90

Alternatives from other brands

Battery YTX12-BS Yuasa · YTX12BSCP Available · Shipped in 3–5 working days

€ 91,92

LTX12-BS 51012 AGM Landport · MALTX12BS Available · Shipped in 4–7 working days

€ 68,49

(CP) Nitro · NTX12BS Available · Shipped in 4–7 working days

€ 68,96
1R000318 Battery

Batterie PTX12-BS, 12 V, 10 A, Maintenance-Free / MF, with acid pack, 150x87x130 mm Piaggio Group · 1R000318 Available · Shipped in 3–5 working days

€ 101,79

Battery Piaggio Group · 1R000318 Available · Shipped in 3–5 working days

€ 101,79

21 Screw Available AP8152246

- Colour: Public Authorities China
- Business
- Business version
Screw M6x16 Piaggio Group · AP8152246 Available · Shipped in 3–5 working days

€ 4,37

22 Spark plug cap Available 293845

- 400 cc version
- 500 cc version
Spark Plug Connector Piaggio Group · 293845 Available · Shipped in 3–5 working days

€ 27,37

23 Spark.plug protection clamp Available 641219

641219 Spark.plug protection clamp

Covering Cap Piaggio Group · 641643 ↻ Replaces 641219, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

€ 9,90

24 Fuse (20A) 495357 No longer available

495357 Fuse (20A)
- Country: Australia
- Country: Europe
- Country: Indonesia-Malaysia-New Zealand-Singapore
No longer available

25 Fuse (15A) Backorder CM225715

- Colour: Multimedia platform
Fuse 15 A Piaggio Group · CM225715 Backorder · Shipped in 2–4 weeks

€ 7,51

26 Fuse (7,5A) Available 252945

- Country: Australia
- Country: Europe
- Country: Indonesia-Malaysia-New Zealand-Singapore
Fuse 7,5 A Piaggio Group · 252945 Available · Shipped in 3–5 working days

€ 2,86

27 Socket Backorder B063212

On-board Socket Piaggio Group · B063212 Backorder · Shipped in 2–4 weeks

€ 55,32

28 Fall sensor Available 584509

Tilt sensor Piaggio Group · 584509 Available · Shipped in 3–5 working days

€ 109,51

29 Maintenance Backorder AP8127825

- 250 cc version
Bracket Piaggio Group · AP8127825 Backorder · Shipped in 2–4 weeks

€ 11,02

30 Flasher relay Available AP8124235

Indicator Relay Piaggio Group · AP8124235 Available · Shipped in 3–5 working days

€ 26,50

31 Guard 851992 No longer available

851992 Guard
No longer available

32 Sheath 852044 No longer available

852044 Sheath
No longer available

33 Extension Backorder AP8127860

Cable Piaggio Group · AP8127860 Backorder · Shipped in 2–4 weeks

€ 14,05

34 Sheath Available CM007419

Protective Cover Piaggio Group · CM007419 Available · Shipped in 3–5 working days

€ 2,00

35 H.V. cable Available 080341

- Taiwan
Ignition Lead Piaggio Group · 080341 Available · Shipped in 3–5 working days

€ 3,88

36 Support clamp Backorder 624188

Bracket Piaggio Group · 624188 Backorder · Shipped in 2–4 weeks

€ 10,72
