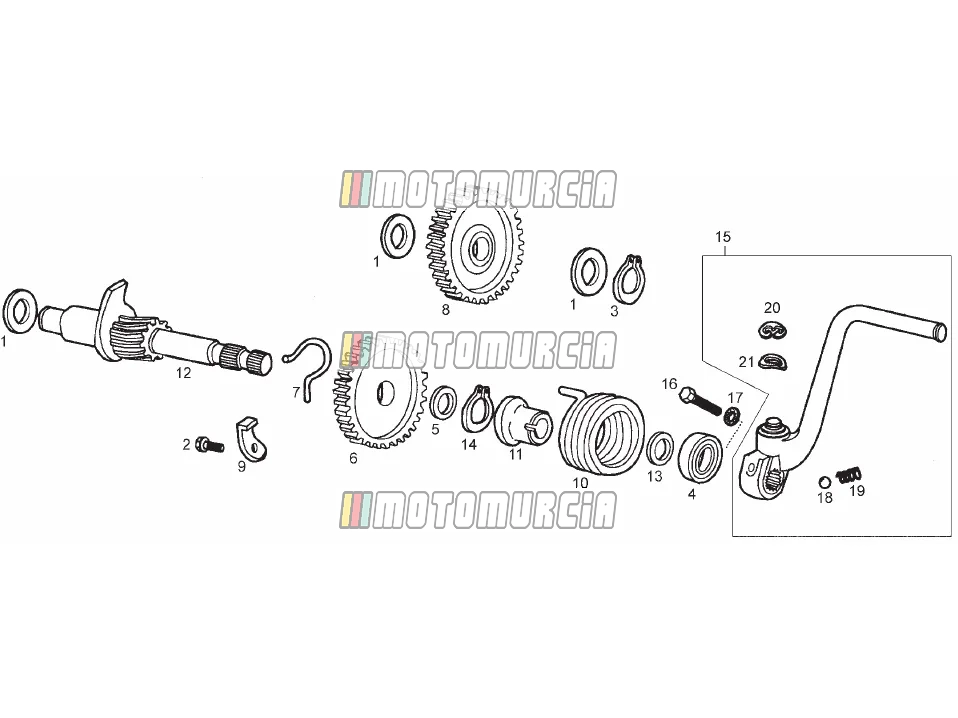

Exploded view — Starter Assembly

Products

1 Washer Available 8472286

•

  Washer Piaggio Group · 8472286 Available

  € 4,99

  Add to cart

2 Screw Available 969296

•

  Flanged Screw M6x10 Piaggio Group · 969296 Available

  € 1,48

  Add to cart

3 Seeger 00000047111 No longer available

• 00000047111 Seeger
  No longer available

4 Oil seal Available 847074

•

  Shaft Seal 15x26x5 mm Piaggio Group · 847074 Available

  € 11,83

  Add to cart

5 Washer Available 847232

•

  Washer Piaggio Group · 847232 Available

  € 3,03

  Add to cart

6 KICKSTARTER GEAR Z-29 Available 847061

•

  Front Sprocket Number of Teeth: 29 Piaggio Group · 847061 Available

  € 161,18

  Add to cart

7 SPRING, ENGAGEMENTE REAR Available 1A014509

•

  Kickstarter spring Piaggio Group · 1A014509 Available

  € 8,30

  Add to cart

8 Pinion Backorder 8470566

•

  Front Sprocket Piaggio Group · 8470566 Backorder

  € 117,73

  Add to cart

9 Berúgó ütköző Available 8470626

•

  Shims Piaggio Group · 8470626 Available

  € 10,19

  Add to cart

10 KICKSTARTER SPRING Available 8470576

•

  Kickstarter spring Piaggio Group · 8470576 Available

  € 8,86

  Add to cart

11 Cup Backorder 8470586

•

  Spring Mount Piaggio Group · 8470586 Backorder

  € 7,56

  Add to cart

12 Kickstarter shaft completely Available 1A014510

•

  Kickstarter shaft Piaggio Group · 1A014510 Available

  € 147,70

  Add to cart

13 Washer Available 265300

•

  Washer Piaggio Group · 265300 Available

  € 1,45

  Add to cart

14 Seeger Available 006422

•

  Circlip Piaggio Group · 006422 Available

  € 2,18

  Add to cart

15 Kick starter lever Backorder 86179R5

•

  Kickstarter lever Piaggio Group · 86179R5 Backorder

  € 31,90

  Add to cart

16 Screw Available 478171

•

  Screw M6x100 Piaggio Group · 478171 Available

  € 2,35

  Add to cart

17 Washer Backorder 00037000600

•

  Washer Piaggio Group · 00037000600 Backorder

  € 5,60

  Add to cart

18 Ball 4,76 Available 00000061040

•

  Ball Ø 4,76 mm Piaggio Group · 00000061040 Available

  € 0,99

  Add to cart

19 Spring Available 00003127200

•

  Spring Piaggio Group · 00003127200 Available

  € 0,99

  Add to cart

20 Seeger Backorder 00047030900

•

  Locking Ring Piaggio Group · 00047030900 Backorder

  € 0,99

  Add to cart

21 Washer (spring) Available 00000036100

•

  Washer Piaggio Group · 00000036100 Available

  € 1,79

  Add to cart
