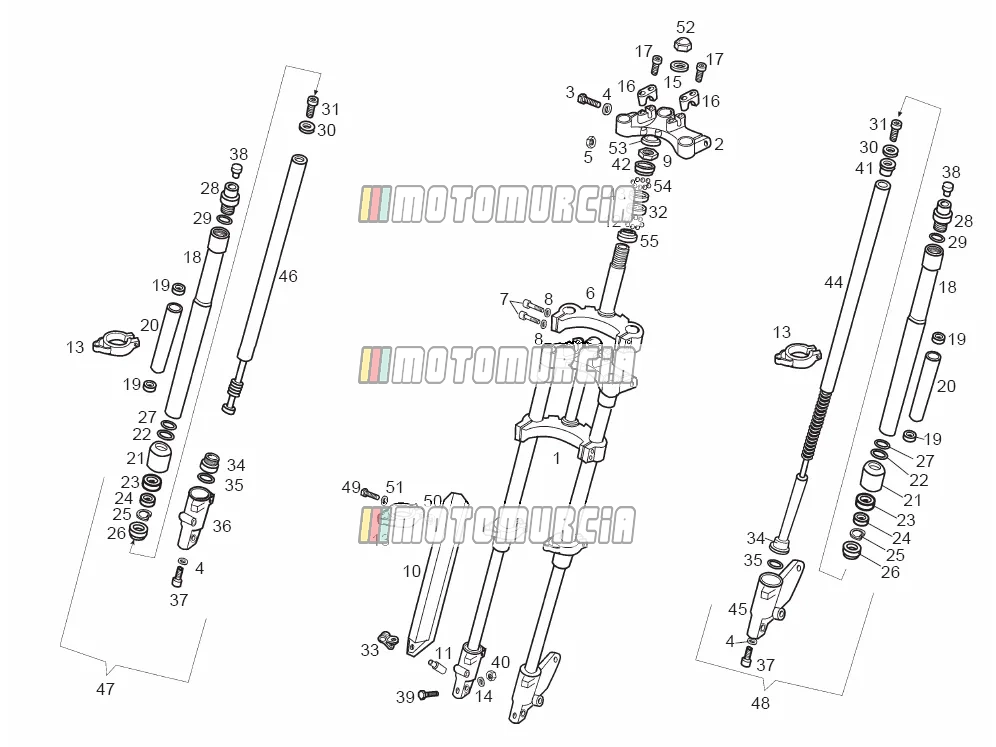

Exploded view — Front Fork

‹ Back to model
Derbi SENDA R 50 Racer 2002 Derbi SENDA R 50 Racer 2002
Front Fork

Products

01 CTO.HORQ.DIRECT.SDA-R/95 BLCA. 00H00207002 No longer available
  • 00H00207002 CTO.HORQ.DIRECT.SDA-R/95 BLCA.
    No longer available
02 TRIPLE CLMP, UPPER, BLACK 00H00206091 No longer available
  • 00H00206091 TRIPLE CLMP, UPPER, BLACK
    No longer available
03 HEX.HEAD SCREW 8M125X45 00000002845 No longer available
  • 00000002845 HEX.HEAD SCREW 8M125X45
    No longer available
04 CONICAL WASHER 00037000800 No longer available
  • 00037000800 CONICAL WASHER
    No longer available
05 Nut Available 00000021080
  • Standard nut Piaggio Group · 00000021080 Available
    € 2,41
06 LOWER TRIPLE CLAMP, W/PIN ASSY 00H00213011 No longer available
  • 00H00213011 LOWER TRIPLE CLAMP, W/PIN ASSY
    No longer available
07 Screw Available 00000004630
  • Allen screw M6 Piaggio Group · 00000004630 Available
    € 1,36
08 Washer Backorder 00037000600
  • Washer Piaggio Group · 00037000600 Backorder
    € 5,60
09 NUT, TOP FORK STEM 00H00201081 No longer available
  • 00H00201081 NUT, TOP FORK STEM
    No longer available
10 R-PROTECT.BL.PNAS.HORQ.SENDA-R 00H04603172 No longer available
  • 00H04603172 R-PROTECT.BL.PNAS.HORQ.SENDA-R
    No longer available
11 CASQ.FIJ.INF.PROTECT.PNA.HORQ. 00H04601241 No longer available
  • 00H04601241 CASQ.FIJ.INF.PROTECT.PNA.HORQ.
    No longer available
12 BALL, D.8 Backorder 00000061080
13 R-GUIA SUP.PROT.PNA.HORQ.BL.SD 00H04602312 No longer available
  • 00H04602312 R-GUIA SUP.PROT.PNA.HORQ.BL.SD
    No longer available
14 Washer Available 00000031080
15 Washer Available 00H00202101
  • Washer Piaggio Group · 00H00202101 Available
    € 3,93
16 HANDLEBAR LOCK CLAMP 00D00200741 No longer available
  • 00D00200741 HANDLEBAR LOCK CLAMP
    No longer available
17 Screw Available 00000004830
  • Screw M8 Piaggio Group · 00000004830 Available
    € 1,38
18 FORK TUBE LOWER 00H00207121 No longer available
  • 00H00207121 FORK TUBE LOWER
    No longer available
19 BUSHING Backorder 00H00200151
  • Sleeve Piaggio Group · 00H00200151 Backorder
    € 8,52
20 BUSHING 00H00200261 No longer available
  • 00H00200261 BUSHING
    No longer available
21 DUST PROTECTOR, UPPER FORK 00H00201231 No longer available
  • 00H00201231 DUST PROTECTOR, UPPER FORK
    No longer available
  • 00H00203231 R-GUARDAP.HORQ.SDA-R II VERS.
    No longer available
22 SNAP RING 00H00200331 No longer available
  • 00H00200331 SNAP RING
    No longer available
23 GASKET DUSTGUARD FORK Available 00H02000881
  • Dust guard Piaggio Group · 00H02000881 Available
    € 12,93
24 SEAL, FORK TUBE. 00H00201471 No longer available
  • 00H00201471 SEAL, FORK TUBE.
    No longer available
25 SNAP RING 00H00200181 No longer available
  • 00H00200181 SNAP RING
    No longer available
26 SUPPLEMENT DUSTGUARD FORK 00H00200201 No longer available
  • 00H00200201 SUPPLEMENT DUSTGUARD FORK
    No longer available
27 0 RING 00H00201521 No longer available
  • 00H00201521 0 RING
    No longer available
28 FORK TUBE CAP 00H00202271 No longer available
  • 00H00202271 FORK TUBE CAP
    No longer available
29 O-Ring 00H00200631 No longer available
  • 00H00200631 O-Ring
    No longer available
30 Washer 00H00201601 No longer available
  • 00H00201601 Washer
    No longer available
31 TOR.C/ALLEN 10M150X25 00000004125 No longer available
  • 00000004125 TOR.C/ALLEN 10M150X25
    No longer available
32 LOWER/UPPER BALL BEARING RACE 00E02000651 No longer available
  • 00E02000651 LOWER/UPPER BALL BEARING RACE
    No longer available
33 Fairlead Available 864454
  • Clamp Piaggio Group · 864454 Available
    € 2,63
34 LOWER PLUG MAIN PIPE 00H00200571 No longer available
  • 00H00200571 LOWER PLUG MAIN PIPE
    No longer available
35 O-Ring 00H00200441 No longer available
  • 00H00200441 O-Ring
    No longer available
36 R-PUNTERA DR.HORQ.SD-R IIVERS. 00H02004831 No longer available
  • 00H02004831 R-PUNTERA DR.HORQ.SD-R IIVERS.
    No longer available
  • 00H02001831 RIGHIT FORK CAP
    No longer available
37 Screw (M8x25) Available AP8150170
  • Screw M8x25 Piaggio Group · AP8150170 Available
    € 5,13
38 BOLT PLUG RIGHT FORK LEG 00H02001541 No longer available
  • 00H02001541 BOLT PLUG RIGHT FORK LEG
    No longer available
39 Screw w/ flange M8 00000002850 No longer available
  • 00000002850 Screw w/ flange M8
    No longer available
40 Nut Available 00023108000
41 SPRING FORK GUIDE 00H00200581 No longer available
  • 00H00200581 SPRING FORK GUIDE
    No longer available
42 LOWER BALL BEARING RACE Backorder 00003102070
  • Cone Piaggio Group · 00003102070 Backorder
    € 17,50
43 OUTER STEM BEARING RACE 00H00200061 No longer available
  • 00H00200061 OUTER STEM BEARING RACE
    No longer available
44 FORK TUBE, UPPER 00H00202191 No longer available
  • 00H00202191 FORK TUBE, UPPER
    No longer available
  • 00H00205191 TUBO PRINCIPAL SENDA-R/99
    No longer available
45 LEFT FORK CAP 00H02001821 No longer available
  • 00H02001821 LEFT FORK CAP
    No longer available
  • 00H02005821 R-PUNTERA IZ.HORQ.SD-R IIVERS.
    No longer available
46 R-CTO.BARRA DR.SENDA R/99 00H02001871 No longer available
  • 00H02001871 R-CTO.BARRA DR.SENDA R/99
    No longer available
  • 00H02000871 MAIN TUBE RIGHT
    No longer available
47 MAIN TUBE RIGHT ASSY 00H02005041 No longer available
  • 00H02005041 MAIN TUBE RIGHT ASSY
    No longer available
  • 00H02009041 R-CTO.TUBO PNA DR.SENDA R/S.M.
    No longer available
48 MAIN TUBE LEFT ASSY 00H02005031 No longer available
  • 00H02005031 MAIN TUBE LEFT ASSY
    No longer available
  • 00H02009031 R-CTO.TUBO PNA IZ.HORQ.S-R/S.M
    No longer available
49 TOR.C/EXAG. 5M80X45 DIN- 00002054500 No longer available
  • 00002054500 TOR.C/EXAG. 5M80X45 DIN-
    No longer available
50 Nut Available 020105
  • Standard nut Piaggio Group · 020105 Available
    € 1,88
51 Washer gasket Available 847226
  • Shim Piaggio Group · 847226 Available
    € 0,99
52 Plug Available 00H00201111
  • Screw Plug Piaggio Group · 00H00201111 Available
    € 18,07
53 Dust cover Available 00D00200761
  • Dust guard Piaggio Group · 00D00200761 Available
    € 7,84
54 Ball 4,76 Available 00000061040
55 UPPER BALL BEARING RACE Backorder 00H02000661
  • Cone Piaggio Group · 00H02000661 Backorder
    € 55,47
