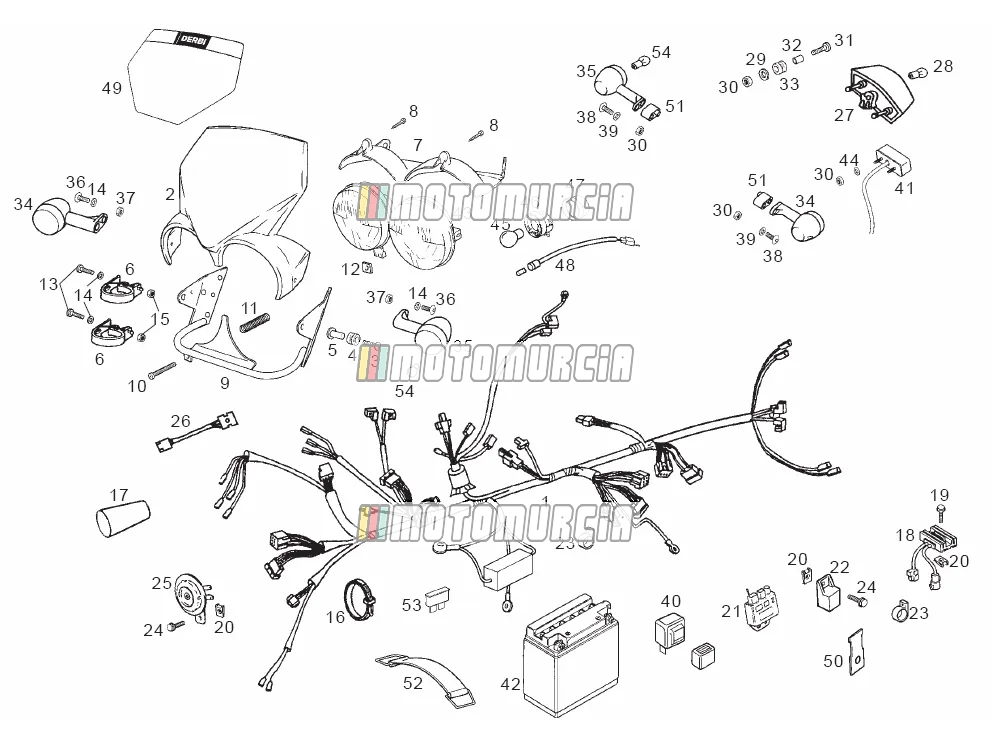

Exploded view — Electrical System

‹ Back to model
Derbi Senda SM 125 2004 Derbi Senda SM 125 2004
Electrical System

Products

1 ELECTRICAL INSTALATIONS ASSY. 00H01034301 No longer available
  • 00H01034301 ELECTRICAL INSTALATIONS ASSY.
    No longer available
2 HEADLIGHT CUSING SUB-ASSEMBLY 00H015142825 No longer available
  • 00H015142825 HEADLIGHT CUSING SUB-ASSEMBLY
    No longer available
3 SCREW M5X22 00008052200 No longer available
  • 00008052200 SCREW M5X22
    No longer available
4 Spacer (rubber) Available 00H05701061
  • Connector Piaggio Group · 00H05701061 Available · Shipped in 3–5 working days
    € 4,01
5 Spacer 00H01001821 No longer available
  • 00H01001821 Spacer
    No longer available
6 CABLE TIE 00H04609841 No longer available
  • 00H04609841 CABLE TIE
    No longer available
7 PROTECTOR 00H05702141 No longer available
  • 00H05702141 PROTECTOR
    No longer available
8 SCREW 2,9x9,5 00011020900 No longer available
  • 00011020900 SCREW 2,9x9,5
    No longer available
9 HEADLIGHT SUPPORT 00H01500391 No longer available
  • 00H01500391 HEADLIGHT SUPPORT
    No longer available
10 Screw Available 00012045000
  • Screw M4 Piaggio Group · 00012045000 Available · Shipped in 3–5 working days
    € 1,25
11 Spring Available 00H02304501
    • Year of manufacture: 2010
    Spring Piaggio Group · 00H02304501 Available · Shipped in 3–5 working days
    € 3,91
12 Nut 00H01000581 No longer available
  • 00H01000581 Nut
    No longer available
13 Screw Available 00008062500
  • Screw M6 Piaggio Group · 00008062500 Available · Shipped in 3–5 working days
    € 1,59
14 Washer Available 00031106000
    • Escort
    • From chassis 7H357381
    Shim Piaggio Group · 00031106000 Available · Shipped in 3–5 working days
    € 0,99
15 Nut M6x100 Available 00000021060
  • Standard nut Piaggio Group · 00000021060 Available · Shipped in 3–5 working days
    € 1,48
16 Hose clamp Available 00D00900531
    • Up to chassis 9H433717
    • Year of manufacture: 2011
    • Country: Austria
    • Country: Denmark
    Clamp Piaggio Group · 00D00900531 Available · Shipped in 3–5 working days
    € 1,65
17 Guard Backorder 00H02300961
  • Protection piece Piaggio Group · 00H02300961 Backorder · Shipped in 2–4 weeks
    € 18,43
18 Regulator 967302 No longer available
  • 967302 Regulator
    No longer available
19 Screw Backorder 00G06800021
    • Year of manufacture: 2011
    Screw M6 Piaggio Group · 00G06800021 Backorder · Shipped in 2–4 weeks
    € 5,60
20 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
21 ELECTRONIC UNIT 495556 No longer available
  • 495556 ELECTRONIC UNIT
    No longer available
22 Relay - starter Available 58115R
    • Carburettor version (C364M)
    Starting Relay 12 V, 80 A Piaggio Group · 58115R Available · Shipped in 3–5 working days
    € 24,91

    Alternatives from other brands

    Start Relay Vespa GTS 300 IE Athena · S410480402002 Backorder · Shipped in 2–5 weeks
    € 12,10
23 Relay rubber Backorder 942577
  • Rubber Piaggio Group · 942577 Backorder · Shipped in 2–4 weeks
    € 13,94
24 Screw Available 00F05900041
    • From chassis 9H433718
    • Year of manufacture: 2011
    • Country: Austria
    • Country: Denmark
    • Country: Spain
    Screw M6x16 Piaggio Group · 00F05900041 Available · Shipped in 3–5 working days
    € 2,69
25 Horn 00F01001311 No longer available
  • 00F01001311 Horn
    No longer available
26 Flasher relay Available 00H05700481
  • Indicator Relay Piaggio Group · 00H05700481 Available · Shipped in 3–5 working days
    € 43,64
27 Taillight assy. Backorder 00H01006321
  • Rear light Piaggio Group · 00H01006321 Backorder · Shipped in 2–4 weeks
    € 79,41
28 Bulb Backorder 00H01000371
    • Maintenance kit
    Bulbs Bulb, 12 V, 21/5 W Piaggio Group · 00H01000371 Backorder · Shipped in 2–4 weeks
    € 26,97
29 Washer Available 00H03800722
    • Old fastening
    • Year of manufacture: 2009
    • Country: Switzerland
    Shim Piaggio Group · 00H03800722 Available · Shipped in 3–5 working days
    € 1,75
30 Nut Available 00000023050
    • Year of manufacture: 2011
    • Country: Switzerland
    Standard nut Piaggio Group · 00000023050 Available · Shipped in 3–5 working days
    € 2,69
31 Screw 00004053500 No longer available
  • 00004053500 Screw
    No longer available
32 Nut Available 00H01002821
  • Standard nut Piaggio Group · 00H01002821 Available · Shipped in 3–5 working days
    € 4,42
33 Damper Available 00H06800461
  • Silentblock Piaggio Group · 00H06800461 Available · Shipped in 3–5 working days
    € 3,29
34 Turn indicator 00H01706021 No longer available
  • 00H01706021 Turn indicator
    • Year of manufacture: 2006
    • Year of manufacture: 2008
    No longer available
35 Turn indicator Available 00H01704311
36 Screw Available 00008061500
    • Escort
    • From chassis 7H357381
    Screw M6 Piaggio Group · 00008061500 Available · Shipped in 3–5 working days
    € 0,99
37 Nut Available 00000023060
    • Switzerland version E3
    • Year of manufacture: 2009
    • Year of manufacture: 2011
    • Country: Switzerland
    Standard nut M6 Piaggio Group · 00000023060 Available · Shipped in 3–5 working days
    € 0,99
38 Screw 5X80X50 00004055000 No longer available
  • 00004055000 Screw 5X80X50
    No longer available
39 Washer Available 847181
    • Year of manufacture: 2011
    Washer Piaggio Group · 847181 Available · Shipped in 3–5 working days
    € 21,21
40 Flasher unit Backorder 00G01700401
  • Indicator Relay Piaggio Group · 00G01700401 Backorder · Shipped in 2–4 weeks
    € 81,51
41 Lamp assy, number plate Backorder 00H05700471
    • Country: Switzerland
    Number Plate Lights Piaggio Group · 00H05700471 Backorder · Shipped in 2–4 weeks
    € 86,99
42 Battery Backorder 00H03301401
43 HEADLIGHT LENS SUB-ASSEMBLY 00H01022011 No longer available
  • 00H01022011 HEADLIGHT LENS SUB-ASSEMBLY
    No longer available
44 Washer gasket Available 847226
  • Shim Piaggio Group · 847226 Available · Shipped in 3–5 working days
    € 0,99
45 Bulb 102111 No longer available
  • 102111 Bulb
    No longer available
46 Bulb holder Available AP8224609
47 Protection Backorder 00G05701141
  • Bonnet Piaggio Group · 00G05701141 Backorder · Shipped in 2–4 weeks
    € 11,18
48 Lamp Backorder 00G01000791
  • Bulbs Bulb Piaggio Group · 00G01000791 Backorder · Shipped in 2–4 weeks
    € 13,03
49 FORNT PLATE DECAL 00H01533233 No longer available
  • 00H01533233 FORNT PLATE DECAL
    No longer available
  • 00H01533232 FORNT PLATE DECAL
    No longer available
50 STARTER SUPPORT 00D02300361 No longer available
  • 00D02300361 STARTER SUPPORT
    No longer available
51 Maintenance 00F01701191 No longer available
  • 00F01701191 Maintenance
    No longer available
52 Flange 00E01810361 No longer available
  • 00E01810361 Flange
    No longer available
53 Fuse (7,5A) Backorder 00H01001911
  • Fuse 7,5 A Piaggio Group · 00H01001911 Backorder · Shipped in 2–4 weeks
    € 15,67
  • 00H01002911 Fuse (15A)
    No longer available
54 Bulb (12V 10W BA15s) Available AP8127489
