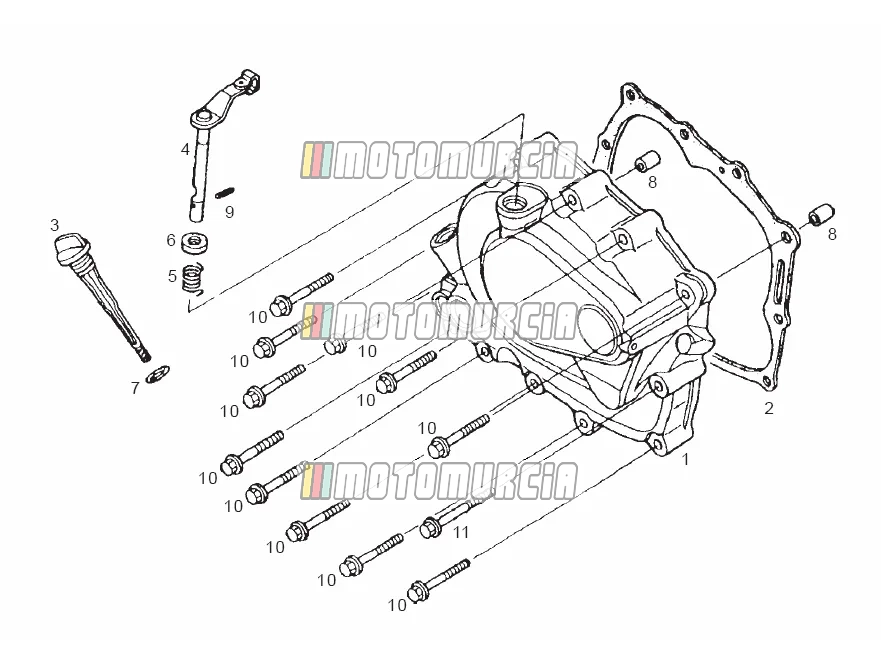

Exploded view — Variator Carter Cover

Products

1 Cover 495416 No longer available

• 495416 Cover
  No longer available

2 Gasket 495420 No longer available

• 495420 Gasket
  No longer available

3 Oil dipstick 495475 No longer available

• 495475 Oil dipstick
  No longer available

4 Lever 495513 No longer available

• 495513 Lever
  No longer available

5 Spring 495515 No longer available

• 495515 Spring
  No longer available

6 Oil seal 495642 No longer available

• 495642 Oil seal
  No longer available

7 O-Ring 495655 No longer available

• 495655 O-Ring
  No longer available

8 Bush 495292 No longer available

• 495292 Bush
  No longer available

9 Pin 495682 No longer available

• 495682 Pin
  No longer available

10 Screw 495339 No longer available

• 495339 Screw
  No longer available

11 Screw 495697 No longer available

• 495697 Screw
  No longer available
