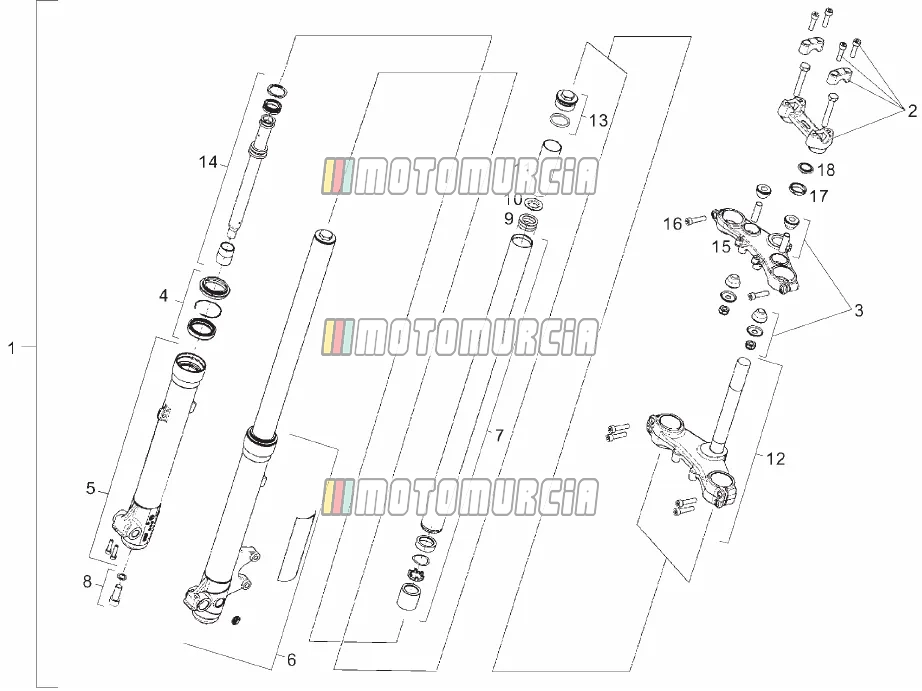

Exploded view — Front Fork

Products

1 Front fork 865335 No longer available

• 865335 Front fork
  No longer available

2 U-bolt Backorder 00H00204741

•

  Handlebar clamp bracket Piaggio Group · 00H00204741 Backorder

  € 113,74

  Add to cart

3 Bushes kit 00H02001841 No longer available

• 00H02001841 Bushes kit
  No longer available

4 Engine oil seal kit Available 00H00205231

•

  Fork oil seal set Piaggio Group · 00H00205231 Available

  € 86,49

  Add to cart

5 RH sleeve 00H02018031 No longer available

• 00H02018031 RH sleeve
  No longer available

6 LH sleeve 00H02019041 No longer available

• 00H02019041 LH sleeve
  No longer available

7 Pipe 00H02004871 No longer available

• 00H02004871 Pipe
  No longer available

8 Screw 00H02001741 No longer available

• 00H02001741 Screw
  No longer available

9 Spring 00H00214171 No longer available

• 00H00214171 Spring
  No longer available

10 Washer 00H00203691 No longer available

• 00H00203691 Washer
  No longer available

11 Pipe 00H00206151 No longer available

• 00H00206151 Pipe
  No longer available

12 Stem base 00H00215011 No longer available

• 00H00215011 Stem base
  No longer available

13 Cover 00H00207271 No longer available

• 00H00207271 Cover
  No longer available

14 Plunger 00H00206531 No longer available

• 00H00206531 Plunger
  No longer available

15 Upper plate 00H00215091 No longer available

• 00H00215091 Upper plate
  No longer available

16 Screw Available 00008083500

•

  Screw Piaggio Group · 00008083500 Available

  € 4,72

  Add to cart

17 Nut 00H00204601 No longer available

• 00H00204601 Nut
  No longer available

18 Cover 00H00206111 No longer available

• 00H00206111 Cover
  No longer available
