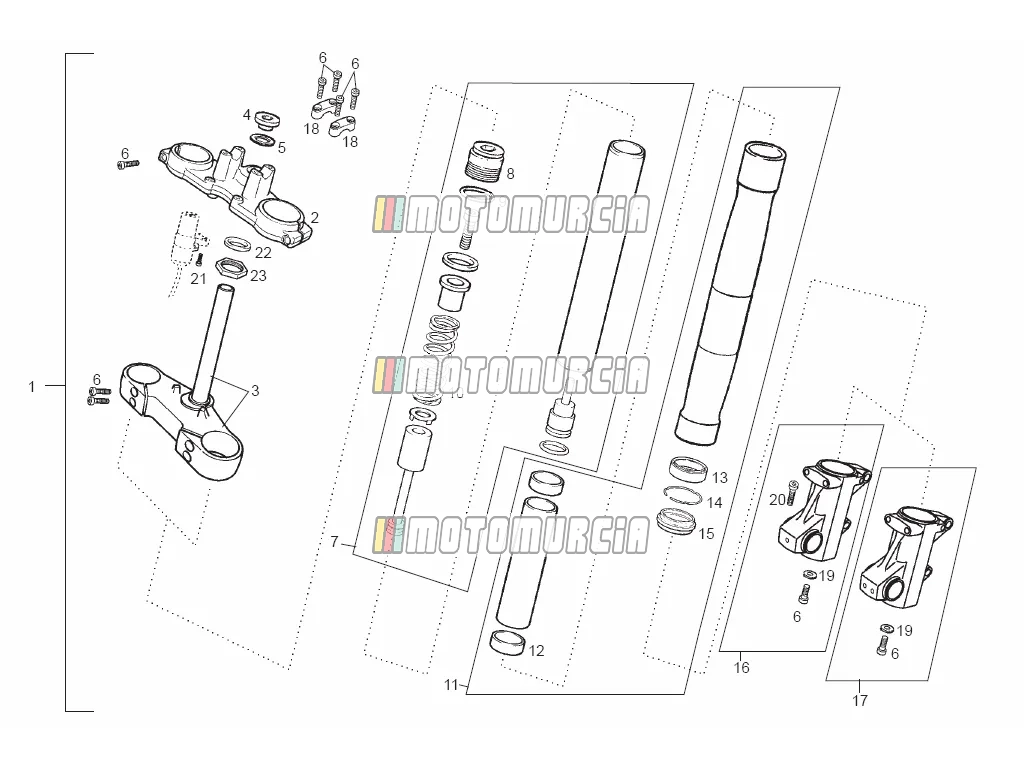

Exploded view — Front Fork

Products

1 FRONT FORK ASSY 863070 No longer available

• 863070 FRONT FORK ASSY
  No longer available

2 R-UPPER FORK PLATE 00H00220091 No longer available

• 00H00220091 R-UPPER FORK PLATE
  No longer available

3 LOWER TRIPLE CLAMP, W/PIN ASS 00H00219011 No longer available

• 00H00219011 LOWER TRIPLE CLAMP, W/PIN ASS
  No longer available

4 Plug Available 00H00201111

•

  Screw Plug Piaggio Group · 00H00201111 Available

  € 18,07

  Add to cart

5 Washer Available 00H00202101

•

  Washer Piaggio Group · 00H00202101 Available

  € 3,93

  Add to cart

6 Screw Available 00000004835

•

  Allen screw M8x35 Piaggio Group · 00000004835 Available

  € 1,44

  Add to cart

7 HYDRAULIC TUBE 00H00210531 No longer available

• 00H00210531 HYDRAULIC TUBE
  No longer available

8 Cover 00H00208271 No longer available

• 00H00208271 Cover
  No longer available

9 O-Ring Backorder 00H00204501

•

  O-Ring Piaggio Group · 00H00204501 Backorder

  € 4,84

  Add to cart

10 FORK SPRING 00H00218171 No longer available

• 00H00218171 FORK SPRING
  No longer available

11 FORK TUBE, UPPER 00H02024041 No longer available

• 00H02024041 FORK TUBE, UPPER
  No longer available

12 Bush Available 00H00208151

•

  Slide Bushing Piaggio Group · 00H00208151 Available

  € 21,34

  Add to cart

13 Fork oil seal (Marzocchi) Available 599501

•

  Oil seal Piaggio Group · 599501 Available

  € 30,29

  Add to cart

14 Stop ring Backorder 00H00205601

•

  Snap-in Ring Piaggio Group · 00H00205601 Backorder

  € 8,28

  Add to cart

15 Dust cover Available 00H00206231

•

  Dust guard Piaggio Group · 00H00206231 Available

  € 16,20

  Add to cart

16 R-RIGHT HAND SIDE FORK END PI 00H02009831 No longer available

• 00H02009831 R-RIGHT HAND SIDE FORK END PI
  No longer available

17 R-LEFT HAND SIDE FORK END PIE 00H02010821 No longer available

• 00H02010821 R-LEFT HAND SIDE FORK END PIE
  No longer available

18 TIE 00H00208741 No longer available

• 00H00208741 TIE
  No longer available

19 Washer Available 00034001002

•

  Shim Piaggio Group · 00034001002 Available

  € 1,54

  Add to cart

20 SCREW 6M100X25 00000004625 No longer available

• 00000004625 SCREW 6M100X25
  No longer available

21 Screw Available AP8150169

•

  Screw M8x20 Piaggio Group · AP8150169 Available

  € 1,88

  Add to cart

22 Dust cover Available 00D00200761

•

  Dust guard Piaggio Group · 00D00200761 Available

  € 7,84

  Add to cart

23 Nut Available 00G00200112

•

  Standard nut Piaggio Group · 00G00200112 Available

  € 13,54

  Add to cart
