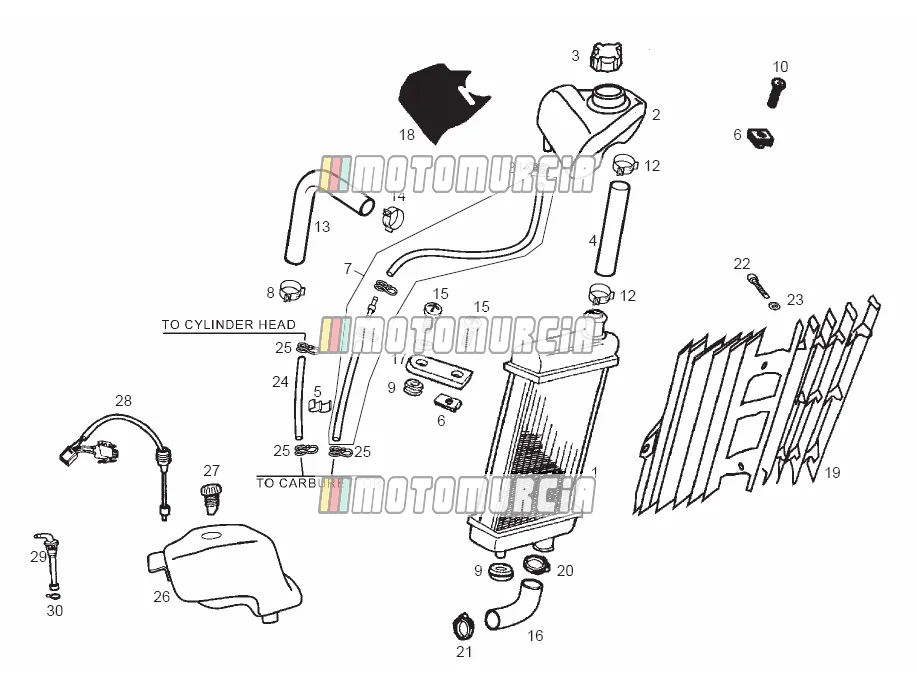

Exploded view — Cooling System

Products

1 Radiator - water cooler Available 86193R

•

  Radiator Piaggio Group · 86193R Available

  € 308,24

  Add to cart

2 Expansion tank Available 00H03810501

•

  Coolant Reservoir Piaggio Group · 00H03810501 Available

  € 49,72

  Add to cart

3 Tank cap Available 00H03802472

•

  Tank Cap Piaggio Group · 00H03802472 Available

  € 36,86

  Add to cart

4 Water hose 00G03800601 No longer available

• 00G03800601 Water hose
  No longer available

5 Clamp Backorder 00H03805091

•

  Clamp Piaggio Group · 00H03805091 Backorder

  € 2,89

  Add to cart

6 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

7 Water hose 00H03804971 No longer available

• 00H03804971 Water hose
  No longer available

8 Clamp Available 00H03802751

•

  Clamp Piaggio Group · 00H03802751 Available

  € 4,27

  Add to cart

9 Damper Available 00008915020

•

  Vibrations Damper Piaggio Group · 00008915020 Available

  € 2,49

  Add to cart

10 Screw Available 00012161600

•

  Screw M6 Piaggio Group · 00012161600 Available

  € 0,99

  Add to cart

11 Cup Available 00D01500552

•

  Washer Piaggio Group · 00D01500552 Available

  € 1,29

  Add to cart

12 Clamp Available 00G03801701

•

  Clamp Piaggio Group · 00G03801701 Available

  € 2,35

  Add to cart

13 Water hose Backorder 00H03808021

•

  Hose Piaggio Group · 00H03808021 Backorder

  € 26,69

  Add to cart

14 Clamp Backorder 00H03801751

•

  Hose clamp Piaggio Group · 00H03801751 Backorder

  € 8,22

  Add to cart

15 Screw Available 00092061214

•

  Screw M6 Piaggio Group · 00092061214 Available

  € 5,60

  Add to cart

16 Water hose Available 00H03802031

•

  Radiator hose Piaggio Group · 00H03802031 Available

  € 17,39

  Add to cart

17 Bracket Available 00G02200692

•

  Bracket Piaggio Group · 00G02200692 Available

  € 4,49

  Add to cart

18 DECAL Available 00H03801711

•

  Decal Piaggio Group · 00H03801711 Available

  € 1,55

  Add to cart

19 Radiator grille Available 2B005365

•

  Radiator Grill Piaggio Group · 2B005365 Available

  € 45,11

  Add to cart

21 Clamp 00H03802091 No longer available

• 00H03802091 Clamp
  No longer available

22 Screw Available 00011141300

•

  Screw 4,8x13 mm Piaggio Group · 00011141300 Available

  € 1,48

  Add to cart

23 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

24 Water hose Available 00H03801961

•

  Pipe Piaggio Group · 00H03801961 Available

  € 8,57

  Add to cart

25 Clamp Backorder 00H00400501

•

  Clamp 7,8-8,3 mm Piaggio Group · 00H00400501 Backorder

  € 0,99

  Add to cart

26 Oil tank Available 00H03704081

•

  Oil Tank Piaggio Group · 00H03704081 Available

  € 50,15

  Add to cart

27 Oil filler cap Available 00F03710241

•

  Oil Tank Cap Piaggio Group · 00F03710241 Available

  € 15,75

  Add to cart

28 Oil level sensor Backorder 867531

•

  Oil level guage Piaggio Group · 867531 Backorder

  € 43,57

  Add to cart

29 Oil filter Available AP8104071

•

  Connection, with filter Piaggio Group · AP8104071 Available

  € 27,95

  Add to cart

30 Clamp Available 00G00400501

•

  Hose Clamp Piaggio Group · 00G00400501 Available

  € 2,18

  Add to cart

31 Clamp Available 00D03700131

•

  Hose Clamp Piaggio Group · 00D03700131 Available

  € 1,37

  Add to cart
