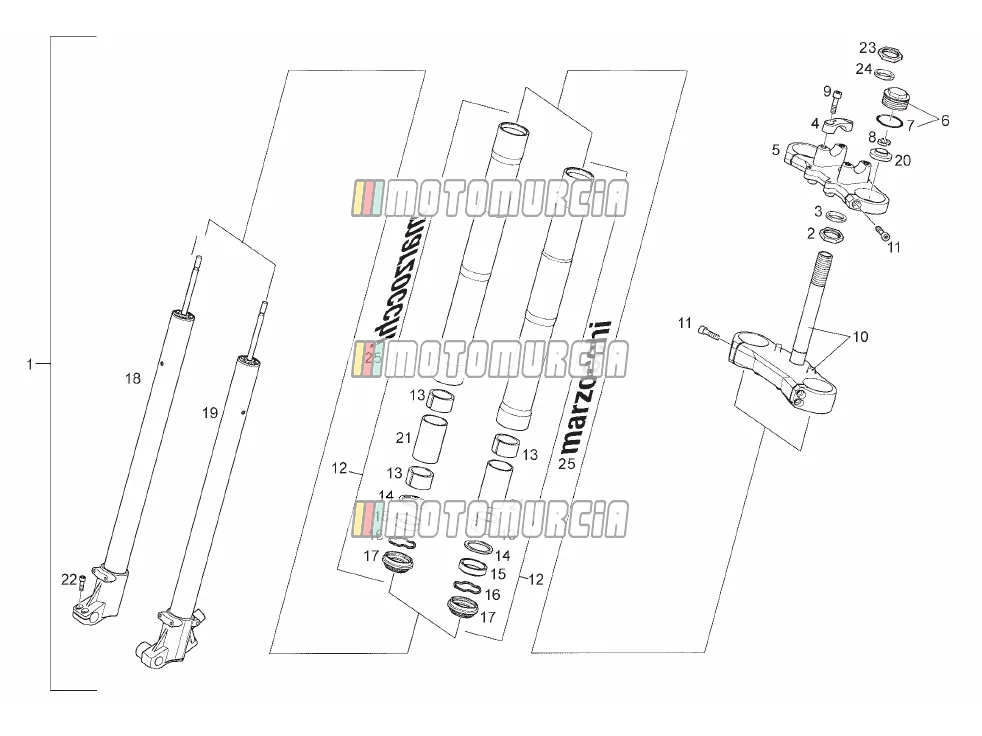

Exploded view — Front Fork

Products

1 FRONT FORK ASSY 863070 No longer available

• 863070 FRONT FORK ASSY
  No longer available

2 Nut Available 00G00200112

•

  Standard nut Piaggio Group · 00G00200112 Available

  € 13,54

  Add to cart

3 Dust cover Available 00D00200761

•

  Dust guard Piaggio Group · 00D00200761 Available

  € 7,84

  Add to cart

4 Clamp 863487 No longer available

• 863487 Clamp
  No longer available

5 R-PLATINA SUP.DRD RACING LTD.06 863488 No longer available

• 863488 R-PLATINA SUP.DRD RACING LTD.06
  No longer available

6 Sleeve plug Backorder AP8123348

•

  Screw Plug Piaggio Group · AP8123348 Backorder

  € 82,53

  Add to cart

7 O-Ring Backorder 00H00206501

•

  O-Ring Piaggio Group · 00H00206501 Backorder

  € 10,74

  Add to cart

8 Half ring Backorder 00H00200721

•

  Semiring Piaggio Group · 00H00200721 Backorder

  € 22,81

  Add to cart

9 Screw 861630 No longer available

• 861630 Screw
  No longer available

10 LOWER TRIPLE CLAMP, W/PIN ASS 863489 No longer available

• 863489 LOWER TRIPLE CLAMP, W/PIN ASS
  No longer available

11 R-TOR.FIJ.8X40 DRD RAC.LTD.06 863490 No longer available

• 863490 R-TOR.FIJ.8X40 DRD RAC.LTD.06
  No longer available

12 R-CTO.BARRA HORQ.DRD PRO R 07 864500 No longer available

• 864500 R-CTO.BARRA HORQ.DRD PRO R 07
  No longer available

13 Bush Available 00H00210151

•

  Slide Bushing Piaggio Group · 00H00210151 Available

  € 91,92

  Add to cart

14 Ring Available 00H00201441

•

  Oil seal Piaggio Group · 00H00201441 Available

  € 20,28

  Add to cart

15 Fork oil seal (Marzocchi) Available 599501

•

  Oil seal Piaggio Group · 599501 Available

  € 30,29

  Add to cart

16 Stop ring 599503 No longer available

• 599503 Stop ring
  No longer available

17 Fork dust seal (Marzocchi) Available 599502

•

  Dust guard Piaggio Group · 599502 Available

  € 26,34

  Add to cart

18 R-CTO.HIDRAUL.C/PUNT.DR.DRD RAC.LTD.06 863492 No longer available

• 863492 R-CTO.HIDRAUL.C/PUNT.DR.DRD RAC.LTD.06
  No longer available

19 FORK LOWER TUBE 863493 No longer available

• 863493 FORK LOWER TUBE
  No longer available

20 Ring spring Available AP8123357

•

  Spacer Ring Piaggio Group · AP8123357 Available

  € 14,35

  Add to cart

21 Spacer 861642 No longer available

• 861642 Spacer
  No longer available

22 Screw 862029 No longer available

• 862029 Screw
  No longer available

23 Plug Available 00H00201111

•

  Screw Plug Piaggio Group · 00H00201111 Available

  € 18,07

  Add to cart

24 Washer Available 00H00202101

•

  Washer Piaggio Group · 00H00202101 Available

  € 3,93

  Add to cart

25 R-LABEL HORQUILLA 864878 No longer available

• 864878 R-LABEL HORQUILLA
  No longer available
