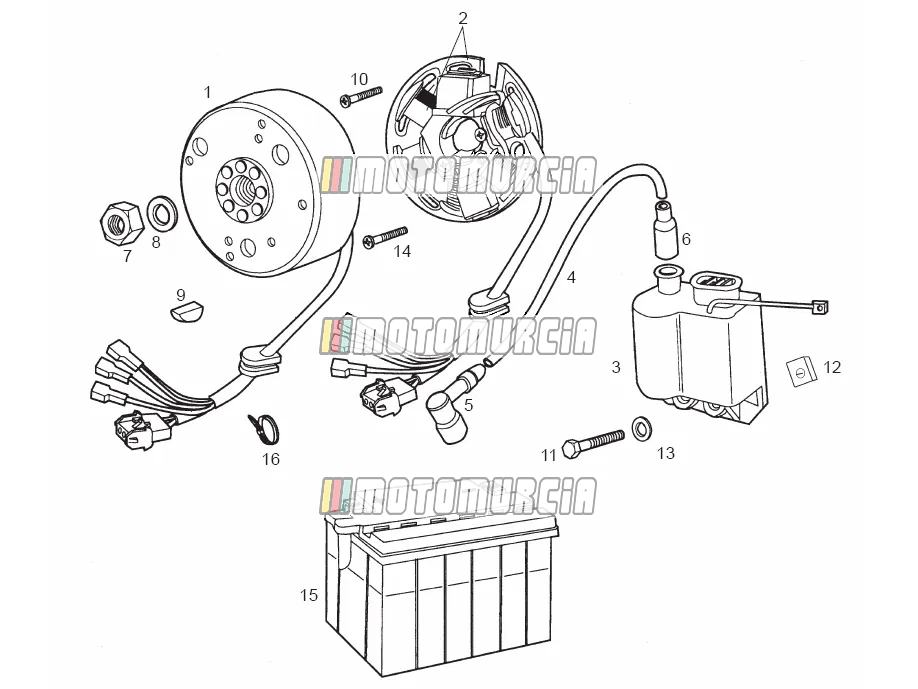

Exploded view — Cdi Magneto Assy

Products

01 Stator Available 82829R

•

  Alternator, Ducati Piaggio Group · 82829R Available

  € 250,94

  Add to cart
• 00H03307011 MAGNETO ASSEMBLY
  No longer available

02 STATOR PLATE 00H03303701 No longer available

• 00H03303701 STATOR PLATE
  No longer available
• 00H03300701 STATOR PLATE
  No longer available

03 COIL, PRIMARY IGNITION 00H03331171 No longer available

• 00H03331171 COIL, PRIMARY IGNITION
  No longer available
•

  Ignition Coil, Ducati Piaggio Group · 00H03330171 Backorder

  € 153,66

  Add to cart

04 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

05 Spark plug cap Available 00G03301271

•

  Spark Plug Connector Piaggio Group · 00G03301271 Available

  € 20,75

  Add to cart

06 Cap Available 00F03300731

•

  Rubber bellows Piaggio Group · 00F03300731 Available

  € 15,26

  Add to cart

07 5 - Nut (magneto) 00H03300221 No longer available

• 00H03300221 5 - Nut (magneto)
  No longer available

08 Washer 00F03300241 No longer available

• 00F03300241 Washer
  No longer available

09 Woodruff key Available 847215

•

  Alternator wedge Piaggio Group · 847215 Available

  € 5,38

  Add to cart

10 Screw 847233 No longer available

• 847233 Screw
  No longer available

11 Screw Available 00012162000

•

  Screw M6 Piaggio Group · 00012162000 Available

  € 0,99

  Add to cart

12 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

13 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

14 ROUNDHEAD PHILIPS SCREW 4MM-7 Available 00000012420

•

  Screw Piaggio Group · 00000012420 Available

  € 1,37

  Add to cart

15 Battery 32YTX5LBS No longer available

• 32YTX5LBS Battery
  No longer available

16 Hose clamp 290X4,8 Backorder 00F00900531

•

  Clamp 290x4,8 mm Piaggio Group · 00F00900531 Backorder

  € 5,60

  Add to cart
