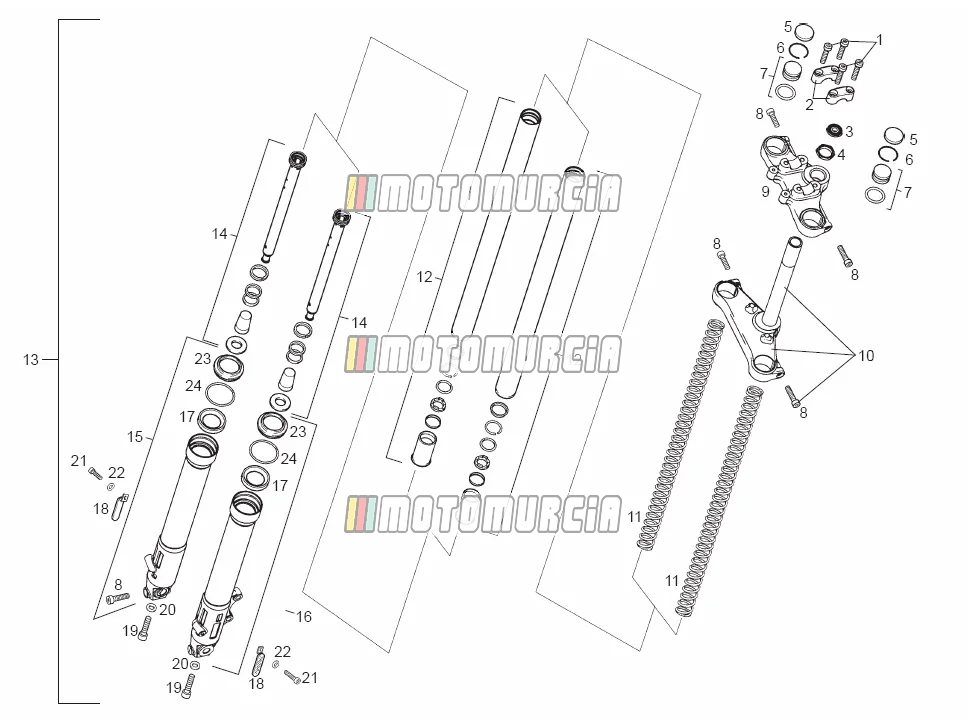

Exploded view — Front Fork

Products

01 Screw 00002084011 No longer available

• 00002084011 Screw
  No longer available

02 Clamp Backorder 00H00203741

•

  Mount Piaggio Group · 00H00203741 Backorder

  € 43,58

  Add to cart

03 SUPL.DUSTGUARD Backorder 00H00202761

•

  Dust guard Piaggio Group · 00H00202761 Backorder

  € 27,65

  Add to cart

04 Nut 00H00204601 No longer available

• 00H00204601 Nut
  No longer available

05 RESERVOIR Backorder 00H02003541

•

  Lid Piaggio Group · 00H02003541 Backorder

  € 11,18

  Add to cart

06 O-Ring 00H00202501 No longer available

• 00H00202501 O-Ring
  No longer available

07 FORK TUBE CAP Backorder 00H00205271

•

  Fork Leg Piaggio Group · 00H00205271 Backorder

  € 76,35

  Add to cart

08 SCREW M10X35 00004383500 No longer available

• 00004383500 SCREW M10X35
  No longer available

09 HANDLEBAR LOCK CLAMP 00H00213091 No longer available

• 00H00213091 HANDLEBAR LOCK CLAMP
  No longer available

10 LOWER TRIPLE CLAMP 00H00211011 No longer available

• 00H00211011 LOWER TRIPLE CLAMP
  No longer available

11 FORK SPRING 00H00210171 No longer available

• 00H00210171 FORK SPRING
  No longer available

12 FORK BAR 00H02003871 No longer available

• 00H02003871 FORK BAR
  No longer available

13 FORK ASSY Available 86122R

•

  Fork Marzocchi Piaggio Group · 86122R Available

  € 731,59

  Add to cart

14 DAMPER TUBE 00H00202531 No longer available

• 00H00202531 DAMPER TUBE
  No longer available

15 RH. FORK TUBE LOWER 00H02011031 No longer available

• 00H02011031 RH. FORK TUBE LOWER
  No longer available

16 RH. FORK TUBE LOWER 00H02011041 No longer available

• 00H02011041 RH. FORK TUBE LOWER
  No longer available

17 Fork oil seal Available 00H00204471

•

  Fork Seal 35x48x11 mm Piaggio Group · 00H00204471 Available

  € 40,41

  Add to cart

18 Reflector Available 00H01802081

•

  Reflector Piaggio Group · 00H01802081 Available

  € 13,98

  Add to cart

19 SCREW M10X35 Backorder 00004013500

•

  Screw M10x35 Piaggio Group · 00004013500 Backorder

  € 4,63

  Add to cart

20 Washer Backorder 00000031100

•

  Oil seal Piaggio Group · 00000031100 Backorder

  € 3,98

  Add to cart

21 Screw Available 00008061500

•

  Screw M6 Piaggio Group · 00008061500 Available

  € 0,99

  Add to cart

22 Washer Available 00031106000

•

  Shim Piaggio Group · 00031106000 Available

  € 0,99

  Add to cart

23 Fork dust seal Backorder 00H00204231

•

  Dust guard Piaggio Group · 00H00204231 Backorder

  € 47,50

  Add to cart

24 O-RING Backorder 00H00201701

•

  Oil seal Piaggio Group · 00H00201701 Backorder

  € 9,97

  Add to cart
