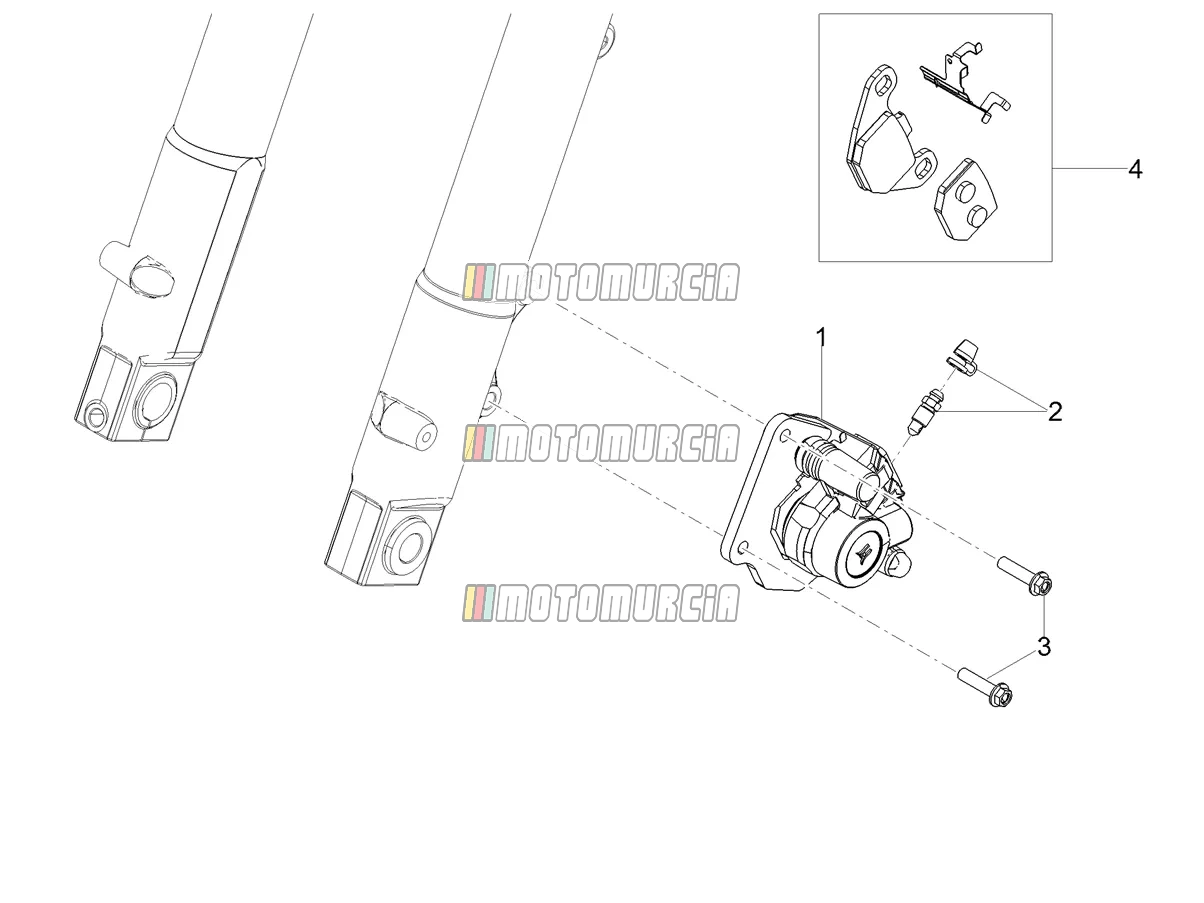

Exploded view — Front Brake Caliper

‹ Back to model

Derbi Senda SM Racing 50 E4 2018

Products

1 Front brake caliper Front Available 867056

- SX version
- Year of manufacture: 2012
- Year of manufacture: 2013
Brake Caliper front Piaggio Group · 867056 Available · Shipped in 3–5 working days

€ 408,94

2 Air bleed valve 867240 No longer available

867240 Air bleed valve
- J.Juan
- J.Juan brake system
- SX version
- Year of manufacture: 2012
- Year of manufacture: 2013
No longer available

3 Pre-coated M8x25 hex flange screw Available 2B002571

Screw Piaggio Group · 2B002571 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 0,99

4 Brake pads Available 867242

Brake pad set Piaggio Group · 867242 Available · Shipped in 3–5 working days

€ 35,44

Alternatives from other brands

Organic Scooter Brake Pads EBC · SFA083 Available · Shipped in 4–7 working days

€ 7,79

Brake Pads Eco-Friction EF Ferodo · FDB313EF Available · Shipped in 4–7 working days

€ 15,05

186HF BRAKE PADS ORGANIC SBS · 6190186100 Available · Shipped in 4–7 working days

€ 16,21
