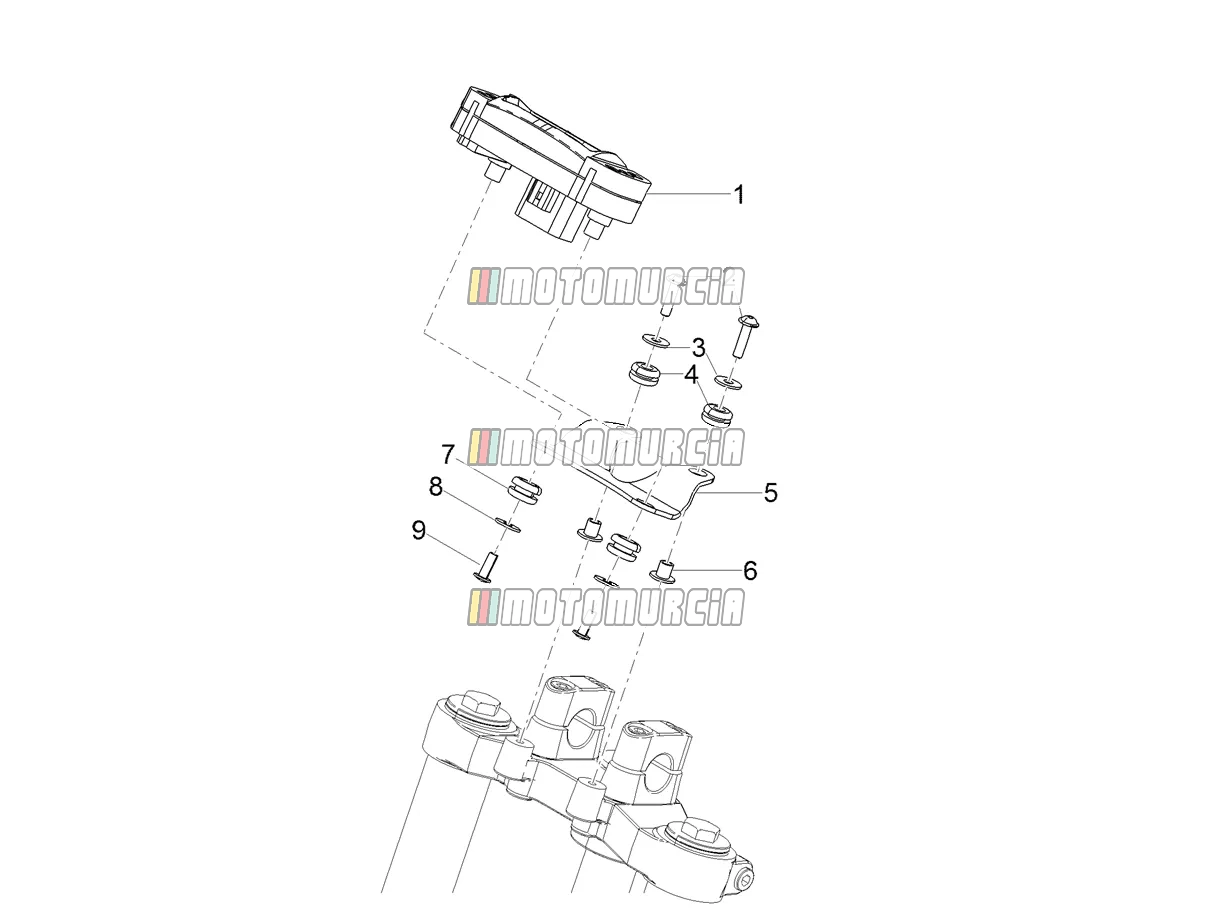

Exploded view — Instruments

Products

1 Dashboard Available 2D000377

•

  Instrument Cluster Piaggio Group · 2D000377 Available · Shipped in 3–5 working days

  € 486,26

  Add to cart

2 Screw Available AP8152338

• • Colour: Tuscany Tibet 2003
  • ETV Capo Nord RALLY/RAID version
  • Enduro Trail version
  • Mojito Custom version


  Flanged Screw Piaggio Group · AP8152338 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,63

  Add to cart

3 Washer Available AP8150382

• • Colour: Tuscany Tibet 2003


  Shim 15x5,5x1,2 mm Piaggio Group · AP8150382 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

4 Silent-block Available 00D01010821

•

  Silentblock Piaggio Group · 00D01010821 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart

5 Socket support Available 2B004445

•

  Bracket Piaggio Group · 2B004445 Available · Shipped in 3–5 working days

  € 38,91

  Add to cart

6 Spacer bush Available 864461

•

  Spacer Bush Piaggio Group · 864461 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 11,83

  Add to cart

7 Rubber spacer Available 00F01500021

•

  Rubber Piaggio Group · 00F01500021 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 5,01

  Add to cart

8 10 - Washer Available AP8150013

• • Colour: Special Edition
  • Year of manufacture: 2012
  • Year of manufacture: 2013


  Shim Piaggio Group · AP8150013 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,80

  Add to cart

9 Screw Available AP8150509

• • Colour: Special Edition
  • "GTL" version
  • Year of manufacture: 2012
  • Year of manufacture: 2013


  Thread Screw Piaggio Group · AP8150509 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart
