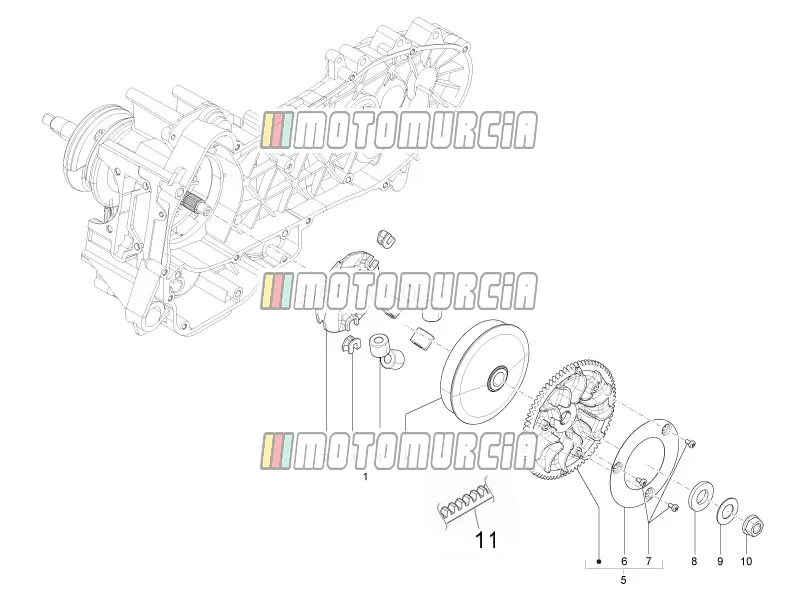

Exploded view — Driving Pulley

‹ Back to model

Derbi Sonar 125 2009

Derbi Sonar 125 2009

Driving Pulley

Products

1 Variator Available CM144402

Variator with 6 rollers Piaggio Group · CM144402 Available

€ 105,98

2 Roller contrast Available 842204

Calotte Piaggio Group · 842204 Available

€ 15,22

3 Variator slider Available 4348555

Slide Piaggio Group · 4348555 · Quantity needed: 3 Available

€ 2,52

4 Roller weights (8,6 g) Available CM1038035

Variator weights 19x17 mm, 9,0 g, Content: 6 Stk Piaggio Group · CM1038035 Available

€ 18,96

5 V-Belt Pulley Available 845607

Pulley halves Piaggio Group · 845607 Available

€ 53,86

6 Plate Available 832715

Bracket Piaggio Group · 832715 Available

€ 26,24

7 Screw Available 015996

Screw M4x12 Piaggio Group · 015996 · Quantity needed: 3 Available

€ 0,99

8 Washer Available 876403

Spacer disc Piaggio Group · 876403 Available

€ 8,49

9 Flat washer Available 831363

Washer Piaggio Group · 831363 Available

€ 2,35

10 Flanged nut M12 Available B015804

Standard nut Piaggio Group · B015804 Available

€ 8,00

11 V-Belt Available 841213

V-Belt, Mitsuboshi Piaggio Group · 841213 Available

€ 66,65
