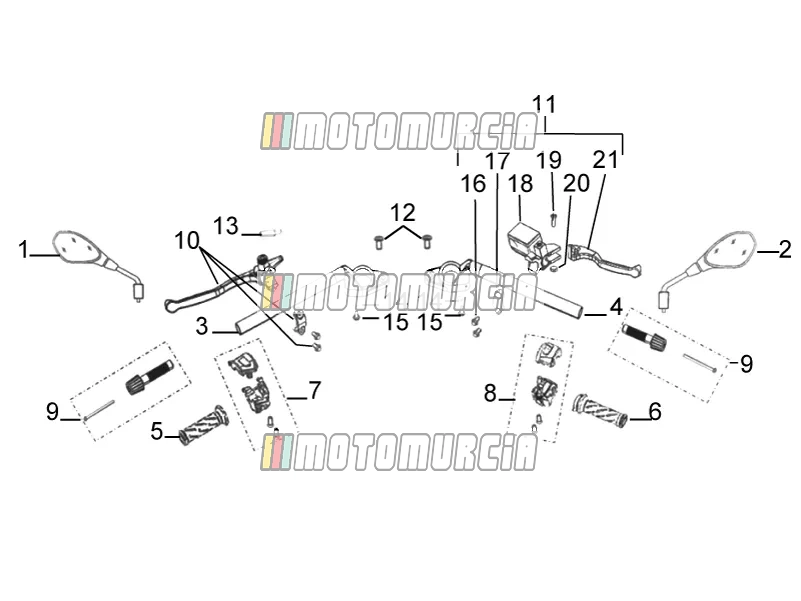

Exploded view — Handlebar Assembly

Products

1 LH rear window Backorder RB000389

•

  Mirror, left Piaggio Group · RB000389 Backorder

  € 24,15

  Add to cart

2 Mirror right Backorder RB000390

•

  Mirror, right Piaggio Group · RB000390 Backorder

  € 24,15

  Add to cart

3 LH handlebar tube Backorder RB000424

•

  Clip On left Piaggio Group · RB000424 Backorder

  € 42,07

  Add to cart

4 RH handlebar tube Backorder RB000425

•

  Clip On right Piaggio Group · RB000425 Backorder

  € 42,07

  Add to cart

5 Grip Left Backorder RB000413

•

  Rubber Grip left Piaggio Group · RB000413 Backorder

  € 3,30

  Add to cart

6 Throttle grip Right Backorder RB000416

•

  Rubber Grip right Piaggio Group · RB000416 Backorder

  € 3,30

  Add to cart

7 LH Controls Backorder RB000426

•

  Combination switch, left Piaggio Group · RB000426 Backorder

  € 16,47

  Add to cart

8 RH controls Backorder RB000429

•

  Combination switch Piaggio Group · RB000429 Backorder

  € 16,47

  Add to cart

9 Handlebar weight Backorder RB000417

•

  Handlebar end weights Piaggio Group · RB000417 Backorder

  € 7,66

  Add to cart

10 Clutch lever Backorder RB000427

•

  Clutch Lever Piaggio Group · RB000427 Backorder

  € 16,94

  Add to cart

11 Brake m.cyl. Backorder RB000274

•

  Master brake cylinder right Piaggio Group · RB000274 Backorder

  € 62,01

  Add to cart

12 Screw (M8x1,25x30) Backorder RB000578

•

  Screw M8x1.25 Piaggio Group · RB000578 · Quantity needed: 2 Backorder

  € 1,71

  Add to cart

13 Handlebar U-bolt cover Backorder RB000428

•

  Screw Piaggio Group · RB000428 Backorder

  € 0,99

  Add to cart

14 Washer Available 006966

•

  Washer 6,4x11x0,5 mm Piaggio Group · 006966 · Quantity needed: 2 Available

  € 1,84

  Add to cart

15 Screw Available 667152

•

  Screw M6x20 Piaggio Group · 667152 · Quantity needed: 2 Available

  € 1,48

  Add to cart

16 Screw Backorder 2R000232

•

  Screw Piaggio Group · 2R000232 · Quantity needed: 2 Backorder

  € 0,99

  Add to cart

17 U-bolt Backorder 2R000224

•

  Handlebar clamp bracket Piaggio Group · 2R000224 Backorder

  € 4,59

  Add to cart

18 Brakes pump Backorder 2R000225

•

  Master brake cylinder right Piaggio Group · 2R000225 Backorder

  € 51,28

  Add to cart

19 Screw Backorder 2R000226

•

  Screw Piaggio Group · 2R000226 Backorder

  € 0,99

  Add to cart

20 Nut Backorder 2R000227

•

  Standard nut Piaggio Group · 2R000227 Backorder

  € 0,99

  Add to cart

21 Brake lever Backorder 2R000228

•

  Brake Lever right Piaggio Group · 2R000228 Backorder

  € 8,98

  Add to cart
