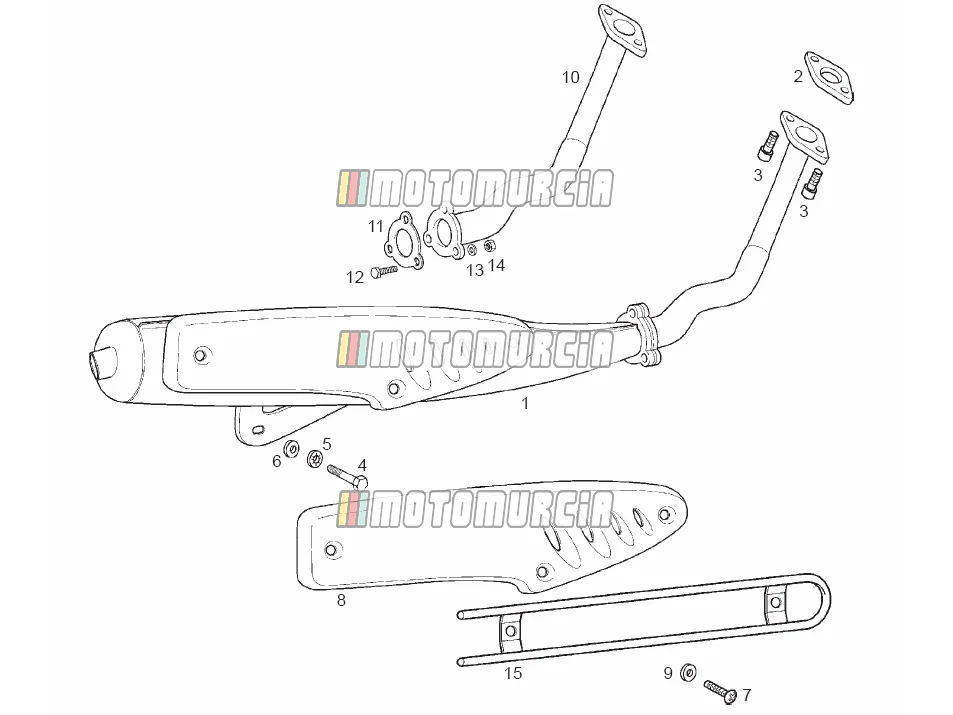

Exploded view — Exhaust Unit

Products

01 CTO.TUBO ESCAPE 00F03434011 No longer available

• 00F03434011 CTO.TUBO ESCAPE
  No longer available

02 Exhaust gasket Available 00008234040

•

  Exhaust Manifold Gasket Piaggio Group · 00008234040 Available

  € 2,06

  Add to cart

03 ALLEN SCREN 6M100X20 00000004620 No longer available

• 00000004620 ALLEN SCREN 6M100X20
  No longer available

04 Screw Available 031120

•

  Screw Piaggio Group · 031120 Available

  € 0,99

  Add to cart

05 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available

  € 1,88

  Add to cart

06 Washer Available 00034000802

•

  Shim Piaggio Group · 00034000802 Available

  € 1,48

  Add to cart

07 ROUNDHEAD PHILIPS SCREW 4MM 00000012410 No longer available

• 00000012410 ROUNDHEAD PHILIPS SCREW 4MM
  No longer available

08 SILENCER PROTECTOR 00F01804392 No longer available

• 00F01804392 SILENCER PROTECTOR
  No longer available

09 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

10 EXHAUST PIPE AND MUFFLER 00F03423011 No longer available

• 00F03423011 EXHAUST PIPE AND MUFFLER
  No longer available

11 Exhaust gasket 00G03400321 No longer available

• 00G03400321 Exhaust gasket
  No longer available

12 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 Available

  € 2,77

  Add to cart

13 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

14 Nut Available 219277

•

  Standard nut Piaggio Group · 219277 Available

  € 0,99

  Add to cart

15 PROTECTOR 00F03401891 No longer available

• 00F03401891 PROTECTOR
  No longer available
