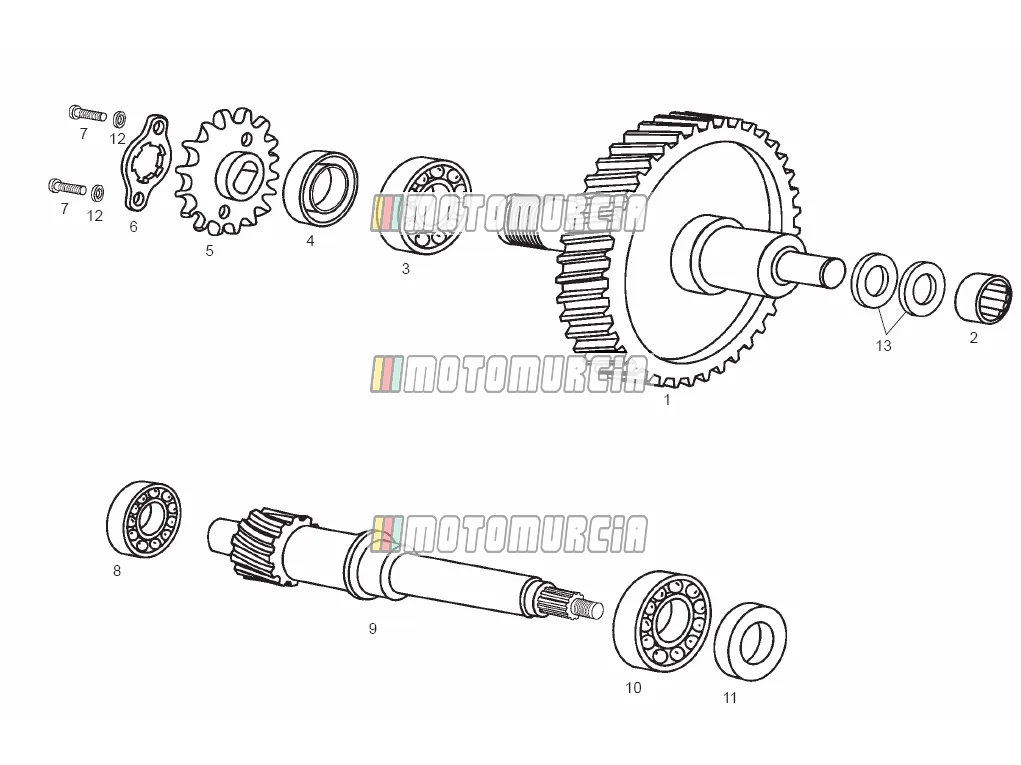

Exploded view — Reduction

‹ Back to model

Derbi Variant Start-Courier 50 2004

Products

1 GEAR 00F04004281 No longer available

00F04004281 GEAR
No longer available

2 BEARING, OUTER DRIVE PULLY 501042 No longer available

501042 BEARING, OUTER DRIVE PULLY
No longer available

3 Bearing 00057120300 No longer available

00057120300 Bearing
No longer available

4 Oil seal Available 847019

Shaft Seal 17x35x7 mm Piaggio Group · 847019 Available

€ 6,90

5 GEARBOX OUTPUT PINION Z-13 00F02804371 No longer available

00F02804371 GEARBOX OUTPUT PINION Z-13
No longer available

6 Plate, drive sprocket fixing Backorder 00H02810421

Plate Piaggio Group · 00H02810421 Backorder

€ 3,80

7 Screw Available 00000004510

Screw Piaggio Group · 00000004510 Available

€ 0,99

8 Bearing 00057030100 No longer available

00057030100 Bearing
No longer available

9 AXLE PULLEYS 00F02801301 No longer available

00F02801301 AXLE PULLEYS
No longer available

10 Bearing 00057000400 No longer available

00057000400 Bearing
No longer available

11 SEAL, OUTPUT SHAFT Available GU90402037

Shaft Seal 20x35x6 mm Piaggio Group · GU90402037 Available

€ 31,00

12 Washer Available AP8150284

Washer Piaggio Group · AP8150284 Available

€ 0,99

13 Washer 00006128280 No longer available

00006128280 Washer
No longer available
