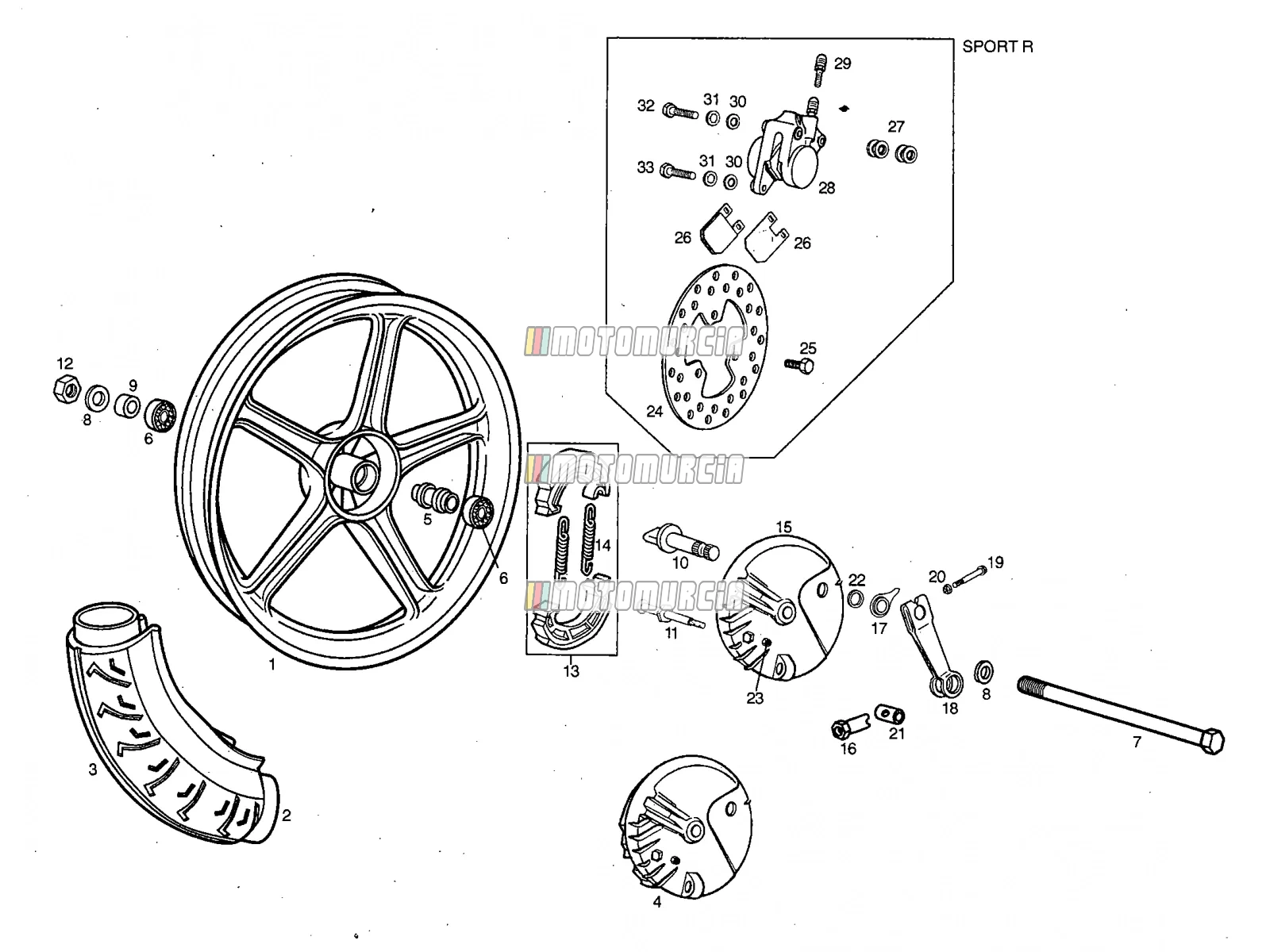

Exploded view — Front Wheel

Products

01 R-CTO.LLANTA DT.NG.MATE VR 98 00F01211952 No longer available

• 00F01211952 R-CTO.LLANTA DT.NG.MATE VR 98
  No longer available
• 00F01209951 R-CTO.LLANTA DT.ROJO-K SP-R 99
  No longer available
• 00F01208952 R-CTO.LLANTA DT.RJ.PIROM.VR RB
  No longer available

02 CAMARA DTR. (MICHELIN) 00F01251101 No longer available

• 00F01251101 CAMARA DTR. (MICHELIN)
  No longer available

03 TYRE 00F01270111 No longer available

• 00F01270111 TYRE
  No longer available

04 R-CTO.TAPA FRE.DT.NEG.V.REVOL. 00F01211401 No longer available

• 00F01211401 R-CTO.TAPA FRE.DT.NEG.V.REVOL.
  No longer available

05 SPACER, WHEEL BEARINGS, FRONT 00F01200031 No longer available

• 00F01200031 SPACER, WHEEL BEARINGS, FRONT
  No longer available
• 00F01201031 SPACER, WHEEL BEARINGS, FRONT
  No longer available

06 Bearing Available 847016

•

  Ball bearing 6201 2RSH C3, 12x32x10 mm Piaggio Group · 847016 Available

  € 11,40

  Add to cart

07 FRONT WHEEL AXLE Front Backorder 00002112260

•

  Wheel Axle front Piaggio Group · 00002112260 Backorder

  € 9,45

  Add to cart
• 00008912260 AXLE, FRONT
  No longer available

08 LEG PROTECTION WASHER 00006512310 No longer available

• 00006512310 LEG PROTECTION WASHER
  No longer available

09 BUSHING 00D01240301 No longer available

• 00D01240301 BUSHING
  No longer available

10 BRAKE SHOES CAM SHAFT 00G01300231 No longer available

• 00G01300231 BRAKE SHOES CAM SHAFT
  No longer available

11 BRAKE SHOE SHAFT 00F01200151 No longer available

• 00F01200151 BRAKE SHOE SHAFT
  No longer available

12 Nut 00232120032 No longer available

• 00232120032 Nut
  No longer available

13 Brake shoe 00G01300931 No longer available

• 00G01300931 Brake shoe
  No longer available

14 Spring 00G01200241 No longer available

• 00G01200241 Spring
  No longer available

15 BRAQUE PANEL, FRONT 00F01202141 No longer available

• 00F01202141 BRAQUE PANEL, FRONT
  No longer available

16 ADJUSTER, REAR BRAKE 00003111120 No longer available

• 00003111120 ADJUSTER, REAR BRAKE
  No longer available

17 FRONT BRAKE SHOE WEAR INDICATO 00G01200721 No longer available

• 00G01200721 FRONT BRAKE SHOE WEAR INDICATO
  No longer available

18 BRAKE LEVER, REAR 00F01203191 No longer available

• 00F01203191 BRAKE LEVER, REAR
  No longer available

19 Screw 00006053000 No longer available

• 00006053000 Screw
  No longer available

20 Nut Backorder 00026005000

•

  Standard nut Piaggio Group · 00026005000 Backorder

  € 1,48

  Add to cart

21 Pin Available 00003111110

•

  Pin Piaggio Group · 00003111110 Available

  € 2,08

  Add to cart

22 Washer 00G01200911 No longer available

• 00G01200911 Washer
  No longer available

23 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

24 Brake disc 00F01203021 No longer available

• 00F01203021 Brake disc
  No longer available

25 Brake disc fixing screw Available 00H02401282

•

  Screw Piaggio Group · 00H02401282 Available

  € 2,93

  Add to cart

26 Brake pads Available 00G04700141

•

  Brake pad set Piaggio Group · 00G04700141 Available

  € 40,85

  Add to cart

27 FRONT BRAKE CYLINDER KIT 00D01200831 No longer available

• 00D01200831 FRONT BRAKE CYLINDER KIT
  No longer available

28 FRONT BRAKE ASSEMBLY 00F02101981 No longer available

• 00F02101981 FRONT BRAKE ASSEMBLY
  No longer available

29 Bleed valve Available 864123

•

  Bleeder Connection Piaggio Group · 864123 Available

  € 59,57

  Add to cart

30 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available

  € 1,88

  Add to cart

31 Washer Available 00034000802

•

  Shim Piaggio Group · 00034000802 Available

  € 1,48

  Add to cart

32 Screw Available 031120

•

  Screw Piaggio Group · 031120 Available

  € 0,99

  Add to cart

33 TOR.C/EXAG.8M125X50 ZnB 00002185000 No longer available

• 00002185000 TOR.C/EXAG.8M125X50 ZnB
  No longer available
