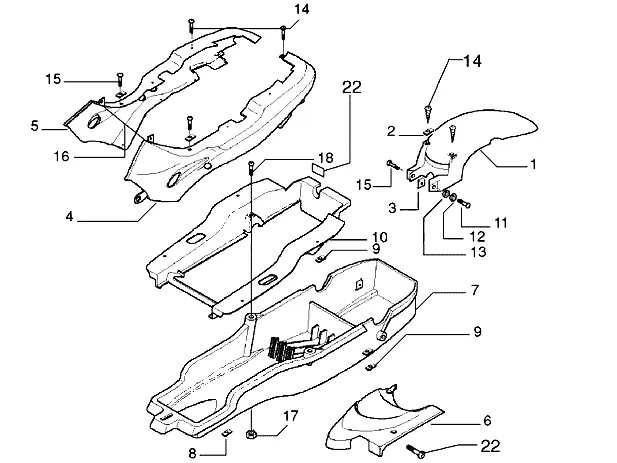

Exploded view — Rear Mudguard-undersaddle

‹ Back to model
Gilera DNA 125 1998–2005 Gilera DNA 125 1998–2005
Rear Mudguard-undersaddle

Products

1 Not available 5768840090 No longer available
  • 5768840090 Not available
    No longer available
3 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available
    € 2,04
4 Fairing 57668350A3 No longer available
  • 57668350A3 Fairing
    No longer available
  • 57668350G9 Fairing,lh.
    No longer available
  • 57668350R7 Fairing
    No longer available
  • 5770965090 Mudguard
    No longer available
  • 57668350N7 Fairing,lh.
    No longer available
5 Not available 6202020090 No longer available
6 Carburettor cover 5771230090 No longer available
  • 5771230090 Carburettor cover
    No longer available
7 Float chamber 5768610090 No longer available
  • 5768610090 Float chamber
    No longer available
9 Clip nuts Available CM017409
  • Sheet nut Piaggio Group · CM017409 · Quantity needed: 12 Available
    € 1,48
10 RIM 970268 No longer available
  • 970268 RIM
    No longer available
11 Screw Available 018640
  • Screw M6x50 Piaggio Group · 018640 Available
    € 0,99
12 Washer Available 003056
13 Washer Available 012533
14 Screw Available 259349
  • Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 14 Available
    € 0,99
15 Screw (M6x16) Available 575249
  • Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available
    € 0,99
17 Nut Available 479175
  • Dome nut Piaggio Group · 479175 · Quantity needed: 4 Available
    € 1,48
18 Screw (M6x40) Available CM179304
  • Torx screw Piaggio Group · CM179304 · Quantity needed: 2 Available
    € 1,48
20 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available
    € 0,99
21 Rivet 576900 No longer available
  • 576900 Rivet Quantity needed: 2
    No longer available
22 Bracket Available 290405
  • Bracket Piaggio Group · 290405 · Quantity needed: 2 Available
    € 1,79
23 Bush 577092 No longer available
  • 577092 Bush Quantity needed: 2
    No longer available
24 Screw (M6x22) Available CM179302
  • Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 2 Available
    € 1,48
25 Nut Available 020106
  • Standard nut M6 Piaggio Group · 020106 · Quantity needed: 2 Available
    € 1,84
26 Seeger Available 829376
  • Locking Ring Piaggio Group · 829376 · Quantity needed: 2 Available
    € 2,54

More drawings of this model

View all →
