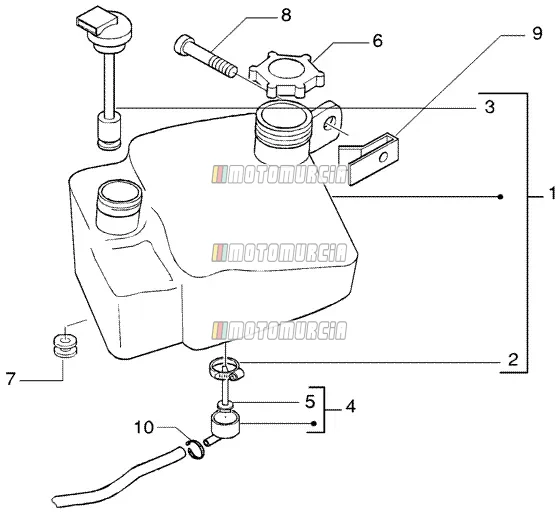

Exploded view — Mix Oil Tank

Products

1 Tank 970071 No longer available

• 970071 Tank
  No longer available

2 Hose Clamp Available 577557

• 577557 Hose Clamp


  Clamp Piaggio Group · 879888 ↻ Replaces 577557, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 8,91

  Add to cart

3 Carburetor, Float assy Available 573080

•

  Oil level guage, 4-pole Piaggio Group · 573080 Available · Shipped in 3–5 working days

  € 64,19

  Add to cart

4 Complete coupling Available 574362

•

  Nozzle Piaggio Group · 574362 Available · Shipped in 3–5 working days

  € 6,20

  Add to cart

5 O-Ring Available 196868

•

  Gasket Piaggio Group · 196868 Available · Shipped in 3–5 working days

  € 3,36

  Add to cart

6 Cap oil filler Available 259829

•

  Tank Cap Piaggio Group · 259829 Available · Shipped in 3–5 working days

  € 6,20

  Add to cart

7 Pad Available 939278

•

  Buffer Piaggio Group · 939278 Available · Shipped in 3–5 working days

  € 4,89

  Add to cart

8 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

9 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

10 Clamp Available CM002903

•

  Clamp Piaggio Group · CM002903 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
