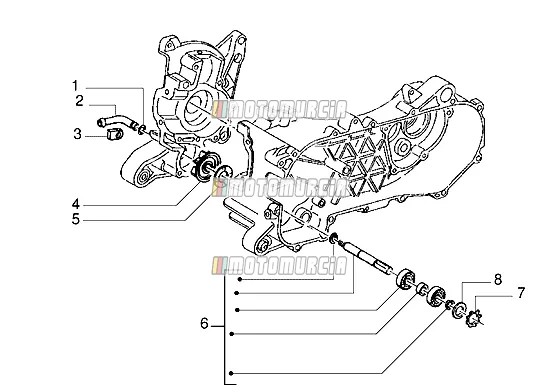

Exploded view — Cooler Pump

Products

1 O-Ring Available 289254

•

  O-Ring Piaggio Group · 289254 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

2 Water outlet union Available 832925

• 832925 Water outlet union
  • Carburettor version (C364M)


  Hose Connection Piaggio Group · 878910 ↻ Replaces 832925, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 17,28

  Add to cart

3 Slide piece 289593 No longer available

• 289593 Slide piece
  No longer available

4 Impeller Available 487730

•

  Water Pump Wheel Piaggio Group · 487730 Available · Shipped in 3–5 working days

  € 18,91

  Add to cart

5 Disc Available 289558

•

  Sealing Disk Piaggio Group · 289558 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

6 Shaft pin Available 2895085

• 2895085 Shaft pin


  Water Pump Piaggio Group · 497406 ↻ Replaces 2895085, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 50,20

  Add to cart

7 Seeger Available 289553

•

  Locking Ring Piaggio Group · 289553 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

8 Washer Available 289554

•

  Washer Piaggio Group · 289554 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
