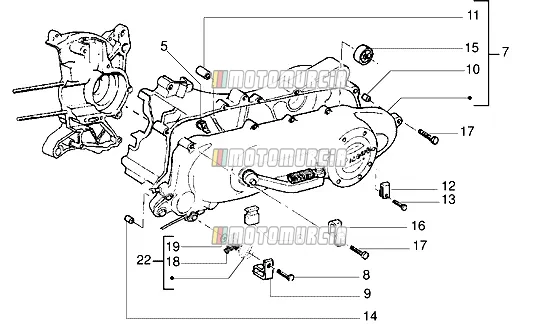

Exploded view — Clutch Cover
‹ Back to model
Gilera DNA 50 2000
Products
5 Plate
-
286206 PlateNo longer available
6 Rubber, stand stopper Available
-
Rubber stop 20x19x30 mm Piaggio Group · 259625 Available · Shipped in 3–5 working days€ 4,88
7 Transmission cover Available
-
Housing cover Piaggio Group · 8256465 Available · Shipped in 3–5 working days€ 160,72
8 Screw Available
-
- iGET version
Screw M6x35 Piaggio Group · 414838 · Quantity needed: 13 Available · Shipped in 3–5 working days€ 1,48
9 Clamp Available
-
Clamp Piaggio Group · 271451 Available · Shipped in 3–5 working days€ 3,21
10 Pin 6.5x9.5x15 mm Backorder
-
239388 Pin 6.5x9.5x15 mm Quantity needed: 2Adapter Sleeve 9,5x15 Piaggio Group · B015956 ↻ Replaces 239388, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 1,32
11 Bush Available
-
Bronze Bushes Piaggio Group · 286209 Available · Shipped in 3–5 working days€ 2,93
12 Plate Available
-
- Type approval ZD4TGB***
Plate Piaggio Group · 564497 Available · Shipped in 3–5 working days€ 1,45
13 Flanged hexagon screw M6x25 Available
-
414837 Flanged hexagon screw M6x25
- ABS version
- Year of manufacture: 2009
Hexagon Screw M6x25 Piaggio Group · B016774 ↻ Replaces 414837, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,48
14 Bush Available
-
286143 BushBronze Bushes 8x12x8 Piaggio Group · 431860 ↻ Replaces 286143, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,65
15 Bearing Available
-
Ball bearing 638 Z, 8x28x9 mm Piaggio Group · 82521R Available · Shipped in 3–5 working days€ 23,82
16 Hose clamp Available
-
Clamp Piaggio Group · 216983 Available · Shipped in 3–5 working days€ 2,63
17 Screw Available
-
- iGET version
Screw M6x35 Piaggio Group · 414838 Available · Shipped in 3–5 working days€ 1,48
18 Filter Available
-
Filter Insert Piaggio Group · 826462 Available · Shipped in 3–5 working days€ 1,73
19 Plate Available
-
- Type approval ZD4TGB***
Plate Piaggio Group · 564497 Available · Shipped in 3–5 working days€ 1,45
22 Plug with filter Available
-
826442 Plug with filterCover with filter, for secondary air system Piaggio Group · 848860 ↻ Replaces 826442, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 5,31
