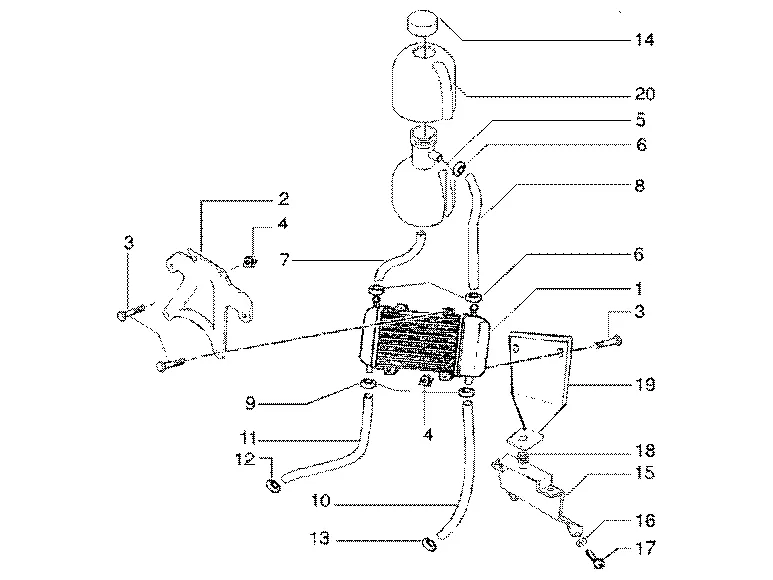

Exploded view — Expansion Tank-cooler
‹ Back to model
Gilera DNA GP Experience 1998–2005
Products
1 Radiator - water cooler
-
299389 Radiator - water coolerNo longer available
2 Bracket
-
970075 BracketNo longer available
3 Screw Available
-
Screw M6x16 Piaggio Group · 272836 · Quantity needed: 4 Available€ 1,39
4 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available€ 2,04
5 Not available Available
-
Expansion Tank Piaggio Group · 577969 Available€ 45,41
6 Clamp Available
-
Hose Clamp Piaggio Group · CM001903 · Quantity needed: 3 Available€ 2,18
7 Pipe Backorder
-
Pipe Piaggio Group · 970262 Backorder€ 20,90
8 Pipe
-
970261 PipeNo longer available
9 Clamp Available
-
Clamp Piaggio Group · CM001904 Available€ 1,72
10 Pipe
-
970190 PipeNo longer available
11 Pipe Available
-
Hose Piaggio Group · 970191 Available€ 46,20
12 Clamp Available
-
Hose Clamp Piaggio Group · CM001905 · Quantity needed: 3 Available€ 1,82
13 Clamp Available
-
Hose Clamp Piaggio Group · CM001909 Available€ 2,18
14 Tank cap Available
-
Tank Cap Piaggio Group · 623673 Available€ 19,66
15 Bracket
-
970076 BracketNo longer available
16 Washer Available
-
Spring Washer Piaggio Group · 479515 · Quantity needed: 2 Available€ 0,99
17 Screw Available
-
Screw M6x12 Piaggio Group · 274369 · Quantity needed: 2 Available€ 0,99
18 Damper Available
-
Buffer Piaggio Group · 258904 Available€ 2,17
19 Bracket
-
970187 BracketNo longer available
20 Cover
-
576678 CoverNo longer available
