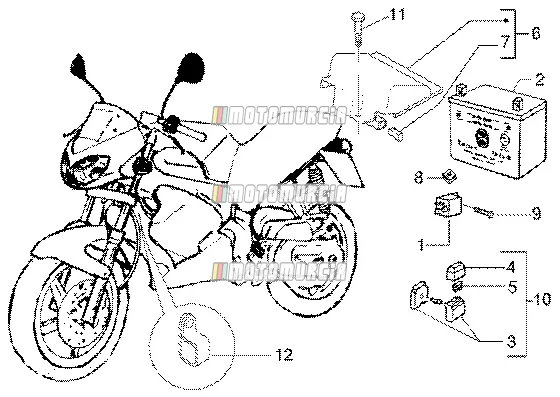

Exploded view — Battery-remote Control Switch

Products

1 Remote control switch 80A Available 583337

• 583337 Remote control switch 80A


  Starting Relay 12 V, 80 A Piaggio Group · 58115R ↻ Replaces 583337, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 24,91

  Add to cart
• 584319 Remote control switch


  Starting Relay 12 V, 80 A Piaggio Group · 58115R ↻ Replaces 584319, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 24,91

  Add to cart

2 Battery 294816 No longer available

• 294816 Battery
  No longer available

3 Bracket Available 290405

•

  Bracket Piaggio Group · 290405 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

4 Cover Available 290404

•

  Lid Piaggio Group · 290404 Available · Shipped in 3–5 working days

  € 9,08

  Add to cart

5 Fuse (7,5A) Available 252945

• • Country: Australia
  • Country: Europe
  • Country: Indonesia-Malaysia-New Zealand-Singapore


  Fuse 7,5 A Piaggio Group · 252945 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart

6 Battery cover 970216 No longer available

• 970216 Battery cover
  No longer available

7 Pad 967491 No longer available

• 967491 Pad Quantity needed: 2
  No longer available

8 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

9 Flanged hexagon screw M6x16 Available 434541

• 434541 Flanged hexagon screw M6x16
  • For cast iron cylinder
  • Taiwan


  Flanged Screw M6x16 Piaggio Group · B016777 ↻ Replaces 434541, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

10 Fuse holder Available 290402

•

  Fuse Box Piaggio Group · 290402 Available · Shipped in 3–5 working days

  € 10,93

  Add to cart

11 Screw Available 272836

• • Country: United States of America


  Screw M6x16 Piaggio Group · 272836 Available · Shipped in 3–5 working days

  € 1,39

  Add to cart

13 Hose clamp Available 573918

• • "Italy" special series


  Clamp Piaggio Group · 573918 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart
