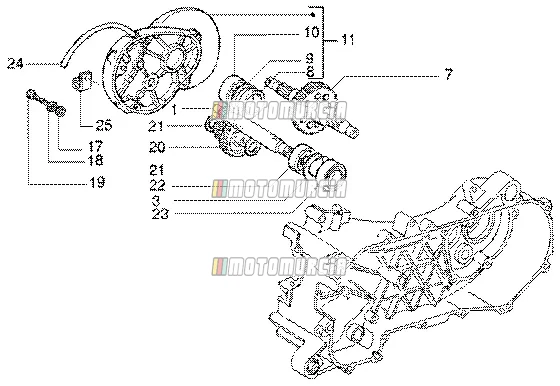

Exploded view — Rear Wheel Shaft

Products

1 Driven pulley shaft Z=13 (Z=13) Available 8282335

•

  Input Shaft Number of Teeth: 13 Piaggio Group · 8282335 Available · Shipped in 3–5 working days

  € 156,85

  Add to cart

3 Seeger Available 480953

•

  Snap-in Ring Piaggio Group · 480953 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

7 Rear wheel axis cpl. 4871615 No longer available

• 4871615 Rear wheel axis cpl.
  No longer available

8 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 Available · Shipped in 3–5 working days

  € 6,98

  Add to cart

9 Seeger Available 006647

• • Country: Indonesia


  Circlip Ø 47,00 mm Piaggio Group · 006647 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

10 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 Available · Shipped in 3–5 working days

  € 18,77

  Add to cart

11 Cover 8300245 No longer available

• 8300245 Cover
  No longer available

17 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

18 Washer Available 012540

•

  Washer 14x8,3x1,8 mm Piaggio Group · 012540 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 1,21

  Add to cart

19 Screw M8x45 Available 030075

• 030075 Screw M8x45 Quantity needed: 5


  Flanged Screw M8x45 Piaggio Group · B016805 ↻ Replaces 030075, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

20 Transmission shaft 8325365 No longer available

• 8325365 Transmission shaft
  No longer available
• 9698035 Shaft pin
  No longer available

21 Shim washer Available 288639

•

  Washer Piaggio Group · 288639 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

22 Bearing Available 942135

• 942135 Bearing


  Ball bearing 6203, 17x40x12 mm Piaggio Group · 435363 ↻ Replaces 942135, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 11,19

  Add to cart

23 Gasket ring Available 480066

•

  Shaft Seal 28x17x5 mm Piaggio Group · 480066 Available · Shipped in 3–5 working days

  € 12,17

  Add to cart

24 Reduction unit breather pipe assembly Available 826874

• 826874 Reduction unit breather pipe assembly


  Breather Pipe Piaggio Group · 830862 ↻ Replaces 826874, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 10,54

  Add to cart

25 Hose clamp Available 483638

•

  Clamp Piaggio Group · 483638 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart
