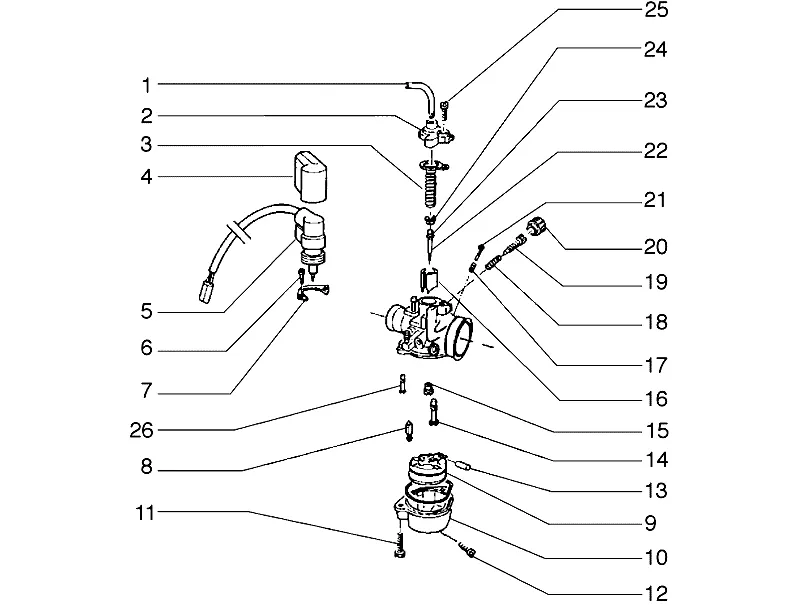

Exploded view — Carburettor

Products

1 Baffle tube Available 113903

•

  Guide tube Piaggio Group · 113903 Available

  € 6,92

  Add to cart

2 Gas valve cover Available 431654

•

  Lid, Dell Orto Piaggio Group · 431654 Available

  € 5,51

  Add to cart
• CM109001 Gas valve cover
  No longer available

3 Gas valve spring 435694 No longer available

• 435694 Gas valve spring
  No longer available
•

  Spring Piaggio Group · 482942 Available

  € 1,69

  Add to cart

4 Cap 435704 No longer available

• 435704 Cap
  No longer available
•

  Covering Cap Piaggio Group · 485671 Backorder

  € 10,16

  Add to cart

5 Starter plunger Available CM105905

•

  Choke elektrisch, Dell Orto Piaggio Group · CM105905 Available

  € 174,53

  Add to cart
• CM106002 Starter plunger (Weber)
  No longer available

6 Screw (Spec.) 435686 No longer available

• 435686 Screw (Spec.) Quantity needed: 2
  No longer available
•

  Screw Piaggio Group · 289575 · Quantity needed: 2 Available

  € 2,41

  Add to cart

7 Plate 435685 No longer available

• 435685 Plate
  No longer available
•

  Bracket Piaggio Group · 288863 Available

  € 2,77

  Add to cart

8 Jet Needle (Weber) 435708 No longer available

• 435708 Jet Needle (Weber)
  No longer available
•

  Float Needle Piaggio Group · CM128501 Available

  € 13,94

  Add to cart

9 Float 435703 No longer available

• 435703 Float
  No longer available
•

  Float Dell Orto Piaggio Group · 482916 Available

  € 19,48

  Add to cart

10 Float chamber 827037 No longer available

• 827037 Float chamber
  No longer available
•

  Float Chamber Dell Orto Piaggio Group · 484704 Available

  € 26,45

  Add to cart

11 Screw Available 288862

•

  Screw Piaggio Group · 288862 · Quantity needed: 2 Available

  € 3,36

  Add to cart
• 435684 Screw (Spec.) Quantity needed: 2
  No longer available

12 Screw Available 432456

•

  Screw Piaggio Group · 432456 Available

  € 8,91

  Add to cart

13 Pin 435702 No longer available

• 435702 Pin
  No longer available
•

  Pin Piaggio Group · 288881 Available

  € 2,06

  Add to cart

14 Idle jet (32) Available CM102103

•

  Idle Jet Piaggio Group · CM102103 Available

  € 4,34

  Add to cart
• CM108501 Idle jet
  No longer available

15 Main jet 60 CM101811 No longer available

• CM101811 Main jet 60
  No longer available
•

  Main jet Size: 53 Piaggio Group · CM101704 Available

  € 12,15

  Add to cart
•

  Main jet Size: 56 Piaggio Group · CM101707 Available

  € 6,13

  Add to cart

16 Gas valve (17.5) Available CM141710

•

  Throttle Slide Piaggio Group · CM141710 Available

  € 9,15

  Add to cart
• CM108902 Gas valve
  No longer available

17 Spring Available 085285

•

  Spring Piaggio Group · 085285 Available

  € 1,37

  Add to cart
• 435697 Spring
  No longer available

18 Spring Available 152608

•

  Spring Piaggio Group · 152608 Available

  € 1,40

  Add to cart
• 435699 Spring
  No longer available

19 Adjusting screw 825155 No longer available

• 825155 Adjusting screw
  No longer available
•

  Idle Adjustment Screw Piaggio Group · 288880 Available

  € 11,95

  Add to cart

20 Knob Available 288878

•

  Handle Piaggio Group · 288878 Available

  € 2,53

  Add to cart

21 Air adjuster screw Available CM107701

•

  Adjusting Screw Piaggio Group · CM107701 Available

  € 7,82

  Add to cart
• CM110501 Screw
  No longer available

22 Conical pin Available CM107510

•

  Metering Needle Piaggio Group · CM107510 Available

  € 18,97

  Add to cart
• CM107816 Conical pin
  No longer available

23 Seeger Available 288872

•

  Tapered Needle Clip Dell Orto Piaggio Group · 288872 Available

  € 1,59

  Add to cart
• 435692 O-Ring
  No longer available

24 Conical pin clip Available 288873

•

  Tapered Needle Clip Dell Orto Piaggio Group · 288873 Available

  € 2,59

  Add to cart
• CM108401 Lock
  No longer available

25 Screw Available 288865

•

  Screw Piaggio Group · 288865 Available

  € 1,40

  Add to cart
• 435688 Screw (Spec.)
  No longer available

26 Starter jet CM102702 No longer available

• CM102702 Starter jet
  No longer available
• 431635 Starter jet 3/8
  No longer available
