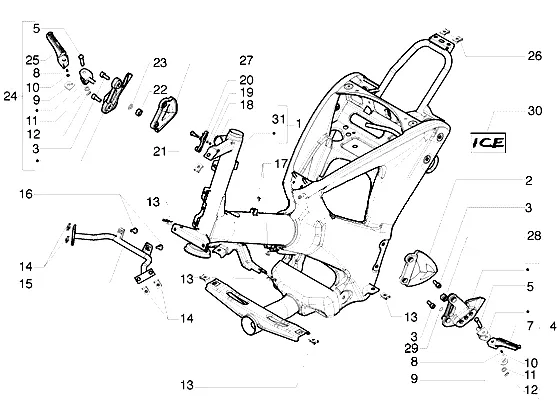

Exploded view — Frame
‹ Back to model
Gilera Ice 1998–2005
Products
1 Frame
-
57620050BB FrameNo longer available
2 Plug
-
CM0112010043 PlugNo longer available
3 Screw Available
-
Screw M8x20 Piaggio Group · 599009 · Quantity needed: 4 Available€ 1,72
4 Footrest passenger r.h.
-
CM010702 Footrest passenger r.h.No longer available
5 Pin Available
-
Bolts Piaggio Group · 295593 · Quantity needed: 2 Available€ 5,43
7 Foot rest
-
574226 Foot restNo longer available
8 Return spring
-
295590 Return spring Quantity needed: 2No longer available
9 Plate
-
573596 Plate Quantity needed: 2No longer available
10 Ball D6
-
295591 Ball D6 Quantity needed: 2No longer available
12 Elastic spring Available
-
Split Pin Piaggio Group · 259933 · Quantity needed: 2 Available€ 0,99
14 Clip nuts Available
-
Sheet nut M5 Piaggio Group · 248419 · Quantity needed: 4 Available€ 2,35
15 Front bumper tube Backorder
-
Strut Brace Piaggio Group · 576579 Backorder€ 46,80
16 Screw Available
-
Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available€ 1,39
17 Expansion plug Available
-
Expansion Anchor white, quadrangular Piaggio Group · 199190 · Quantity needed: 2 Available€ 0,99
18 Nut M4 Available
-
Standard nut Piaggio Group · 020104 Available€ 0,99
19 Washer (spring) Available
-
Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 Available€ 0,99
20 Pawl Available
-
Lever Piaggio Group · 299902 Available€ 2,27
21 Screw Available
-
Screw M4 Piaggio Group · 299972 Available€ 1,43
22 Nut Available
-
Standard nut Piaggio Group · 020110 Available€ 1,79
23 Washer Available
-
Washer 15x8,4x1,5 mm Piaggio Group · 003058 Available€ 1,84
24 Footrest passenger l.h.
-
CM010701 Footrest passenger l.h.No longer available
25 Foot rest Available
-
Footrest right Piaggio Group · 574227 Available€ 9,92
26 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available€ 2,04
27 Plug Backorder
-
Lid Piaggio Group · CM0112020043 Backorder€ 22,34
29 Washer (spring) Available
-
Washer 17,6x11x2,5 mm Piaggio Group · 016410 · Quantity needed: 4 Available€ 0,99
30 Name plate
-
57711200RD Name plate Quantity needed: 2No longer available
-
57711200G4 Name plate Quantity needed: 2No longer available
31 Lock support Available
-
Lock Mounting Piaggio Group · 298604 Available€ 43,14
