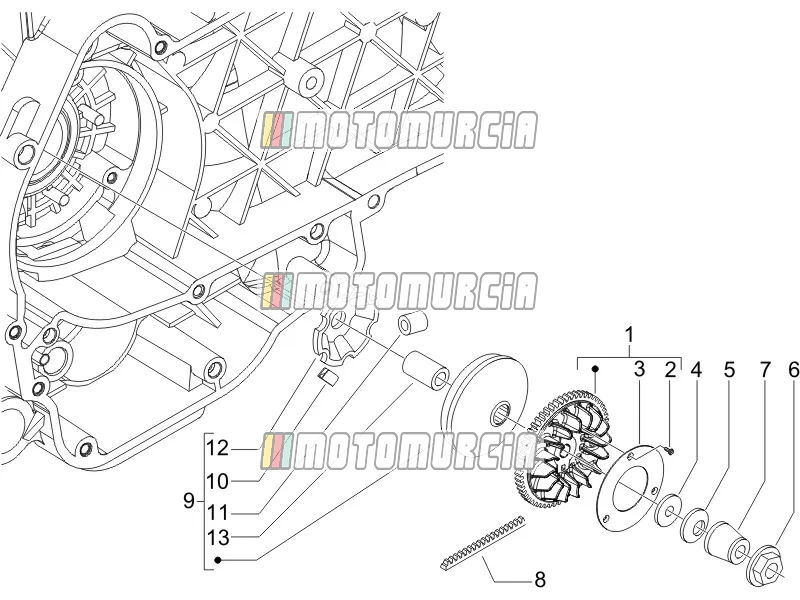

Exploded view — Driving Pulley

Products

1 V-Belt Pulley Available 845607

•

  Pulley halves Piaggio Group · 845607 Available

  € 53,86

  Add to cart

2 Screw Available 015996

•

  Screw M4x12 Piaggio Group · 015996 · Quantity needed: 3 Available

  € 0,99

  Add to cart

3 Plate Available 832715

•

  Bracket Piaggio Group · 832715 Available

  € 26,24

  Add to cart

4 Plain washer Available 433391

•

  Shim Piaggio Group · 433391 Available

  € 4,96

  Add to cart

5 Washer Available 434885

•

  Shim Piaggio Group · 434885 Available

  € 2,35

  Add to cart

6 Flanged nut M12 Available B015804

•

  Standard nut Piaggio Group · B015804 Available

  € 8,00

  Add to cart

7 Teethed bush Available 827386

•

  Star disk 34,58x17,1x4 mm Piaggio Group · 827386 Available

  € 17,81

  Add to cart

8 V-Belt Available 841213

•

  V-Belt, Mitsuboshi Piaggio Group · 841213 Available

  € 66,65

  Add to cart

9 Variator Available CM144403

•

  Variator with 6 rollers Piaggio Group · CM144403 Available

  € 103,14

  Add to cart

10 Variator slider Available 4348555

•

  Slide Piaggio Group · 4348555 · Quantity needed: 3 Available

  € 2,52

  Add to cart

11 Roller weights (7,3 g) Available CM1038045

•

  Variator weights 19x17 mm, 7,4 g, Content: 6 Stk Piaggio Group · CM1038045 · Quantity needed: 6 Available

  € 18,68

  Add to cart

12 Roller contrast Available 842204

•

  Calotte Piaggio Group · 842204 Available

  € 15,22

  Add to cart

13 Spacer Available 483889

•

  Converter Hub Piaggio Group · 483889 Available

  € 39,86

  Add to cart
