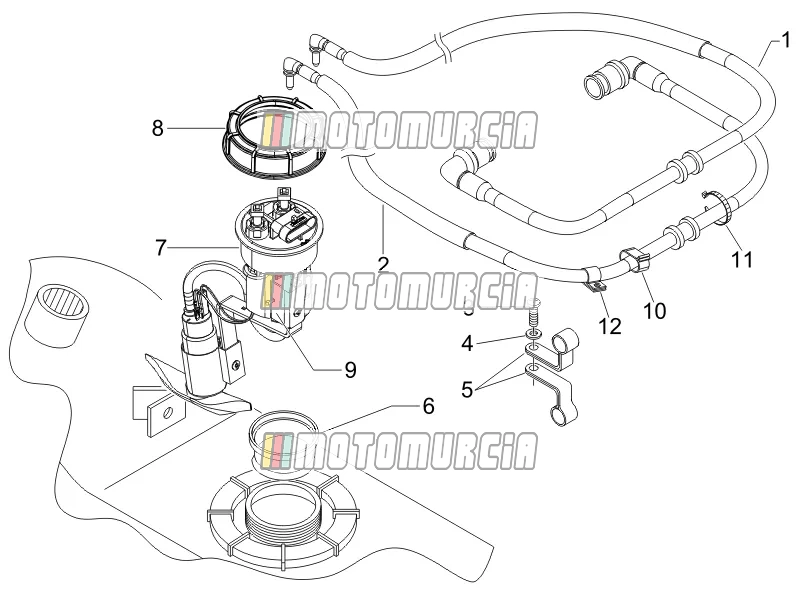

Exploded view — Supply System

‹ Back to model

Gilera Nexus 250 2007

Gilera Nexus 250 2007

Supply System

Products

1 Pipe cpl. Backorder 624002

Return Pipe Piaggio Group · 624002 Backorder

€ 99,12

3 Screw Available 1A003109

Screw M5x16 Piaggio Group · 1A003109 Available

€ 1,45

4 Washer Available 012528

Washer Piaggio Group · 012528 Available

€ 1,44

5 Hose clamp Available 273779

Clamp Piaggio Group · 273779 · Quantity needed: 2 Available

€ 2,27

6 Gasket Available 656003

Gasket Piaggio Group · 656003 Available

€ 26,78

7 Fuel pump Available 639492

Petrol Pump Piaggio Group · 639492 Available

€ 566,97

8 Ring nut Available 576546

Tank Cap Piaggio Group · 576546 Available

€ 8,40

9 Fuel filter Available 641277

Petrol Filter Piaggio Group · 641277 Available

€ 82,32

10 Non return spring l=27 Available CM006904

Clamp length: 27mm Piaggio Group · CM006904 Available

€ 2,95

11 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

€ 1,43

12 Hose clamp Backorder 675510

Clamp Piaggio Group · 675510 Backorder

€ 4,44
