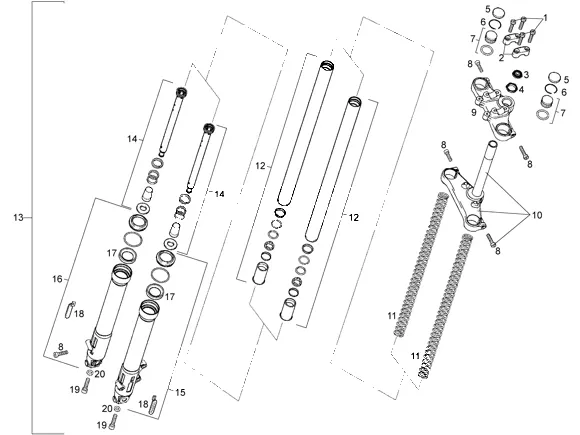

Exploded view — Front Fork

‹ Back to model
Gilera RCR 1998–2005 Gilera RCR 1998–2005
Front Fork

Products

1 Screw 8m125x40 ODN00000004840 No longer available
  • ODN00000004840 Screw 8m125x40
    No longer available
2 U-bolt 00H00203742 No longer available
  • 00H00203742 U-bolt
    No longer available
3 SUPL.DUSTGUARD Backorder 00H00202761
  • Dust guard Piaggio Group · 00H00202761 Backorder
    € 27,65
4 Nut 00H00204601 No longer available
  • 00H00204601 Nut
    No longer available
5 RESERVOIR Backorder 00H02003541
  • Lid Piaggio Group · 00H02003541 Backorder
    € 11,18
6 O-Ring 00H00202501 No longer available
  • 00H00202501 O-Ring
    No longer available
7 FORK TUBE CAP Backorder 00H00205271
  • Fork Leg Piaggio Group · 00H00205271 Backorder
    € 76,35
8 Screw Available 00000004835
9 HANDLEBAR LOCK CLAMP 00H00213092 No longer available
  • 00H00213092 HANDLEBAR LOCK CLAMP
    No longer available
10 LOWER TRIPLE CLAMP 00H00211012 No longer available
  • 00H00211012 LOWER TRIPLE CLAMP
    No longer available
11 FORK SPRING 00H00211171 No longer available
  • 00H00211171 FORK SPRING
    No longer available
12 Sleeve ODN00H02003871 No longer available
  • ODN00H02003871 Sleeve
    No longer available
13 Fork assy. 00H00226002 No longer available
  • 00H00226002 Fork assy.
    No longer available
14 DAMPER TUBE 00H00203531 No longer available
  • 00H00203531 DAMPER TUBE
    No longer available
15 RH. FORK TUBE LOWER 00H02011031 No longer available
  • 00H02011031 RH. FORK TUBE LOWER
    No longer available
16 LH. FORK TUBE LOWER 00H02012041 No longer available
  • 00H02012041 LH. FORK TUBE LOWER
    No longer available
17 Fork oil seal Available 00H00204471
18 Reflector Available 00H01802081
  • Reflector Piaggio Group · 00H01802081 Available
    € 13,98
19 SCREW M10X35 Backorder 00004013500
  • Screw M10x35 Piaggio Group · 00004013500 Backorder
    € 4,63
20 Plain washer d.10 ODN00000031100 No longer available
  • ODN00000031100 Plain washer d.10
    No longer available
