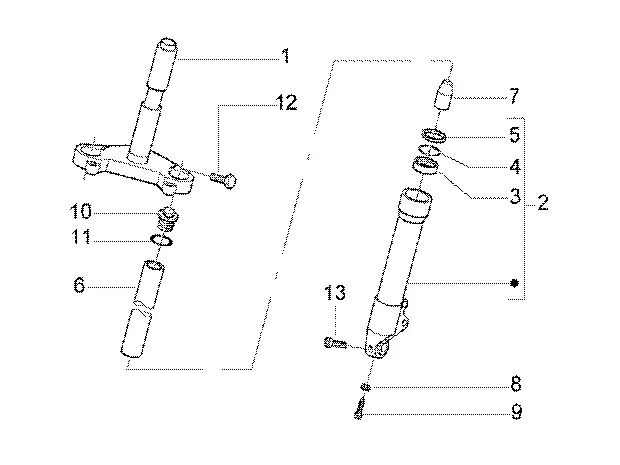

Exploded view — Mvp Front Fork Component Parts

Products

1 Sterms bracket 598183 No longer available

• 598183 Sterms bracket
  No longer available

2 Sleeve 598187 No longer available

• 598187 Sleeve
  No longer available
• 598188 Sleeve
  No longer available

3 Fork oil seal Available 598190

•

  Fork Seal 6362 NTK, 35x47x8,9 mm Piaggio Group · 598190 · Quantity needed: 2 Available

  € 19,47

  Add to cart

4 Oil seal 598192 No longer available

• 598192 Oil seal Quantity needed: 2
  No longer available

5 Fork dust seal 598191 No longer available

• 598191 Fork dust seal Quantity needed: 2
  No longer available

6 Sleeve 598199 No longer available

• 598199 Sleeve Quantity needed: 2
  No longer available

7 Pad 598193 No longer available

• 598193 Pad Quantity needed: 2
  No longer available

8 Washer Available 598181

•

  Copper Flange Gasket 8x13x1,4 mm Piaggio Group · 598181 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 Screw 598180 No longer available

• 598180 Screw Quantity needed: 2
  No longer available

10 Cover 598198 No longer available

• 598198 Cover Quantity needed: 2
  No longer available

11 O-Ring 598194 No longer available

• 598194 O-Ring Quantity needed: 2
  No longer available

12 Screw 601130 No longer available

• 601130 Screw Quantity needed: 4
  No longer available

13 Screw Available 598189

•

  Screw Piaggio Group · 598189 · Quantity needed: 2 Available

  € 2,46

  Add to cart
