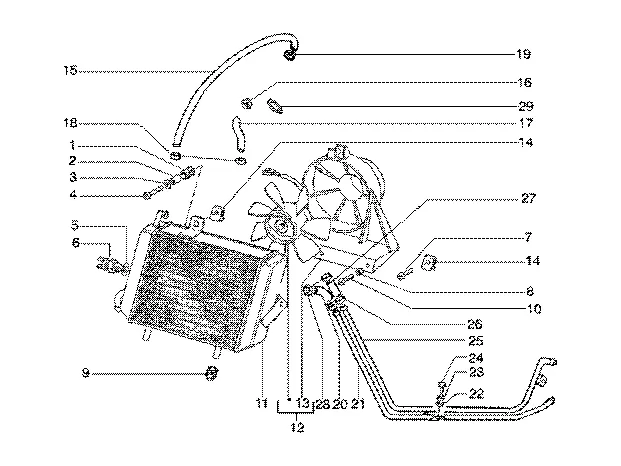

Exploded view — Cooling System

Products

1 Upper rubber Available 351782

•

  Buffer Piaggio Group · 351782 Available

  € 2,67

  Add to cart

2 Spacer Available 273288

•

  Spacer Piaggio Group · 273288 Available

  € 2,18

  Add to cart

3 Washer d6,2x20x1 Available 013092

•

  Washer 6,2x20x1 mm Piaggio Group · 013092 Available

  € 1,26

  Add to cart

4 Screw Available 271891

•

  Screw M6x30 Piaggio Group · 271891 Available

  € 1,59

  Add to cart

5 Copper gasket Available 168077

•

  Copper Flange Gasket Piaggio Group · 168077 Available

  € 5,63

  Add to cart

6 Water temperature switch Available 293301

•

  Thermal switch Piaggio Group · 293301 Available

  € 25,89

  Add to cart

7 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 3 Available

  € 1,48

  Add to cart

8 Nut Available 012112

•

  Standard nut Piaggio Group · 012112 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 Damper Available 258904

•

  Buffer Piaggio Group · 258904 · Quantity needed: 2 Available

  € 2,17

  Add to cart

10 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 Radiator - water cooler 299388 No longer available

• 299388 Radiator - water cooler
  No longer available
•

  Radiator Piaggio Group · 57301R Available

  € 507,47

  Add to cart

12 Fan engine 580922 No longer available

• 580922 Fan engine
  No longer available

13 Maintenance 299382 No longer available

• 299382 Maintenance
  No longer available

14 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available

  € 2,04

  Add to cart

15 Oil delivery pipe 573059 No longer available

• 573059 Oil delivery pipe
  No longer available
• 621564 Coolant tank-cooler feed pipe
  No longer available

16 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart

17 Return pipe 573060 No longer available

• 573060 Return pipe
  No longer available

19 Clamp Available CM001903

•

  Hose Clamp Piaggio Group · CM001903 Available

  € 2,18

  Add to cart

20 Joint 299943 No longer available

• 299943 Joint
  No longer available

21 Radiator hose 299940 No longer available

• 299940 Radiator hose
  No longer available
• 575264 Radiator hose
  No longer available

22 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available

  € 1,79

  Add to cart

23 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 Available

  € 1,84

  Add to cart

24 Screw Available 031088

•

  Screw M6x16 Piaggio Group · 031088 Available

  € 1,51

  Add to cart

25 Radiator hose 299939 No longer available

• 299939 Radiator hose
  No longer available
• 575262 Radiator hose
  No longer available

26 Clamp Available CM001907

•

  Hose Clamp Piaggio Group · CM001907 · Quantity needed: 2 Available

  € 2,19

  Add to cart

27 Joint 299944 No longer available

• 299944 Joint
  No longer available

29 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart
