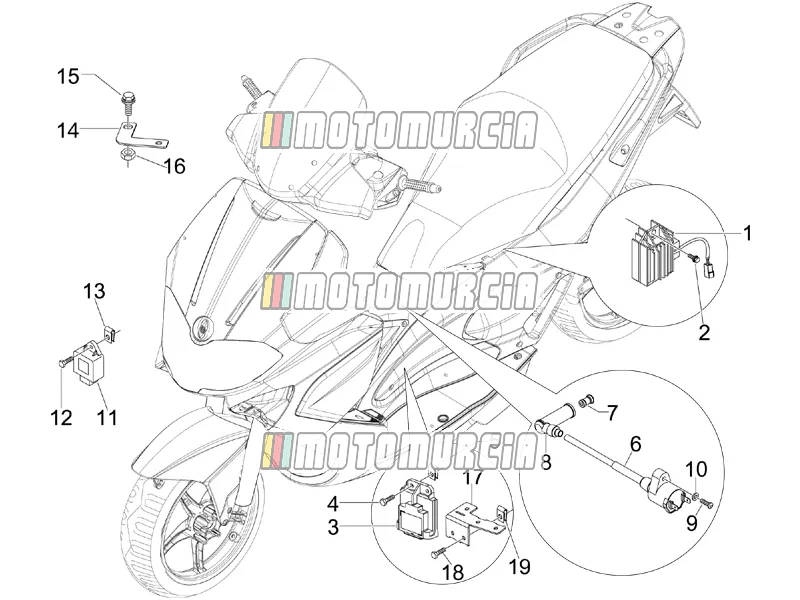

Exploded view — Voltage Regulators - Electronic Control Units (ecu) - H.t. Coil

Products

1 Voltage regulator 58090R5 No longer available

• 58090R5 Voltage regulator
  No longer available

2 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 2 Available

  € 2,77

  Add to cart

3 CDI Ignition BOX 639794 No longer available

• 639794 CDI Ignition BOX
  No longer available

4 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 · Quantity needed: 2 Available

  € 1,48

  Add to cart

6 Ignition coil Available 58083R

•

  Ignition Coil Piaggio Group · 58083R Available

  € 48,25

  Add to cart

7 Spark plug prot.collar 8282106 No longer available

• 8282106 Spark plug prot.collar
  No longer available

8 Spark plug cap Available 293845

•

  Spark Plug Connector Piaggio Group · 293845 Available

  € 27,37

  Add to cart

9 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 Available

  € 0,99

  Add to cart

10 Washer Available 012528

•

  Washer Piaggio Group · 012528 Available

  € 1,44

  Add to cart

11 Electric pump control device Available 640333

•

  Control unit Piaggio Group · 640333 Available

  € 55,02

  Add to cart

12 Screw Available 031091

•

  Hexagon Screw M6x22 Piaggio Group · 031091 Available

  € 0,99

  Add to cart

14 Cable harness support bracket Backorder 639419

•

  Bracket Piaggio Group · 639419 Backorder

  € 5,34

  Add to cart

15 Screw Available 484123

•

  Flanged Screw Piaggio Group · 484123 Available

  € 0,99

  Add to cart

16 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 Available

  € 0,99

  Add to cart

17 Control unit support bracket Available 949384

•

  Bracket Piaggio Group · 949384 Available

  € 11,18

  Add to cart

19 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart
