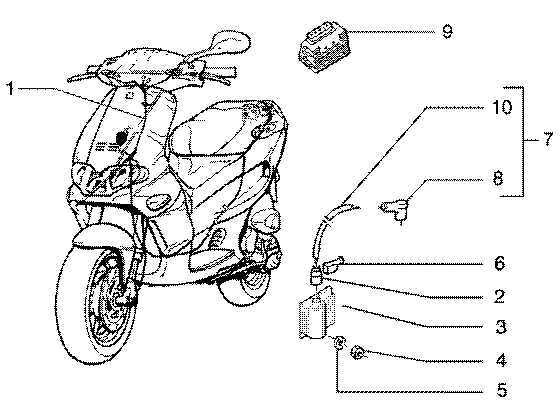

Exploded view — Electrical Devices

Products

1 Main wiring harness 583896 No longer available

• 583896 Main wiring harness
  No longer available

2 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

3 CDI unit (2t) Available 58095R

•

  Ignition Coil Piaggio Group · 58095R Available

  € 67,76

  Add to cart

4 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 · Quantity needed: 2 Available

  € 0,99

  Add to cart

5 Washer 016686 No longer available

• 016686 Washer Quantity needed: 2
  No longer available

6 Cap Available 255256

•

  Insulating Cover CDI Piaggio Group · 255256 Available

  € 5,08

  Add to cart

8 Spark plug cap Available 825186

•

  Spark Plug Connector Piaggio Group · 825186 Available

  € 29,05

  Add to cart

9 Voltage regulator Available 58096R

•

  Regulator, with flasher relay Piaggio Group · 58096R Available

  € 82,72

  Add to cart

10 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

11 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 · Quantity needed: 2 Available

  € 1,48

  Add to cart

12 Main wiring harness 581228 No longer available

• 581228 Main wiring harness
  No longer available
