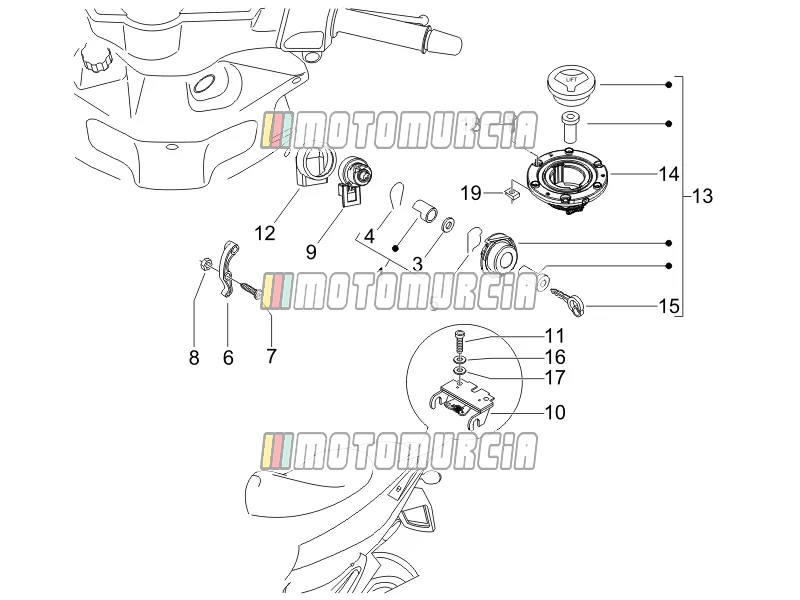

Exploded view — Locks

Products

1 Complete lock block Available 1B006291

•

  Lock Bolt Piaggio Group · 1B006291 Available · Shipped in 3–5 working days

  € 33,92

  Add to cart

3 Flat washer Available 298594

•

  Washer Piaggio Group · 298594 Available · Shipped in 3–5 working days

  € 1,80

  Add to cart

4 Cylinder retainer spring Available 298838

•

  Spring Piaggio Group · 298838 Available · Shipped in 3–5 working days

  € 2,26

  Add to cart

5 Spring Available 253937

•

  Wire Tensioning Spring Piaggio Group · 253937 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

6 Pawl Available 299902

•

  Lever Piaggio Group · 299902 Available · Shipped in 3–5 working days

  € 2,27

  Add to cart

7 Screw Available 299972

•

  Screw M4 Piaggio Group · 299972 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

8 Nut Available 577620

•

  Standard nut Piaggio Group · 577620 Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

9 Key switch Available 1D002436

•

  Ignition switch Piaggio Group · 1D002436 Available · Shipped in 3–5 working days

  € 20,61

  Add to cart

10 Saddle/flap tightening Available CM023704

•

  Lock Mounting Piaggio Group · CM023704 Available · Shipped in 3–5 working days

  € 28,29

  Add to cart

11 Screw Available B016777

• • ABS version


  Flanged Screw M6x16 Piaggio Group · B016777 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

12 2 - Commutator cap Available 582041

•

  Covering Cap Piaggio Group · 582041 Available · Shipped in 3–5 working days

  € 2,73

  Add to cart

13 Lock kit Available 9496115

• 9496115 Lock kit


  Lock set including gas cap Piaggio Group · 949611 ↻ Replaces 9496115, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 73,31

  Add to cart

14 Fuel tank filler cap Available 959465

•

  Tank Nozzle Piaggio Group · 959465 Available · Shipped in 3–5 working days

  € 62,65

  Add to cart

15 Hewn key Available 624321

•

  Key Blank Piaggio Group · 624321 Available · Shipped in 3–5 working days

  € 28,44

  Add to cart

16 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

17 Washer Available 013880

• • Indonesia
  • Taiwan


  Washer 6,5x16x1,5 mm Piaggio Group · 013880 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

18 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

19 Clip nuts Available CM017409

•

  Sheet nut Piaggio Group · CM017409 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart
