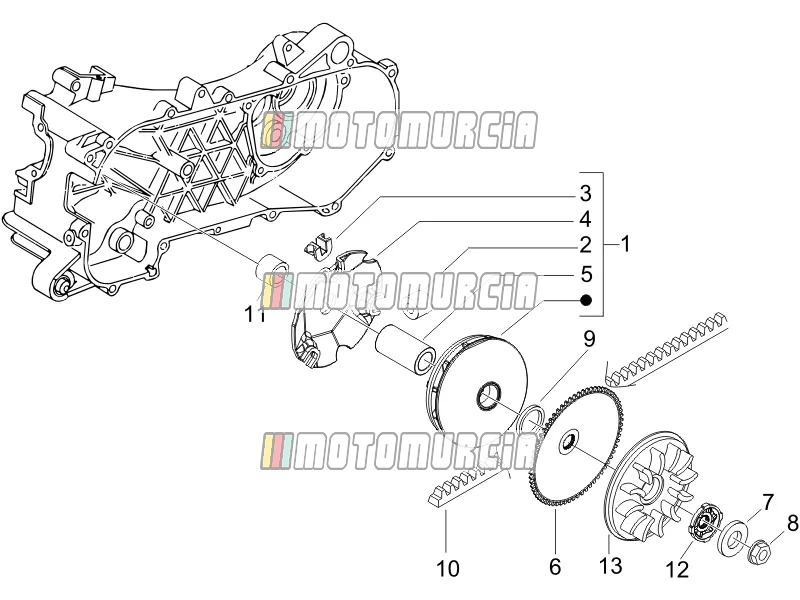

Exploded view — Driving Pulley

Products

1 Variator (19x15.5 - 6,4g) Available CM110301

•

  Variator with 6 rollers Piaggio Group · CM110301 Available

  € 76,07

  Add to cart

3 Variator slider Available 289931

•

  Slide Piaggio Group · 289931 · Quantity needed: 3 Available

  € 1,23

  Add to cart

4 Roller housing back plate Available 480227

•

  Calotte Piaggio Group · 480227 Available

  € 15,60

  Add to cart

5 Spacer Available 480230

•

  Converter Hub Piaggio Group · 480230 Available

  € 38,19

  Add to cart

6 V-Belt Pulley Available 479561

•

  Toothed Pulley Wheel Piaggio Group · 479561 Available

  € 28,70

  Add to cart

7 Washer Available 265300

•

  Washer Piaggio Group · 265300 Available

  € 1,45

  Add to cart

8 Flanged nut M10x1,25 Available 289519

•

  Flywheel nut M10x1.25 Piaggio Group · 289519 · Quantity needed: 2 Available

  € 1,52

  Add to cart

9 Spacer Available CM100615

•

  Spacer Ring 25x20x6,0 mm Piaggio Group · CM100615 Available

  € 3,42

  Add to cart

10 V-Belt Available 436864

•

  V-Belt Piaggio Group · 436864 Available

  € 29,50

  Add to cart

11 Spacer Available 479495

•

  Spacer Ring Piaggio Group · 479495 Available

  € 6,55

  Add to cart

12 Teethed bush Available 8770756

•

  Star disk Piaggio Group · 8770756 Available

  € 17,84

  Add to cart

13 Fan Available 845611

•

  Fan Wheel Piaggio Group · 845611 Available

  € 6,26

  Add to cart
