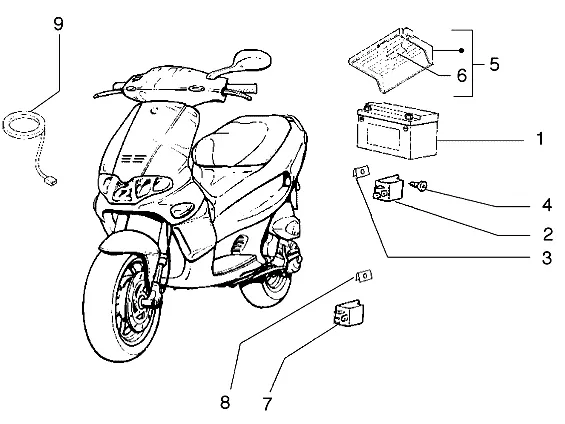

Exploded view — Electrical Devices

‹ Back to model

Gilera Runner VX 2004–2005

Gilera Runner VX 2004–2005

Electrical Devices

Products

1 Battery 497629 No longer available

497629 Battery
No longer available

2 Relay - starter (12V 30A) Available 58246R

Ignition Relay 12 V, 30 A Piaggio Group · 58246R Available

€ 9,60

4 Screw Available 259349

Screw 4,2x13 mm Piaggio Group · 259349 Available

€ 0,99

5 Battery cover Available 576170

Battery Cover Piaggio Group · 576170 Available

€ 23,39

6 Damper Available 297446

Buffer Piaggio Group · 297446 Available

€ 4,78

7 Relay - starter Available 58115R

Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

€ 24,91

8 Clip nuts Available CM017409

Sheet nut Piaggio Group · CM017409 Available

€ 1,48

9 Immobilizer antenna Available 1D003415R

Aerial Immobiliser APAC (Asia) Piaggio Group · 1D003415R Available

€ 42,02
