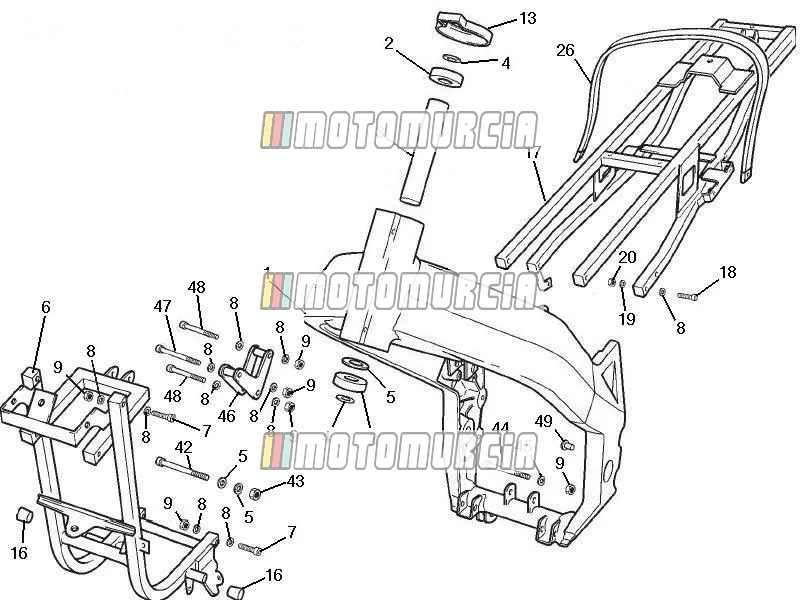

Exploded view — Frame/bodywork

‹ Back to model

Gilera SC 125 2007

Products

Position: 1 2 3 4 5 6 7 8 9 13 16 17 18 19 20 26 42 43 44 45 46 47 48 49

1 FRAME 00H01981601 No longer available

00H01981601 FRAME
No longer available

2 Steering bearing Available 00000056205

- Year of manufacture: 2011
Steering head bearing 6205, 25x52x15 mm Piaggio Group · 00000056205 Available · Shipped in 3–5 working days

€ 13,82

3 Pipe Backorder 00H06300401

Clip On Piaggio Group · 00H06300401 Backorder · Shipped in 2–4 weeks

€ 13,39

4 STEERING STUD WASHER 35X25X1 G 00H02001721 No longer available

00H02001721 STEERING STUD WASHER 35X25X1 G
No longer available

5 Washer Available 00402060001

- Year of manufacture: 2011
Shim Ø 6,00 mm Piaggio Group · 00402060001 Available · Shipped in 3–5 working days

€ 1,48

6 FRONT FRAME 00H00109941 No longer available

00H00109941 FRONT FRAME
No longer available

7 Screw (M8 125x45) Available 00002084514

Screw M8 Piaggio Group · 00002084514 Available · Shipped in 3–5 working days

€ 2,77

8 Washer Available 00G00803101

Washer Piaggio Group · 00G00803101 Available · Shipped in 3–5 working days

€ 1,72

9 Nut Available 00026008001

- Year of manufacture: 2012
Standard nut Piaggio Group · 00026008001 Available · Shipped in 3–5 working days

€ 2,69

13 Cover Available 00H00203761

Screw Plug Piaggio Group · 00H00203761 Available · Shipped in 3–5 working days

€ 5,94

16 Cover Available 00H01504301

Screw Plug Piaggio Group · 00H01504301 Available · Shipped in 3–5 working days

€ 1,95

17 Saddle support Backorder 00H00108341A

Frame rear Piaggio Group · 00H00108341A Backorder · Shipped in 2–4 weeks

€ 197,62

18 Screw 00004184001 No longer available

00004184001 Screw
No longer available

19 Washer Available 00000033080

Washer Piaggio Group · 00000033080 Available · Shipped in 3–5 working days

€ 1,44

20 Nut Available 00023108000

- Mounting type B
- Year of manufacture: 2011
Standard nut M8 Piaggio Group · 00023108000 Available · Shipped in 3–5 working days

€ 5,67

26 Handle Backorder 00H04901731

Grab Handle Piaggio Group · 00H04901731 Backorder · Shipped in 2–4 weeks

€ 38,21

42 Screw 00011101302 No longer available

00011101302 Screw
No longer available

43 Nut Available 002440

- Old version
Standard nut M10 Piaggio Group · 002440 Available · Shipped in 3–5 working days

€ 1,11

44 TORN.C/ALL.8M125X85 DIN912 12.9 DAC 00002088014 No longer available

00002088014 TORN.C/ALL.8M125X85 DIN912 12.9 DAC
No longer available

45 Washer Available 00402080001

- Mounting type B
- Year of manufacture: 2011
Shim Ø 8,00 mm Piaggio Group · 00402080001 Available · Shipped in 3–5 working days

€ 0,99

46 SUPPORT 00H04400651 No longer available

00H04400651 SUPPORT
No longer available

47 Screw 8M125X65 00002086531 No longer available

00002086531 Screw 8M125X65
No longer available

48 Screw Available 00002085531

- Year of manufacture: 2009
Screw M8 Piaggio Group · 00002085531 Available · Shipped in 3–5 working days

€ 5,60

49 CAP 00H01802751 No longer available

00H01802751 CAP
No longer available

More drawings of this model

View all →
