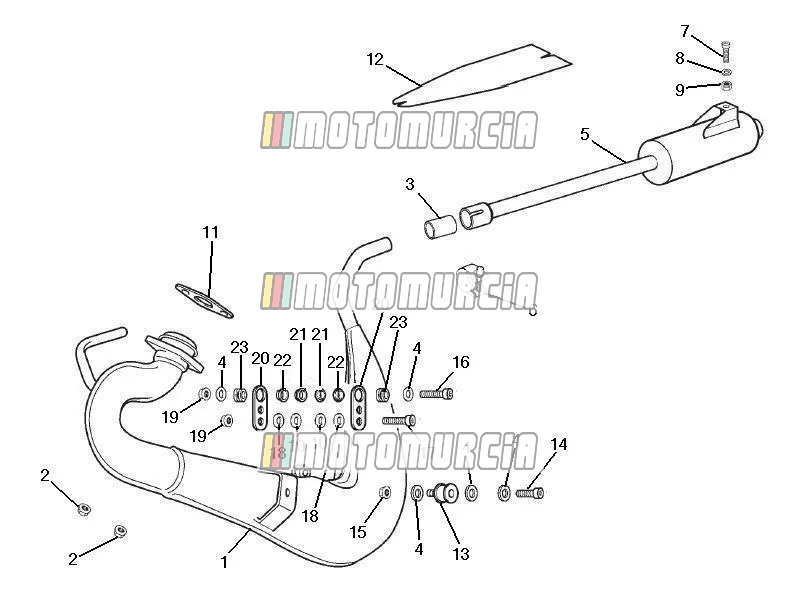

Exploded view — Silencer

‹ Back to model

Gilera SC 125 2007

Products

Position: 1 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 20 21 22 23

1 SCTO.TUBO-ESCAPE 00H03444601 No longer available

00H03444601 SCTO.TUBO-ESCAPE
No longer available

3 Exhaust gasket 00H03405321 No longer available

00H03405321 Exhaust gasket
No longer available

4 Washer Available 00402080001

Shim Ø 8,00 mm Piaggio Group · 00402080001 · Quantity needed: 2 Available

€ 0,99

5 EXHAUST TANK 00H03437411 No longer available

00H03437411 EXHAUST TANK
No longer available

6 Clamp Available 654184

Hose clamp 25x35 mm Piaggio Group · 654184 Available

€ 12,93

7 Screw Available 00000004845

Allen screw Piaggio Group · 00000004845 Available

€ 3,19

9 Nut Available 00262080022

Standard nut M8 Piaggio Group · 00262080022 Available

€ 1,48

10 Washer 00H04201361 No longer available

00H04201361 Washer
No longer available

11 Exhaust gasket 00M12502117 No longer available

00M12502117 Exhaust gasket
No longer available

12 Heat protection 00H06300901 No longer available

00H06300901 Heat protection
No longer available

13 Silent-block Backorder 00H02202731

Silentblock Piaggio Group · 00H02202731 Backorder

€ 50,32

14 ALLEN SCREW 8M125X15 00000004815 No longer available

00000004815 ALLEN SCREW 8M125X15
No longer available

15 Nut Available 00026008001

Standard nut Piaggio Group · 00026008001 Available

€ 2,69

16 Screw 00002084011 No longer available

00002084011 Screw
No longer available

17 Screw (M8 125x45) Available 00002084514

Screw M8 Piaggio Group · 00002084514 Available

€ 2,77

18 Washer Available 00G00803101

Washer Piaggio Group · 00G00803101 Available

€ 1,72

20 PLATE 00H01504551 No longer available

00H01504551 PLATE
No longer available

21 RING NUT 00H01501471 No longer available

00H01501471 RING NUT
No longer available

22 RING NUT 00H01502471 No longer available

00H01502471 RING NUT
No longer available

23 Silent-block Available 00H00403581

Vibrations Damper Piaggio Group · 00H00403581 Available

€ 5,80
