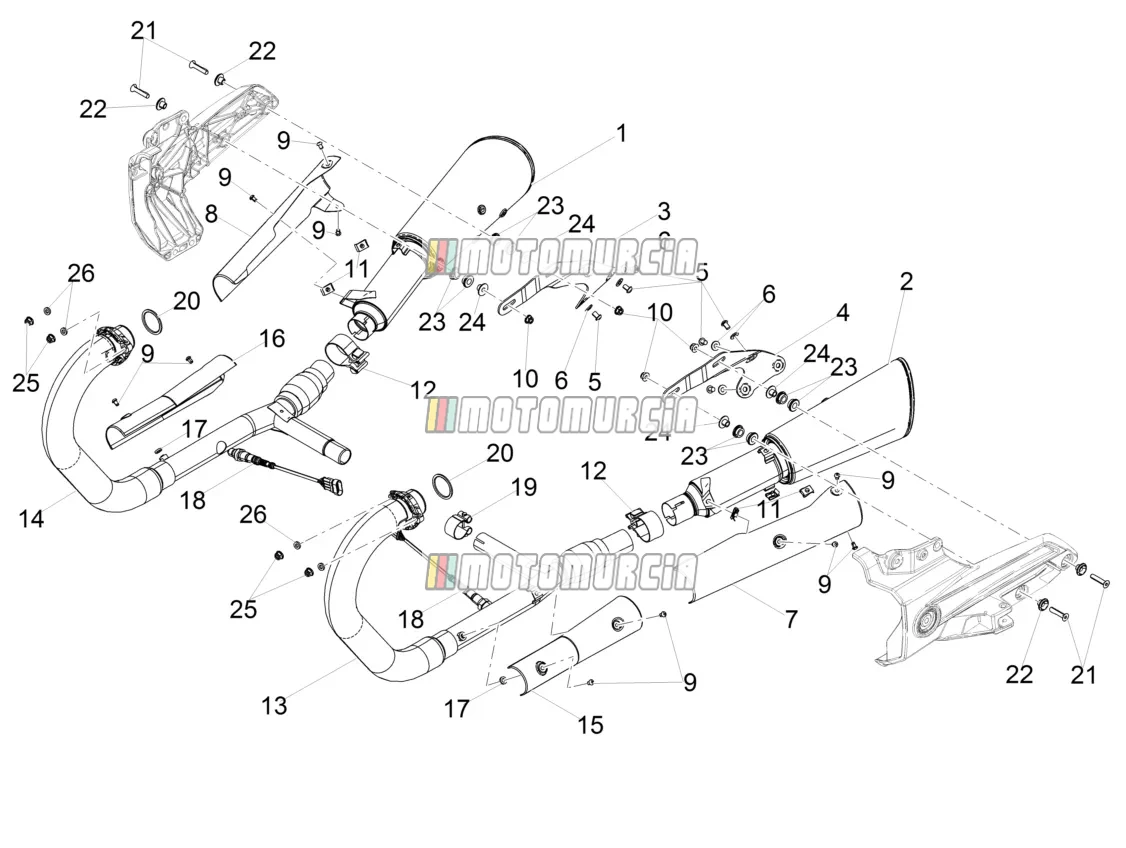

Exploded view — Exhaust System
‹ Back to model
Moto Guzzi Audace 1400 E4 ABS 2016
Products
1 RH silencer Backorder
-
Exhaust Piaggio Group · 2B001358 Backorder · Shipped in 2–4 weeks€ 1.066,34
2 LH silencer Backorder
-
Exhaust Piaggio Group · 2B001150 Backorder · Shipped in 2–4 weeks€ 1.066,34
3 Exhaust pipe support clamp DX Available
-
Exhaust Mount right Piaggio Group · 2B000366 Available · Shipped in 3–5 working days€ 63,84
4 Exhaust pipe support clamp SX Backorder
-
Exhaust Mount left Piaggio Group · 2B000367 Backorder · Shipped in 2–4 weeks€ 63,84
5 Screw (M8x12) Available
-
Screw M8x12 Piaggio Group · AP8152055 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 14,91
6 Washer Available
-
Shim Piaggio Group · GU95008308 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 1,48
7 Silencer protection SX Backorder
-
Heat Shield left Piaggio Group · 2B001553 Backorder · Shipped in 2–4 weeks€ 90,75
8 Silencer protection DX Backorder
-
Heat Shield right Piaggio Group · 2B001554 Backorder · Shipped in 2–4 weeks€ 90,75
9 TBEI pre-impregnated screw M6x10 Available
-
Screw M6x10 Piaggio Group · 2B002143 · Quantity needed: 10 Available · Shipped in 3–5 working days€ 5,76
10 Nut Available
-
Standard nut M8 Piaggio Group · AP8152300 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,35
11 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 2,04
12 D.48 clamp Backorder
-
Clamp Piaggio Group · B063293 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 43,34
13 Exhaust manifold SX
-
2B002076 Exhaust manifold SXNo longer available
14 Exhaust manifold DX Backorder
-
2B002075 Exhaust manifold DXManifold right Piaggio Group · 2B003012 ↻ Replaces 2B002075, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 1.116,45
15 LH heat protection Backorder
-
Heat Shield left Piaggio Group · 2B001962 Backorder · Shipped in 2–4 weeks€ 145,48
16 RH heat protection Backorder
-
Heat Shield right Piaggio Group · 2B001961 Backorder · Shipped in 2–4 weeks€ 145,48
17 4 - Spacer Available
-
Spacer disc Piaggio Group · 876879 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 12,02
18 Lambda sensor Available
-
Lambda Sensor Ø 12,00 mm Piaggio Group · 584344 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 195,68
19 D.37 clamp Available
-
Clamp Piaggio Group · B063292 Available · Shipped in 3–5 working days€ 42,06
20 Exhaust gasket Available
-
Exhaust Manifold Gasket Piaggio Group · 2B002217 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 14,81
21 Coarse hexagonal countersunk screw Backorder
-
Screw Piaggio Group · B063114 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks€ 5,76
22 Bush Available
-
Sleeve Piaggio Group · 887816 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 14,77
23 Spacer (rubber) Available
-
Sleeve Piaggio Group · AP8144558 · Quantity needed: 8 Available · Shipped in 3–5 working days€ 5,90
24 Bush Available
-
Sleeve Piaggio Group · AP8121510 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 12,84
25 Flanged nut M8 Available
-
Standard nut M8 Piaggio Group · GU92660021 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 1,79
26 Washer Available
-
Shim 8,4x13x0,8 mm Piaggio Group · GU14615901 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,78
